High Quality Steel Floor Decking Cold Roll Form Forming Machine Simple Structure

Product Description

Character:semi-automatic function and synchronous coordination function with the forming machine or other production line
we can make hydraulic uncoiler according to the coil's capacity ,such as 3 tons ,5 tons ,8 tons

10 tons simple manual uncoiler
Character:its leaves can be adjusted so that can suit different inner diameter coil(508/610mm)
Thechnical Parameters

1) Dimension	1300*width 1000*height 1200mm;
2) Feeding Width	maximum 600mm;
3) Capacity	maximum 3 tons
4) Inner Diameter	508mm or 610mm
5) Working Mode	inner axis can be expanded &shrank, controlled by hand wheel;

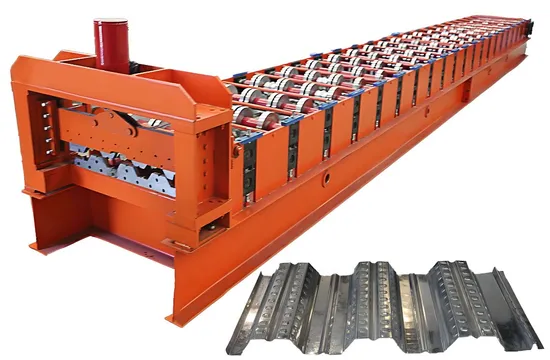

ROLL FORMING MACHINE Floor Decking Sheet

Machine's components	Uncoiler,coil sheet guiding department,pattern embossing department,main forming system,cutting department,PLC control table,hydraulic station,final product run out table.
Main parameters of the machine	Suitable raw material:galvanized steel sheet Suitable thickness:0.8-1.2mm Forming speed:about 12-15m/min Main motor power:18.5kw;(depend on final design) Hydraulic power:3kw;(depend on final design) Roller groups:at least 20 groups Weight:about 19-20tons
Final product's feature	The metal floor decking sheet produced bu this machine has high strength with big wave length.It adheres well to concrete.Used on high building,it not only saves steel mobile plate,but also reduces the weight of storey.With the same bearing capacity,it economized steel and cuts down investment accordingly.
Working flow	Uncoiling the steel coil→feeding and guiding the steel sheet→film coving→main roll forming→cutting the panel→final run out the table

Frequently Asked Questions (FAQ)
Q1: When Can I Get The Quotation?
A: We Usually Quote Within 24 Hours After We Get Your Inquiry. If You Are Very Urgent To Get The Price, Please Call Us Or Tell Us In Your Email So That We Will Regard Your Inquiry Priority.
Q2: How Can I Get A Sample To Check Your Quality?
A: After Price Confirmation, If You Need The Samples, We Will Charge For The Sample Cost. But The Sample Cost Can Be Refundable After Order Confirmation When Your Quantity Of The Order Is More About The MOQ.
Q3: Can You Do The Design For Us?
A: Yes. We Have A Professional Team that has Rich Experience In Outdoor Furniture Design And Manufacturing. Just Tell Us Your Ideas And We Will Help To Carry Out Your Ideas Into Perfect Furniture. It Does Not Matter If You Do Not Have Someone To Complete Files. Send Us High-Resolution Images, Your Logo, And Text, And Tell Us How You Would Like To Arrange Them. We Will Send You the Finished Files For Confirmation.
Q4: What About The Lead Time For Mass Production?
A: Honestly, It Depends On The Order Quantity And The Season You Place The Order. The Lead Time Of MOQ Is About 35 To 45 Days. Generally Speaking, We Suggest That You Start Inquiry Two Months Before The Date You Would Like To Get The Products in your Country.
Q5: How Do You Make Our Business Long-Term And Good Relationship?
A:1. We Keep Good Quality And Competitive Price To Ensure Our Customers Benefit ;
2. We Respect Every Customer As Our Friend And We Sincerely Do Business And Make Friends With Them, No Matter Where They Come From.
