High Precision Mini Slant Bed CNC Lathe Machine Price (CAK6130H)

Product Description

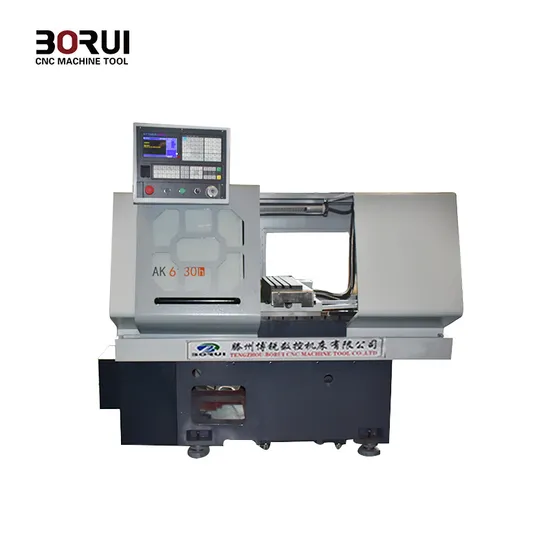

High precision Mini slant bed cnc lathe machine price (CAK6130H )

Product Application
Product main technical specification:

Parameter
SPECIFICATIONS	CAK6130h
Max. Swing Diameter over Bed	570mm
Max. Length of work piece (Distance between centers)	280mm
Max. Swing Diameter over Tool Slide	300mm
Spindle Hole	55mm
Taper of Spindle tapered hole	Morse 6#
Range of Spindle Speed	100-4000rpm
Max. Lateral Travel (X-Axis)	268mm
Max. Longitudinal Travel (Z-Axis)	234mm
Max. Vertical l Travel (Y-Axis)	155mm
Power head speed	3000r/min
Bar auto-feeding bore	42mm
Maximum drilling diameter of power head	12mm
The maximum tapping thread of the power head	M5
Vertical and horizontal movement pulse equivalent	0.001mm
Vertical and horizontal maximum rapid traverse speed	X/Z/Y : 15/20/6 m/min
Pitch Range of Thread Cutting	0.2-5mm
Main Motor	3.7KW
Power of Cooling Pump	125w
External Dimensions of Lathe	2055x1500x1720mm
Net Weight of Lathe	1750kg

Standard Accessories: 1. Centers;
2. Steady rest (750mm without this);
3. Follow rest (750mm without this);
4. Foot plate;
5. 3-jaw chuck;
6. Leading screw guard; (3000mm without this)
7. Toolpost protection;
8. Chuck protection;
9. Cooling system;
10. Work Lamp.
11. Back guard
Optional Accessories 1. Quick change toolpost
2. 2-axis Digital readout
3. 4-jaw chuck
4. Tamping attachment
The Main feature:
1.High RPM and high accuracy for the sleeve type spindle
2.Monoblock cast iron bed, large span of guide, high rigidity
3.Linear guide for two axes, rapid running speed
4.Leadscrew in middle, good stability
5.Larger cross stroke
Product Details
packing shaping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
