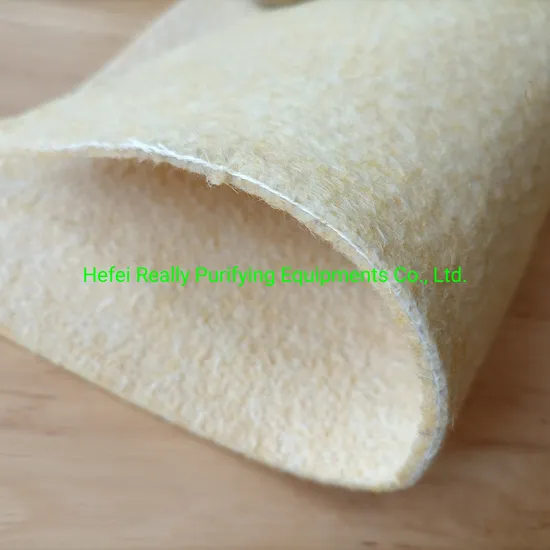

Fibreglass + Aramid + P84 Blend Filter Filtration Felt
| US$10.00-20.00 | 1,000 Square Meters (MOQ) |
Basic Info.
Model NO.
N-(P84+ARM+FG)/FG-950G
Type
Neddle Punched Filtration Felt
Hole Shape
3D
Manufacturing Method
Manufacturing Cloth
Paper Type
Neddle Punched
Transport Package
Core Inside, Bag Wrapped Outside
Specification
950GSM
Trademark
HRPuri
Origin
China
HS Code
5603949090
Production Capacity
100000sqm/Month
Packaging & Delivery
Package Size
220.00cm * 90.00cm * 90.00cm
Package Gross Weight
260.000kg
Product Description
| P84+ARM+FG Blend Felt | N-(P84+ARM+FG)/FG-950G |
| Weight per Square Meter (Normal) | 950 G ±5% |
| Material (Fiber/Scrim) | (P84+ARM+FG) /FG |
| Thickness | 2.6~3 mm |
| Air permeability | 15~20 M3/M2.Min@200Pa |
| Warp Tensile Strength | > 2600N/5×20cm |
| Weft Tensile Strength | > 2600N/5×20cm |
| Warp Elongation | < 10%/(5×20cm) |
| Weft Elongation | < 15%/(5×20cm) |
| Continuous service Temperature | < 260ºC |
| Instant (<10Min.) Temperature bears | < 280ºC |
| Liner Shrinkage@130 ºC | MD<1.5%, XD<1% |
| Mechanical Finish | Heat Setting, Singeing, Calendering |
| Chemical Finish | / |
| Mullen (PSI) | / |
| Water Repellent | / |
| Surface Electric-Resistance | / |
| Special Surface or Deep Treatment (In case client specially request to) | PTFE Membrane Laminated (PTFE-ML), or PFTE Emulsion Soaking (PTFE-ES) |
| Other Customise Requests | Acceptable depends on MOQ. |
| ARM: Aramid, FG: Fibre Glass |
