F-100L Spraying Antiseptic Shell Sphere Type Multi-Function Reactor Single-Layer Glass Reactor

Product Description

F-100L Spraying antiseptic shell Sphere Type Multi-Function Reactor single-layer glass reactor Product Description
F-100L single-layer glass reactor(Spherical type)
Product parameters
Explosion-proof speed control box displays the rotation speed and temperature of materials in the kettle, explosion-proof stirring motor, and explosion-proof heating pot control the set temperature.
Features:
1. This product is unique equipment. The whole machine adopts cold plate electrostatic spraying + stainless steel frame structure. It is compact, sturdy, non-deformable, and easy to move.
2. Explosion-proof speed control box, which displays the rotation speed and temperature of materials in the kettle, explosion-proof stirring motor, and explosion-proof heating pot to control the set temperature.
3. The mixing system adopts ceramic bearings and mechanical seals to prevent the mixing rod from wearing and chipping. It is resistant to high temperatures, wear and tear, and has good sealing effect.
4. Use PT100 temperature sensor and glass thermometer sleeve.
5. The vacuum pressure gauge displays real-time vacuum and the pointer displays.
6. Crescent stirring paddle, 304 stainless steel + PTFE stirring blade; stirring rod material is 304 stainless steel. Covered with PTFE pipe, it has high strength and strong corrosion resistance.

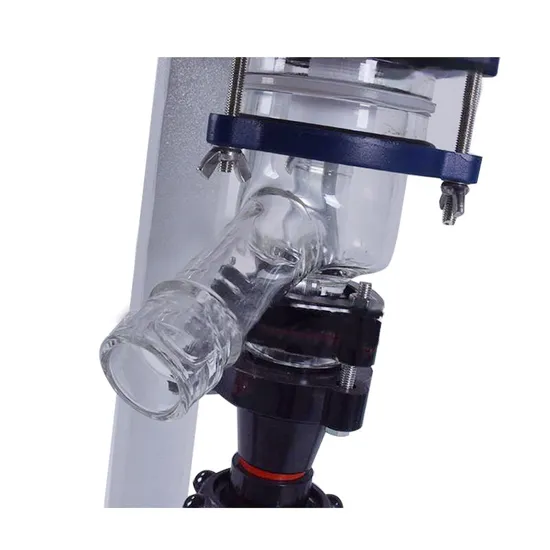

7. Glass + PTFE discharge valve, no liquid accumulation side discharge, recovery of solution is very fast.
8. The constant temperature bath pot has a built-in heating ring, and the heating bath pot has independent temperature control and high temperature control accuracy.
9. The bottom of the bath pot is equipped with a drain port for easy replacement.
10. The bottom of the machine is equipped with a universal wheel with brakes, which can be moved as a whole and is easy to operate.
Detailed Photos
Product Parameters
Specifications

Basic specification	Name	F-100L
	Glass material	GG-17
	pot shell material	Spraying antiseptic shell 640*640*1200
	Inner port material	stainless steel 550*650mm
	Moving mode	Brake type universal corner wheel
	Volume	Cylindrical type 100L
	Port No. of reactor cover	7
	Distance between discharge to floor	450mm
	Temperature range	.-80 to 250degree
	Vacuum	0.098Mpa
	Stirring speed	0-450rpm
	Stir rod diameter	15mm
	Stir power and voltage	200W1/3 220V/50Hz
	Heating power and voltage	8KW 380V/50Hz
	Overall size (mm*mm*mm)	730*630*2600
	Package size (mm*mm*mm)	1900*780*870 1.29CBM
	Gross weight(KG)	120
Configuration list	Speed display mode	Electronic stepless speed regulation
	Motor	Low speed booster motor, speed ratio 3: 1
	Speed display mode	LCD digital display
	Temperature display	digital display
	Seal	PTFE seal, ¢60 flange stir port
	Condenser	Vertical high efficiency double reflux condenser 120*640mm, standard 40#
	Reflux (distillation) device	Return bend with feeding switch, 50# ball mill port
	Drop adding device	2L Constant pressure funnel, #40 standard
	Pressure release device	standard 34# pressure release valve
	Temperature tube	standard 24#
	Solid adding (cleaning) port	¢120 flange port with PTFE cover
	Discharge	glass discharge valve, ¢80 flange port
	Vacuum display mode	Vacuum gauge
	Mixing connection	universal joint link
	Stir rod	Anchor and Spiral type, Stainless steel rod with PTFE
