1500mm Widely Used Ss Steel Coil Slitting Line Cutting Line

Product Description

Product Description
We are leading manufacturer of Coil Processing Machinery of China. We supply professional one-stop service for kinds of machines and equipments, like slitting line, cut to length line, leveling machine, etc.
We offer high quality machines and first class service to our clients, we sincerely hope our machines can make many years prosperity for our customers.
coil cutting machine in cut to length and slitting line ,

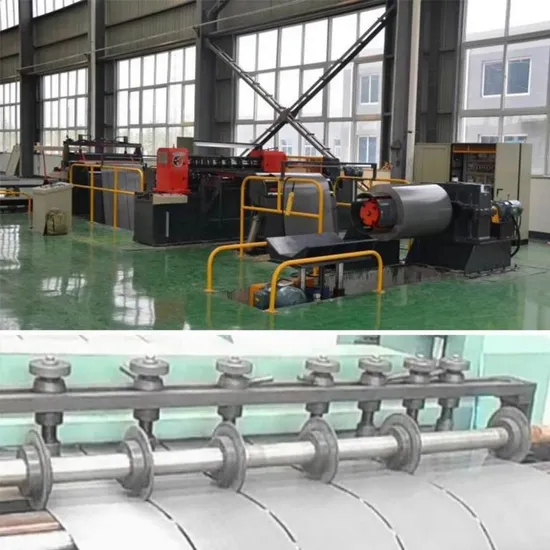

A slitting line, also called CNC steel slitting machine, is suitable for unwinding the metal coil into a strip, slitting it into narrower strips of the needed width and recoiling them for sale or the next procedure.Slitting line can be categorized into thin strip slitting line and thick strip slitting line for the thickness of the strip or copper strip slitting line, silicon steel, stainless steel, aluminum, carbon steel strip slitting line, etc for the material processed.
Components of this production line:
1.Loading coil car 2.Uncoiler 3.Straightener device 4.Pinch roll&leveler & hydraulic shearer 5.Loop pit 6.Side guide 7.Slitter 8.Transition platform & scrap winder 9.Loop pit 10.Tension station 11.Recoiler 12.Unloading coil car
Our Advantage:
1. Our guarantee time is one year, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory can send our engineer to the customer's factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.
Metal Slitting Machine is used for the metal plate decoiling ,slitting and winding into several volumes needed width coil plate. Suitanle for processing of cold rolled and hot rolled carbon steel ,silicon steel, tinplate,stainless steel and the surface of all kinds of metal plate after plating. The slitting line PLC control ,human-machine interface, according to a high degree of automation ,simple operation and reliable.
Its equipment consists of:
(1) Uncoiler (including supporting arm) (2) Slitting machine (including front guide device) (3) Waste edge machine (including inlet and outlet bridges) (4) Tension console (double tension seat + edge roller) (5) Center console (15-inch control screen) (6) Trolley Product Parameters
Standard specifications of automatic slitting line(if other size,can be customlized)

Model	Thickness(mm)	Width(mm)	No. of slitting	Tolerance(±mm/m)	Speed(m/min)	Weight(T)
2X650	0.2-2	100-650	10-30	±0.05	0-120	10
2X1250	0.2-2	500-1250	10-30	±0.05	0-120	10,15
3X1250	0.3-3	500-1250	65-30	±0.05	0-120	10,15
3X1600	0.3-3	500-1600	5-30	±0.05	0-120	15,20
4X1600	0.5-4	500-1600	5-30	±0.05	0-100	20,25
6X1600	1-6	500-1600	5-20	±0.1	0-80	20,25
8X2000	3-8	800-2000	5-15	±0.1	0-40	25,30
10X2000	3-10	800-2000	5-10	±0.1	0-40	25,30
12X2000	4-12	800-2000	5-10	±0.1	0-30	25,30
16X2200	6-16	800-2200	4-8	±0.1	0-20	30,35
