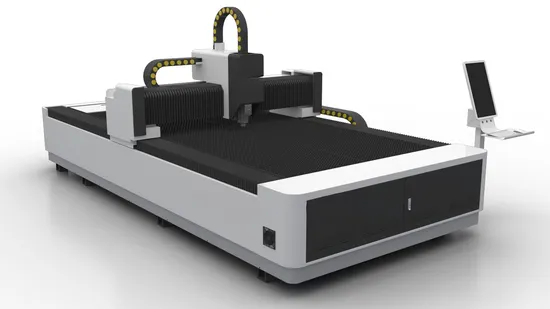

CNC Sheet Laser Cutting Machine 3015 1.5kw

Product Description

Product Description
The single-platform fiber laser cutting machine has fast speed, high precision and good quality. The surface of the cut metal sheet is smooth and flat, and it can be processed flexibly. It can design any complex cutting pattern without molds, which can effectively reduce the processing cost. No damage to the surface, environmental protection and no pollution.
1. The open workbench is easy to operate and occupies a small area.

2. It adopts Taiwan HIWIN high-precision linear guide rail to ensure the precise operation of the equipment.
3. With Raycus/MAX laser source, the maximum cutting thickness is increased-comparable to the traditional processing industry
Oxygen Cutting of Carbon Steel Shine Thickness Improvement - Faster Speed and Smaller Taper
Increased speed of stainless steel plate - less air pressure, faster speed
The speed of thin steel plate is increased - the speed is increased by more than half by replacing oxygen with nitrogen
4. Bochu system, used to control the trajectory of the laser cutting head and the distance between the laser cutting head and the object to be cut. A full-featured open-loop control system specially launched for the sheet metal processing industry.
5.Raytools auto-focusing laser head, optimized design structure: modular, easy maintenance, reduce downtime.
Multiple protective lenses: 3 pieces of protective lenses, effectively protecting the collimating and focusing lenses.
Durable: 2-way optical water cooling, effectively prolonging the continuous working time
Highly dust-proof: IP65-level dust-proof, patented protective mirror base cover, dust-proof without dead ends.
Closed-loop step-by-step auto-focus: Closed-loop stepping motor is used to effectively avoid step loss. The focusing speed is 100mm/s, and the repeatability is 1μm.
Fast piercing High-speed cutting: 16mm low carbon steel, piercing time <6 seconds, cutting speed 0.6m/min
6. Japan Yaskawa/Fuji Electric, a new type of environment-resistant servo motor, has the advantages of reliable wiring, oil resistance, and dust resistance, and can be used more safely in harsh environments; the protection level of the new type of motor is IP65; it has a new type of motor and Unlike previous products, it adopts a new oil seal technology, which can be used no matter in an oil-polluted environment or in an oil-free environment.
7. Japanese Shimpo reducer, small in size and simple in structure, can achieve small volume and large speed ratio, small return clearance, high precision, long service life, large rated output torque, large transmission speed ratio, single The speed ratio range of step reduction is 50:1---200:1. High load-carrying capacity, large number of meshes, double-wave transmission, flexible splines are made of high-strength materials, and the teeth are in surface contact.
8. Japanese SMC proportional valve has small fluid resistance, and its resistance coefficient is equal to that of a pipe section of the same length. It has also been widely used in vacuum systems; it is easy to operate and open and close quickly, and it only needs to rotate 90° from fully open to fully closed, which is convenient for long-distance control; easy to maintain, the structure of the pneumatic ball valve is simple, and the sealing ring is generally movable. It is more convenient to replace; the scope of application is wide, the diameter is as small as a few millimeters, as large as several meters, and it can be applied from high vacuum to high pressure.

9. Dust removal fan, large flow fan, sturdy and durable, has the characteristics of high efficiency, low noise, stable pressure curve, wide application range, etc., has good aerodynamic performance, stable operation, small vibration, high efficiency, and long life.
Product Parameters

Model FY-3015 Metal plate fiber laser cutting machine Rotary Attachment For sheet cutting Control System Cypcut Working Area 3000*1500mm Power Consumption ≤12KW Laser Wave Length 1080nm Working Voltage 380V, 50HZ/60HZ Working Table Sawtooth Auxiliary Gas oxygen,nitrogen,air Maximum Idle Running Speed 1400mm/s Working life of fiber module More than 100000 hours Fiber laser cutting head Raytools/Precite Liner guider system HIWIN/PMI made in Taiwan Transmit system Dual Rack & Pinion type Warranty time Whole machine for 24 months Delivery time 30 days Gross weight 2700kg Driver system Janpan Yaskawa/FUJI servo motor Working life of fiber module More than 100000 hours
