High-Quality Dairy Farm Cow Manure Smart Scraper

High-Quality Dairy Farm Cow Manure Smart Scraper

US$13,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
GFB-3-2.2
Usage
Manure Removal Equipment
Application
Cow
Power Source
Electricity
Blade Type
Straight Teeth
Computerized
Computerized
Certification
ISO9001:2008
Condition
New
Warranty
2year, Except for Wearing Part
Motor Brand
Siemens
Power
2.2kw
Reduction Ratio
1:246
Beam Specifications
100cm*100cm*8cm
Scraper Width
≤4.6m
Bridge Guide Rods
1.2m
Abrasion-Resistant Foot Material
Wear-Resistant Steel
Transport Package
Wooden Case with Iron Belts
Specification
customize
Trademark
JG
Origin
Yixian, Baoding, China
HS Code
8436990000
Production Capacity
5000pieces/Year

Packaging & Delivery

Package Size
143.00cm * 143.00cm * 180.00cm
Package Gross Weight
1498.000kg

Product Description

Product Description

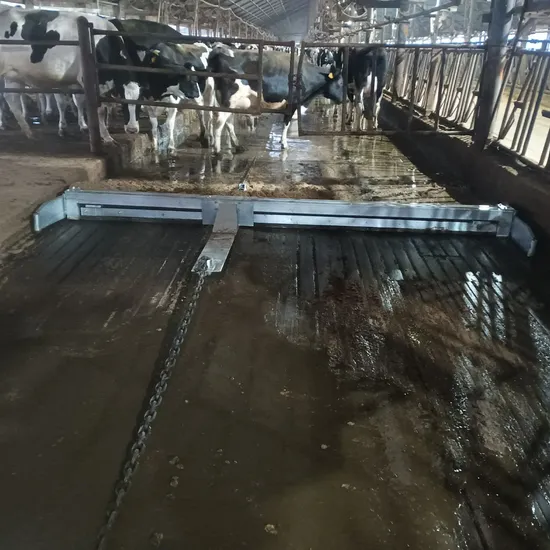

The whole machine components: motor reducer, drive unit assembly, corner system, transmission chain, manure scraper, control system, etc., the working principle is that the drive unit drags the scraper through the chain to carry out a reciprocating movement, the scraper moves forward when the manure is cleared, and the manure is not cleared when the scraper is retreated. It is suitable for manure road one-way distance > 120 m barn environment.
Our product advantages:
1. Easy to operate
2. Automatic operation, saving labor costs
3. No need to drive away the cows, always ensure the cleanliness of the cowshed
4. The equipment runs very quietly and has no impact on cows
5. Friendly to cows, intelligent recognition will not harm the cows
6. It has a long service life of 5-10 years
7. Partners: Xiajin Dairy, Vision Livestock, New Hope Group, etc
The company took the lead in developing the successful scraper automatic manure removal control system, which is currently the most advanced in China, the longest one-way manure cleaning loop, and the first scraper manure removal system that applies Hall positioning technology, and its long service life has been unanimously recognized by old users. National patented products, patent number: ZL 2014020 0322 102.0, ZL 2014 2 08597 38.9, etc. According to the length of the manure channel, the product can be divided into single-axis steering scraper manure cleaning system and three-axis steering scraper manure cleaning system.
Surface treatment: hot-dip galvanized
Motor: 2.2kw, 380V
Cleaning route length: 150m~240m
Cleaning speed: 4~6m/min
Chain: high-strength mining chain, the size of each section is 14*50mm, and the breaking load is 250kN
There is no need to be supervised when working, just press the button to turn it on, and it will automatically scrape the feces back and forth.
Product Parameters
Three-axis corner wheels that are stronger than single axles and are suitable for longer working distances
Detailed Photos
Specially designed drive wheels
Graphite-lubricated corner wheels are used

Three-axis corner wheel box
The scraper has a more scientific eccentric design
The steel plate is cut using a laser
Related products
Tips:Here are hyperlinks to related products
Screw Press Separators Milking parlor feces flushing system

Green Bedding Production System for Dairy Cows
Company Profile
Beijing Junguang Weiye Technology Co., Ltd. is the executive director unit of the Animal Husbandry Engineering Branch of the Chinese Society of Agricultural Engineering, and is a high-tech enterprise specialized in the design and construction of modern livestock farm, production and sales of breeding and manure treatment equipment. The company headquartered in Room 403, Building 9, No. 16 Chenguang East Road, Fangshan District, Beijing, the production base is located in Yixian Economic and Technological Development Zone, with an office area of 2700 square meters and a production workshop of 6500 square meters. We specializes in the production of dairy farm equipment: headlocks, barns,fans, cattle brushes, spray systems, manure scrapers, animal waste treatment systems, bedding material production systems and other livestock farm equipment.With the support of the government and customers, our breeding and manure treatment equipment sales network covers more than 10 provinces, municipalities and autonomous regions such as Shandong, Hebei, Henan, Shanxi, Heilongjiang, Inner Mongolia, Liaoning, Xinjiang, etc., and has won unanimous praise and trust from colleagues in the dairy farm industry with its low price and high quality.
The company focuses on the research and development and promotion of new products, with 24 national patented technologies, all products are in efficient, practical, durable, energy-saving and cost-saving research direction, the company will continue to improve product quality and service to meet the needs of the rapid development of dairy farm industry.

FAQ

NO. Common faults Possible factors for malfunction Solution
1 The manure passage is not cleaned thoroughly, and there is residual manure on the passage. Severe wear of wear-resistant rubber strips in contact with the ground Move the rubber strip downward, or contact the manufacturer for replacement.
Regularly check the wear of rubber strips
2 During the process of retracting the scraper, the lifting height was too low, causing retreat with manure. The scraper operates for a long time, and the wear-resistant feet are severely worn, causing the height of the support too low during the scraper retraction. Contact the manufacturer to replace the wear-resistant feet.
Regular inspection and maintenance.
3 Code: E.ocA
Overcurrent during accelerated operation
Check if there are foreign objects stuck in the corner wheel or chain, which causing overload and shutdown protection.
The motor or reducer is damaged
Inspect all parts and remove foreign objects.
Repair or replace the motor reducer.
4 Code: E.ocb
Instantaneous overcurrent during startup
5 Code: E.ocn
Overcurrent during constant speed operation
6 Code: AE DCL
DC bus under voltage
There is fault in the distribution power supply or input/output cables.
Professional personnel inspect and repair the distribution power supply;
Check and replace the input or output cables of the control box.
7 Code: AE PLI
Power input phase loss
8 Code: AE PLO
Motor output phase loss
9 Code: E HR1
Abnormal U-phase sensor
The frequency conversion module is damaged Contact the manufacturer for repair or replacement
10 Code: E HR2
Abnormal V-phase sensor
11 Code: EFOP
Inverter module protection
12 Code: EOHI
heatsink overheat
The ambient temperature of the control box is too high;
Dust or foreign objects blocking the heat dissipation holes, resulting in poor ventilation of the radiator.
Replace the installation position of the control box;
Improve the ventilation of the radiator.
13 Code: AE CFE
Communication abnormality
Loose communication cable plug between display screen and motherboard;
Damaged display screen
Check the communication cable plug;
Contact the manufacturer to replace the display screen.
Reminder: It is strictly prohibited to connect electricity from the scraper control box for other external devices, otherwise it will cause serious damage!
