Professional roller coal briquetting machine briquette pellets making machinery

Product Description

Product Description

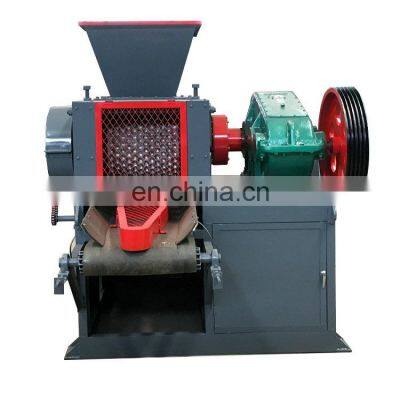

Product DescriptionRoller Briquette machine is mainly composed of motor, reducer, mainframe, belt conveyor, roller, Pressure system and electric control, etc. The material fall into the middle of two rollers by it’s own gravity effect , two roller surface evenly distributed roll socket of the same shape, two rollers’ speed is same and relative rotation , make the material into the socket and force compression, with the roller continue rotate, the ball take off on its surface tension and gravity.♥Features of Roller Briquette machine1. Nice price with ISO BV CE.2. Strong and stable structure, easy, operation and maintain easily.3. High density, high strength & high hardness because the reasonable design.4. The machine can be only main machine, or with the matched equipment.5. Final product size 25-70mm and shape can be round, pillow & square, oval, oblate shape.6. Customer in South Africa, Mexico, Israel, Russian.etc7. Different type:roller,high pressure & hydraulic type 8. Roller material can be 65Mn, 9Cr2Mo, Alloy Steel, high-chromium alloy and so on.9. Final briquettes ratio will at 98 percent because of the advanced design.We have test of the final briquettes,it will be not broken when dropped from 200cmheight,meanwhile,when it is in burning time, combustion, no smell and last longer. when it is pressed,we need add the binder into the raw material,but we guarantee the binder will not change the raw material character.The whole briquette production line will be crusher--conveyor--roller grinder--binder mixer--conveyor- briquette press machine--dryer. conveyore matched process for you according to your raw material and your place.2. Main Machine information of briquette production line Binder mixer It mainly used to agitate the liquid adhesive. The agitated adhesive maybe controlled by quantitative vessel or timely controlled by mud pump, and then it will be add to the roller rolling mixing equipment in proportion and mixed with the material. There is a tee on the both bottom of the agitation tank to connect the machine and the mud pump to quantitatively feed the roller rolling mixing equipment.Grinding mill mixer It is specially designed for the agitation machine. It has two rollers and internal & exterior scrapers which make the adhesive material well mixed in short time, when it is agitated and crushed. According to the different proportions of the material, each time adds some material and agitated 3-5 minutes. The machine has automatic discharge device, thus it will be greatly save the labors.Mesh belt dryerMesh belt dryer machine used in briquette production line to dry briquettesUnder the briquetting machine, conveyor conveys the finished briquette to the mesh belt dryer. The mesh belt dryer consist several segments and each part with 2m length, and the total length of head and tail part is 2.5m.Vertical briquette dryerFor different material briuqettes, we will choose different type dryer, mesh belt dryer is use for dry easy burn briquettes to reduce broken ratio and save place. Vertical dryer used for some mineral briquettes, it will reduce cost compare to mesh belt dryerProducts ShowTechnical ParameterPillow shape charcoal briquette machine coking coal charcoal ball press machine main technical parameter ModelReducerRoller Size (mm)Power(kw)Yield (t/h)Roller material PressureOveral size(m)XM290ZQ300Φ2905.50.8-265Mn1t/cm2.26*1.53*1.76XM360ZQ350Φ3607.52-3.565Mn1t/cm2.26*1.53*1.98XM400ZQ400Φ400114-565Mn/9Cr2Mo1t/cm2.2*1.38*1.91XM430ZQ400Φ430115-765Mn/9Cr2Mo1-2t/cm2.3*1.53*1.9XM500ZQ500Φ50018.5-306-865Mn/9Cr2Mo1-2.5t/cm2.61*1.75*2.1XM650ZQ650Φ650228-1265Mn/9Cr2Mo1-2.5t/cm3.42*2*2.2XM750ZQ750Φ75030 -75 12-1865Mn/9Cr2Mo1-2.5t/cm3.7*2.55*2.6XM850ZQ850Φ85055-90 18-2565Mn/9Cr2Mo1-2.5t/cm3.9*2.6*2.7 Packing & Delivery Standard export packing, Spare parts in wooden case, big machines loaded in container, large machines use nude packing, cover with plastic cloth. We export through Qingdao Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure transportation. Sinolion Company
