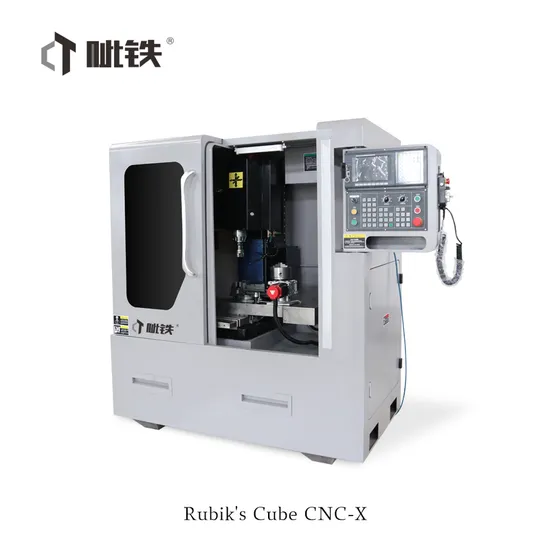

Rubik Cube-X Full Cover CNC Milling Machine Directly Sale From Factory
Basic Info.
Model NO.
Rubik Cube-X
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
1820x1140x2100mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
50
Product Description
| X axis travel | 350mm |
| Y axis travel | 160mm |
| Z axis travel | 400mm |
| Spindle nose to table distance | 476.4mm |
| Spindle center to column distance | 161mm |
| Worktable size | 600X163mm |
| Main motor | 3KW |
| Spindle speed | 18000/min |
| Coolant system | liuquid cooling |
| Change tool way | Pnumetic |
| Spindle taper | BT30 |
| ATC Type | Umbrella type |
| Capacity of ATC | 8T |
| Air compressor pressure | 12L |
| Lubricating pump capacity | 1L |
| Working light | 10W |
| Cooling pump | 40W |
| Controller system | after1500MDC-4 |
| XY axis servo motor torque | 2. 4N.M |
| Z axis servo motor torque | 4N.M |
| XYZ fast moving speed. | 8 |
| XY Linear guideway | ( Taiwan HIWIN ) 15mm |
| Z linear guideway | ( Taiwan HIWIN ) 20mm |
| X axis ball leadscrew | ( Taiwan TBI ) 1605 |
| Y7 axis ball leadscrew | ( Taiwan TBl ) 2005 |
