S. S. Precision Electronic Platform Scale

Product Description

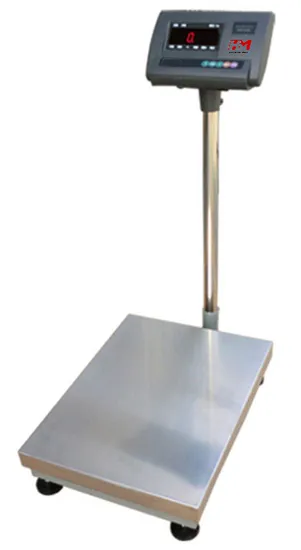

Balance & Scale HM L-SC series S.S. Precision Electronic Platform Scale
Usage: Digital scales are electronic weighing devices using modern sensor technology, electronics and computer technology; digital scales are fast, accurate, and more reliable compared to mechanical scales so that more in line with the needs of legal metrology management and industrial process control applications.
Features: digital scales are fast, accurate, and more reliable compared to mechanical scales.
Technical parameters:
-- SUS304 stainless steel frame and platform;
-- RS-232C interface;
-- Max. capacity: 60kg / 150kg;
-- Allowable error: 5g /10g. HM L-BA-I/II Precision Analytical Electronic Balance
Usage: To measure small amounts of substances to the highest degree of accuracy.
Working principle: When the object is placed in the pan, the pressure applied to the sensor, the sensor is deformed, so that the impedance changes, and changes with the excitation voltage, the output analog signal of a change. The signal is amplified by the amplifier output to the ADC. Facilitate the processing of converting the digital signal output to CPU operation control. CPU keyboard commands, and procedures based on this kind of output to the monitor.
Features: A high quality laboratory analysis balance, high precision, weighing express, accurate, reliable and functional.
Technical parameters:
--RS-232C interface;
--Max. capacity: 210g / 510g;
--Readable: 0.1mg / 1mg.
HM L-BA-III Precision Electronic Balance
Usage: To measure small amounts of substances to the higher degree of accuracy.
Working principle: When the object is placed in the pan, the pressure applied to the sensor, the sensor is deformed, so that the impedance changes, and changes with the excitation voltage, the output analog signal of a change. The signal is amplified by the amplifier output to the ADC. Facilitate the processing of converting the digital signal output to CPU operation control. CPU keyboard commands, and procedures based on this kind of output to the monitor.
Features: free installation, high precision, weighing express, accurate, reliable and functional.
Technical parameters:
--RS-232C interface;
--Max. capacity: 3200g;
--Readable: 0.01g.
Sample Pre-processing Equipment
HM L-SR-A Magnetic Stirrer
Usage: It is used for stirring the non-viscous liquids for biology, medicine, chemical industry, environmental protection and other industries.
Features: High automation. Easy operation. Velocity can be preset and controlled in highly accurate and sensitive steps.
Technical parameters:
--Velocity can be preset and controlled: 200~1000 rpm;
--Max. capacity: 1000ml.
Testing & Analytical Instruments HM L-TT-DI series Disintegration Tester
Usage:To detect disintegration of solid dosage in prescriptive conditions.
Features: Adopts imported stainless steel, including lifting nacelles, hanger rod, etc. Automatically and intelligently control the temperature, time and nacelle trip frequency. The preset and real-time data can be displayed alternately in time. Automation: auto-test, auto-diagnose, auto-alarm
Technical parameters:
--Temperature: preset range 20-45ºC;
--controlling accuracy ±0.5ºC;
--Single test station / Double test stations / Three test stations.
HM L-TT-H series Hardness Tester
Usage:To detect breaking hardness of tablet.
Features: High-precision pressure sensor, digital display. Auto-display, auto-hold and auto-memory. Auto-reset, and automatic loop test; Automation: auto-test, auto-diagnose, auto-alarm.
Technical parameters:
--Test range: 0-20kgf.
--Test accuracy: ±0.05kgf.
--Tablet diameter range: ≤ 40mm.
HM L-TT-M Multifunction Tablet Tester
Usage: To test hardness, friability, dissolution and disintegration of tablet.
Features: Reasonable structural design. Stable performance, easy to operate. Accurate and reliable detection data.
Technical parameters:
--Hardness testing: 0~200N, ±5N ;
--Friability testing: Ø286mm, 2pcs, 25rpm;
--Dissolution testing: 25~250rpm stepless speed regulating, ±1%, 6pcs cups;
--Disintegration testing: 55±1mm, 2pcs cups.
HM L-TT-DS series Tablet Dissolution Tester
Usage:To test dissolution speed and degree of tested medicament from solid preparation.
Features: Rotate basket and plasm haulm are made of imported SUS316L. Automatically and intelligently control temperature, rotary speed and time. The preset and real-time data can be displayed alternately in time. Automation: auto-test, auto-diagnose, auto-alarm
Technical parameters:
--Speed: 20-200 rpm, ±2rpm;
--Temperature: R~45.0ºC, ±0.3ºC;
--Single cup and single haulm / Three cups and three haulms in row / Six cups and six haulms in row / Eight cups and eight haulms in two rows.
HM L-TT-FR series Tablet Friability Tester
Usage:To test the friability and other physical intensity of non-coating table, for example crush intensity, etc.
Features: The cylinders are made of high quality transparency organic glass. The rotary speed and revolution of cylinders can be preset at any time; either preset or real-time value is displayed alternately in time. Automation: auto-test, auto-diagnose, auto-alarm.
Technical parameters:
--2 cylinders;
--Rotary speed: 20~90 rpm, ±1rpm;
--Rotary revolution range: 10-900 circles, ±1circle.

HM L-TT- T series Thickness tester
Usage:To measure thickness of peak and wall of capsule, diameter and thickness of various tablets, pills and so on
Features: High-accuracy test with the most precise, high-quality centigrade meter
Technical parameters:
--Test range: Tablet: 0-30mm diameter and thickness;
Capsule: 00, 0, 1, 2, 3, 4, 5 model
--Test accuracy: ±0.01mm
--Desk type / Hand held type.
HM L-TH Thaw Tester
Usage:To test thaw, softening, and solution of the suppository, vaginal tablets and other solid preparations under rated conditions.
Features: The three net frames can be synchronously turned artificially. The magnetism-pumped circular water current can heat the system evenly. Temperature and time controlled automatically. The preset and real time data can be displayed alternately in time. Automation: auto-test, auto-diagnose, auto-alarm.
Technical parameters:
--Synchronously turned artificially;
--Temperature: 37±0.5ºC.
