Factory price Industrial PTO driven drum wood chipper shredder

Product Description

Product Description
Factory price Industrial PTO driven drum wood chipper shredder
A:drum wood chipper shredder brief Introduction:
1.Drum wood chipper shredder series product with low price
is the special equipment, production of wood products are widely applied in particle board factory,
2.Because of the high density fiberboard, stubble, biomass power plant, wood factory industries and manufacturer of preparation before production units.
3.The product structure, advanced materials, cutting of high quality raw light adaptability, convenient operation and maintenance.
B:drum wood chipper shredder Raw Material:
The main raw materials are cutting wood, wood cutting, paths using (such as the branches, branches, and the slab, attrib wattle, logs, waste veneer, etc),
and it can also be used to cutting non-wood materials (such as sugar cane, reed, bamboo, etc.).
C:drum wood chipper shredder main constitute:
The drum wood chipper is made up of airframe, knife roller, and feed roller, conveyor belt, hydraulic system components. The machine adopts high strength steel welded, the whole machine is the supporting basis. Knife roller installed on two or three, four fly, fly with specialized in manufacturing, through the bolt, put pressure on the knife roller fixed on the fly.
D:drum wood chipper shredder technical specification:

Model	JX215	JX216	JX218
Feeding size(mm)	180*400	230*500	300*680
Quantity fly_cutter (piece)	2	2	2
Knife roll speed(turn)	592	590	650
Max-mum diameter of the material(mm)	160	230	300
Chipper size(mm)	30	30	30
Capacity( T)	3-4	7-8	12-15
Main motor power(kw)	45	55	110
Feeding roll motor power(kw)	2.2-3	3-4	4-5
oil pump motor power(kw)	1.5*1	1.5*1	1.5*1
Weight(kg)	2990	4070	7000
Overall dimensions(mm)	1540*1240*1020	4348*1730*1258	4670*2150*1500
Conveyor motor power(kw)		3	3

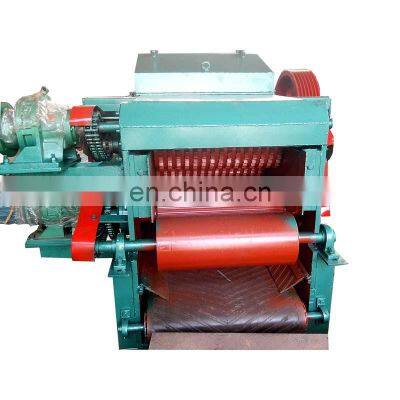

D:drum wood chipper shredder pictures:
w price
My friend, If you are interested in any type of our wood chipper shredder machine, you are welcome to contact with me freely.
Have a good day!
