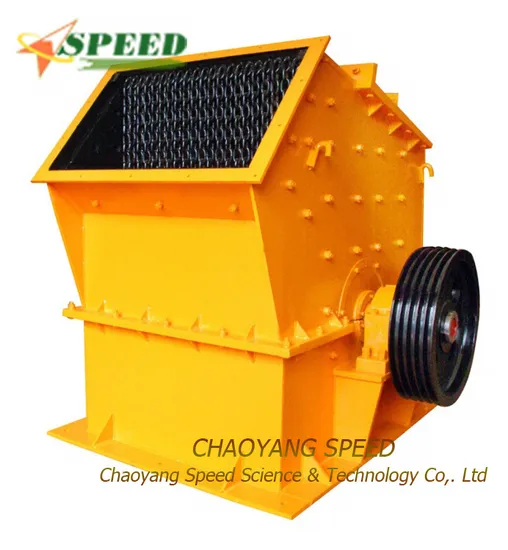

Hammer Crusher for Stone&Rock

Product Description

Hammer crusher
Instruction:
Hammer crusher is generally used to crush materials whose size is in 600-1800mm into around 25mm.Hammer crusher is mainly adopted in cement, chemistry, electricity and metallurgy industry, especially for crushing finely. Hammer crusher is mainly composed by box, roller, hammer, counterattack plate and screen etc,.
The crushed materials are generally coal, salt, chalk, plaster, brick and tile, limestone etc. It is also used to crush fiber, elastic broken wood, papers and waste. On the other hand, hammer crusher is also could replaced with cone crusher.
Working principles
The machine is used to crush normal brittle rock such as limestone, sandstone, rock paste etc. The characters of this machine are that the material can be in big size and the crushing ratio is high. This machine can crush the large piece of rock that has been crushed for only one time and then the crushed rock can be sent to the mill for grinding. As the granularity becomes smaller, the capacity of this machine will increase.
Working features
The features of this series Hammer Crusher are as follows. 1.Lower box body
2.Square steel
3.Grate
4.Hammer
5.Wheel srum
6.Hammer block
7.Hammer head bolts
8.Roof liners
9.Guaranteed quality
Parameter:

name

type

specification

drawing No.

weight (t)

design capacity(t/h)

shape dimension (mm)

main technic characters

drive device

remarks

motor

reducer

type

KW

type

speed ratio

hammer crusher

PC-64

Φ600×400

4518-9-0100

1.3

12-15

1935×1100×1122

feeding< 100mm discharging<15mm

Y200L1-6

18.5

hammer crusher

PC-86

Φ800×600

4581-2- 0000-0

2.5

18-24

2523×1525×1020

feeding< 200mm discharging<10mm

Y280M-6

55

hammer crusher

PC-0808

Φ800×800

K3514.00

5.18

15- 20

1590×1935×1390

feeding≤ 50mm discharging≤5mm

Y250M-4

55

electrical control

hammer crusher

PC-108

Φ1000×800

K354

6.5

20-50

3514×2230×1515

feeding≤ 200mm discharging≤13mm

JR126-8

110

with one cabinet

hammer crusher

PC-1010

Φ1000×1000

K358.00

7.6

40-60

2230×2220×1515

feeding grain size< 200mm discharging grain size<13mm

JR117-6

115

with one cabinet

If you want to get the price, please send us the detailed materials information, such as the hardness of raw materials, feeding size, you required output size, capacity and other special requirement. Our engineer will choose the optimum type and our salesman will send you the reasonable price. Thank you.
Instructions:
The Hammer Crusher for Stone&Rock is a machine commonly used in industries such as cement, chemistry, electricity, and metallurgy. Its primary function is to crush materials with a size ranging from 600-1800mm into particles of approximately 25mm. This crusher is particularly effective for finely crushing materials.
The Hammer Crusher consists of a box, roller, hammer, counterattack plate, and screen. It is capable of crushing various materials including coal, salt, chalk, plaster, brick, tile, limestone, and even fiber, elastic broken wood, papers, and waste. Additionally, the Hammer Crusher can be used as a replacement for a cone crusher.
The working principles of this machine involve crushing normal brittle rocks such as limestone, sandstone, and rock paste. Notably, this machine can handle large-sized materials and has a high crushing ratio. It can crush a large piece of rock in a single operation, after which the crushed rock can be sent to the mill for grinding. As the granularity decreases, the capacity of this machine increases.
For more information on the Hammer Crusher for Stone&Rock, please refer to the product name and keywords: Hammer Crusher, Stone Crusher, and Cement Crusher.
Instructions:
The Hammer Crusher is commonly utilized for crushing materials with a size ranging from 600-1800mm down to approximately 25mm. It finds its primary application in the cement, chemistry, electricity, and metallurgy industries, particularly for fine crushing purposes. The Hammer Crusher consists of a box, roller, hammer, counterattack plate, and screen, among other components.
The materials that are typically crushed by this machine include coal, salt, chalk, plaster, brick, tile, limestone, and more. Additionally, it can also be used to crush fiber, elastic broken wood, papers, and waste. Alternatively, the Hammer Crusher can be substituted with a cone crusher.
Working Principles:
This machine is designed to crush brittle rocks such as limestone, sandstone, and rock paste. It possesses the ability to handle large-sized materials and offers a high crushing ratio. The machine can effectively crush a large rock piece in a single operation, allowing the crushed rock to be sent to the mill for further grinding. As the granularity decreases, the capacity of the machine increases.
