120A MPPT Hybrid Inverter: Reliable Solar Energy Solution

120A MPPT Hybrid Inverter: Reliable Solar Energy Solution

US$300.00-320.00 1 Piece (MOQ)

Basic Info.

Model NO.
NKH IP54
Phase
Single
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Snadi/Snat
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Push-pull Type
Nature of Wave String
Sine Wave Inverter
Brand Name
Snadi Hybrid Solar Inverter
Charging
Solar and AC Charger
IP Grade
IP54
Communication
USB/RS232/WiFi/GPRS (Optional)
Wave Mode
Pure Sine Wave
Company
Manufacture
Application
School, Streets, Pasturing Areas, etc
Efficiency
99%
Controller Rated Current
120A
Mains Supply Input Voltage
85-138VAC/170-275VAC
Working Mode
DC AC Solar System
AC Output Voltage
110VAC/220VAC
Battery
Deep Cycle AGM Acid Battery\LiFePO4 Battery
Function
Parallel Connect
Transport Package
Poly-Wooden
Specification
CE: HOHE-150806004CE
Trademark
SNADI
Origin
Foshan/Guangzhou China
HS Code
8504403090
Production Capacity
10000000PCS/Month for Inverter with Controller

Packaging & Delivery

Package Size
56.00cm * 47.00cm * 24.00cm
Package Gross Weight
15.000kg

Product Description

Product Description
One-stop new energy solution provider! we are the one of the best professional off grid solar products manufacturers and whole solar energy system supplier.IP54 OFF Grid Hybrid MPPT Solar Inverter Key Features:
* Pure sine wave solar inverter
* IP54 design
* Inverter running without battery.
* One-key restoration to factory settings.
* Built-in lithium battery automatic activation.
* Bulit-in 120A MPPT solar controller
* High PV input voltage range(85-450VDC).
* Built-in anti-dusk kit for harsh environment.
* Smart battery charge design to optimize battery life.
* WIFI available for IOS and Android.
Product Parameters
GPEO-4K6L1 GPEO-6KL1 GPEO-11KL1
PV
(DC Input)
Recommended max. PV input power 4000W 6000W 11000W
Max. input voltage(Voc) 500V 500V 500V
MPPT operating voltage range 85V-450V (@85V start up) 85V-450V (@75V start up) 85V-450V (@75V start up)
Number of MPPT 1 1 2
Max. number of input strings per MPPT 1 1 1
Max. input current per MPPT 15A 27A 27/13(MAX:40A)
Max. short-circuit current per MPPT 18A 35A 37A/17.5A
Grid
(AC Input)
Max output power 5000W 11500W 16000W
Rated grid voltage 220/230/240Vac 220/230/240Vac 220/230/240Vac
Rated grid frequency 50/60Hz 50/60Hz 50/60Hz
Acceptable range 170-280Vac (For UPS) ;
90-280Vac (For Home Appliances)
170-280Vac (For UPS) ;
90-280Vac (For Home Appliances)
170-280Vac (For UPS) ;
90-280Vac (For Home Appliances)
Battery
Parameters
(Bidirection)
Battery type LiFePO 4/Lead-acid LiFePO 4/Lead-acid LiFePO 4/Lead-acid
Battery voltage range 20~30Vdc 40~60Vdc 40~60Vdc
Rate Battery Voltage 24Vdc 48Vdc 48Vdc
Max. charge/discharge current 120A/135A 120A/130A 210A/240A
BMS communication mode RS485 RS485 RS485
Back-up
Output
(AC Output)
Rated output power 3600W/3600VA 6000W/6000VA 11000W/11000VA
Rated output current 16.4A 27.3A 54.5A
Rated output voltage / Frequency 220/230/240Vac 50/60Hz 220/230/240Vac 50/60Hz 220/230/240Vac 50/60Hz

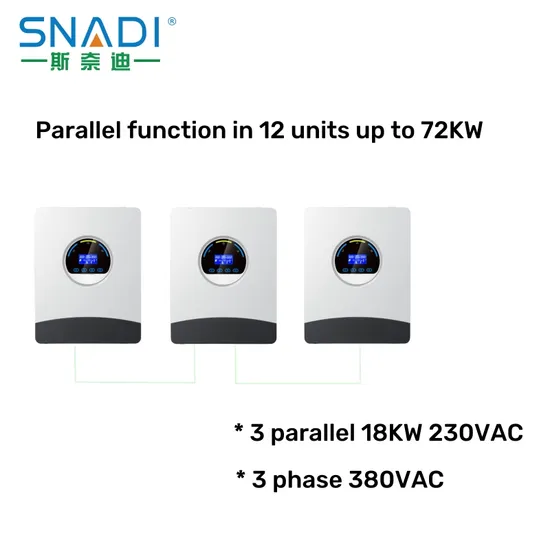

Parallel Capacity - Max. 12 Units Max. 12 Units
Surge power 7200VA 5s 12000VA 5s 22000VA 5s
THDv (@ linear load) <3% <3% <3%
Switching time 10ms typical (For UPS) 20ms typical (For Home Appliances)
Efficiency Peak efficiency 95.00% 98.00% 98.00%
Max. MPPT efficiency 99.90% 99.90% 99.90%
Protection Inner protection √ Output short-circuit protection √ Output overvoltage protection
Surge protection PV: Type III, AC: Type III
IP rating IP54
General
Parameters
Operating temperature range -10°C ~ 55°C
Relative humidity range 5%~95% 5%~95% 5%~95%
Max. operating altitude >2000m derating >2000m derating >2000m derating
Standby self-consumption <10W <10W <20W
Installation type Wall-mounted Wall-mounted Wall-mounted
Cooling mode Fan cooling Fan cooling Fan cooling
Communication RS232/RS485/Dry contact/WI-FI RS232/RS485/Dry contact/WI-FI RS232/RS485/Dry contact/WI-FI
Display LCD LCD LCD
Mechanical
Specifications
Inverter dimensions (L*W*H) (mm) 444.7*346.6*120 444.7*346.6*120 630*535*125
Net weight (kg) 9.2 12.4 25
Shipping dimensions (L*W*H) (mm) 560*465*240 560*465*240 745*650*240
Gross weight (kg) 11.4 14.6 27.2
Warranty Period 3 Years
Installation Instructions

Certifications
Company Profile
FAQ 1. How to insatll and use the product?
We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.2. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.3. How is your technical support?
We provide lifetime online support through Whatsapp/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.4. How can I make sure it's a secure transaction?
A can protect buyers' interest, all of our transation will go through a platform.As you do the payment, the money will go directly to A bank account.After we send your the items and you comfirm the detailed information, A will release us the money.5. Can you get the product customized for us?
Of course, brand name, machine color, designed unique patterns available for customization.6. How to become your agent?
Contact us through Made-in-china, we will give you the best price and look forward to your greetings.
