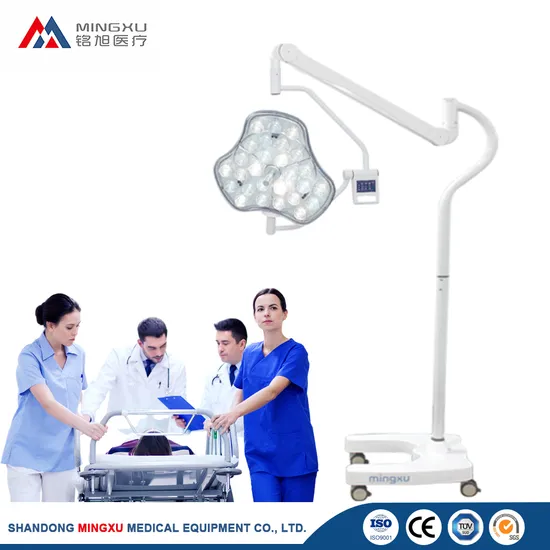

Emergency Room Mobile LED Shadowless Operating Operating Lamp Examination Light

Product Description

Product Specifications

Lamp head model	MXLED 700	MXLED500
Number of lamp beads	27	27
LED lamp brand	Imported OSRAM lamp beads	Imported OSRAM lamp beads
Center Illuminance(LUX)	50000-160000 (10 levels adjustable)	50000-130000 (10 levels adjustable)
Color Temperature(K)	3500-5500 (5levels adjustable)	3500-5500 (5 levels adjustable)
Color Rendering Index (Ra)	≥95%	≥95%
Spot diameter (mm)	130-300	130-300
Light beam depth (mm)	1300	1300
Irradiance(W/m2)	200-600	200-600
Lamp holder diameter(mm)	650	650
Shadowless %	Single board without tube 90
	Double plate without tube 80
	Single board single tube 78
	Double plate single tube 76
Supply voltage	110-230Vac/50-60Hz	110-230Vac/50-60Hz
Input Power	250VA	250VA
Average life of lamp(h)	≥60000	≥60000
Working distance(mm)	800-1200	800-1200
Optimum installation height(mm)	2.7m-3.1m, low floor height design 2.5m-2.7m

Comprehensive and Detailed Product Configuration List

Number	Name	Quantity	Remark
1	Base	1
2	Cross arm	2
3	360° Balance Arm	2
4	Lamp holder	2
5	700 lamp holder lamp beads	27
	500 lamp holder lamp beads	27
6	Handle	2	2 extra
7	Hexagon wrench s=3,s=4,s=5,s=6,s=8	1 each
8	Small flat screwdriver	1
9	Phillips screwdriver	1
10	Certificate	1
11	User Manual	1
12	Product warranty card	1

Lamp holder packaging size (wooden box)	965*925*300MM
Bracket packaging size (wooden box)	1065*215*250MM
Base packing size (wooden box)	780*610*340MM

FAQ Q: What types of surgical lights are there?
A: Depending on different needs and environments, it can be equipped with suspended double-headed lamps, suspended single-headed lamps, and vertical mobile lamps.
Q: What are the lighting modes of this surgical lamp?
A: By adjusting the number and intensity of LED lamp beads, one-button operation lighting modes such as deep cavity, superficial, normal, orthopedic, new, and gynecological can be achieved.
Q: Will the surgical shadowless lamp cause harm to the patient?
A: The surgical shadowless lamp will not cause harm to the patient. Medical surgical shadowless lamps are strictly quality controlled and designed to protect them from the risk of radiation and thermal damage. It is safe to use surgical shadowless lamps.
Q: What should be paid attention to in the maintenance of surgical shadowless lamps?
A: The surgical shadowless lamp has a long service life, but some precautions need to be taken in maintenance. For example, regularly clean and disinfect the lamps, check the stability of the lamps and brackets, etc. In addition, care should be taken to avoid damage to the lamp body or radiation risks caused by long-term use, collisions, and impacts.
