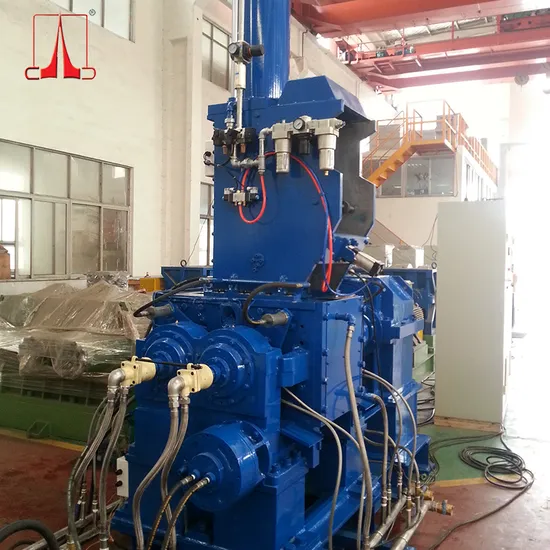

Plastic Mixer Processing Machine Lx-35L Banbury Mixer

Plastic Mixer Processing Machine Lx-35L Banbury Mixer

US$4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LX-35L
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Total Volume
190L
Fill Factor
0.6-0.8
Rotor Speed
4-40r/Min
RAM Max Pressure
0.5MPa
Main Motor Power
750kw
Weight
45t
Transport Package
Wooden and Film
Specification
190L
Trademark
LANHANG
Origin
Jiangsu
HS Code
8477800000
Production Capacity
50set/Year

Product Description

Quick Details
Certification: CE, SGS, lAF, CNAS
Warranty: 1 year
After-sales Service Provided: Overseas service center available
Rubber Machine Name: Banbury Mixing Machine
Plastic Banbury Color: Green / Blue / etc. (customize available)
Banbury Mixer Material: Cast Iron / Steel
Motor for the Internal Mixer: Frequency Control or not
Banbury Mixing Machine Rotor: Tangential
Thickness of Abrasion-resistant Alloy: 5 mm
Drive of Top Mounted Hammer: Pneumatic or Hydraumatic
Hardness of Mixer Machine Rotor: 50 HRC
Packaging Details:Delivery Detail:
Wood Pallet & Film Wrap (Banbury Mixing Machine)
90 Working Days Since Down Payment (Banbury Mixing Machine)

Specifications

Banbury Mixing Machine
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Converter Motor & Intermesh Rotor
4. Abrasion Resistan
Why Choose Banbury Mixing Machine Products from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management
Main Parameters of Our Banbury Mixing Machine:

Model

LX-75L

LX-100L

LX-120L

LX-160L

LX-255L

LX-270L

LX-410L

Chamber Volume (L)

75

100

120

160

255

270

410

Filling Coefficient

0.75

Rotor Type

Tangential

Rotor Speed (r/min)

40

40

40

40

4-40
6-60

4-40

6-60

Rotor Speed Ratio

1:1.17

Max. Capacity (T/H)

1.25

1.6

1.95

2.64

4.6

4.6

7.4

Power Supply

AC 380V 50HZ 3P (customized available)

Motor Power (Kw)

160

220

310

355

1500

1250

2x1250

Weight (T)

20

24

26

28

55

55

76

Application of Our Banbury Mixing Machine
It's suitable for tire and rubber industries insulating material and cable industries to plasticization, master-batch and final mixing, especially for mixing of radial tire compound.

Features of Our Banbury Mixing Machine
Our Mixer has international standard performances. It has reasonable design, advanced structure, high manufacturing quality, reliable operation and long service life.
All parts contact with the compounds are circulated through cooling water with large enough cooling area. It is equipped with water-temperature control. Which is the guarantee of quality for mixed various compounds.

Description of Our Banbury Mixing Machine
Driving system consists of motor and high precision hardened gearbox with drum type teeth coupling and high speed couplings. It takes many kinds of forms for changing speed: DC motor, AC motor, AC motor with converter, Hydraulic motor drive. The machine has the advantages of smooth-driving, low-noise and along service, etc. Control system adopts PLC with both manual and automatic functions with easy shift. It can realize to the control of time, temperature and energy. Signal checking, feedback as well as safety protection are provided so as to control mixing quality of compounds more effectively, to shorten assistant time and to reduce labor intensity.
Packaging & Shipping
Wood Pallet & Film Wrap ( Banbury Mixing Machine )

Our Services
Banbury Mixing Machine
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
