Blow Molding Machine Manufacturers Offer Many Discounts When Selling Automatic Plastic Bottle Blow Molding Machines Directly
Basic Info.
Model NO.
RB-90
Raw Material
PP
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
After-sales Service
Video Technical Support
Name
Plastic Bottle Blow Moulding Machine
Usage
Bottle
Color
Customer Choice
Screw Length to Diameter Ratio
25L/D
After-Sales Service Provided
Online Support
After Warranty Service
Field Maintenance for All Life
Key Selling Points
Easy to Operate
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Ma
Transport Package
Wooden Case
Specification
4.8m*2.8m*3.6m
Trademark
pairui
Origin
China
Packaging & Delivery
Package Size
520.00cm * 280.00cm * 430.00cm
Package Gross Weight
12000.000kg

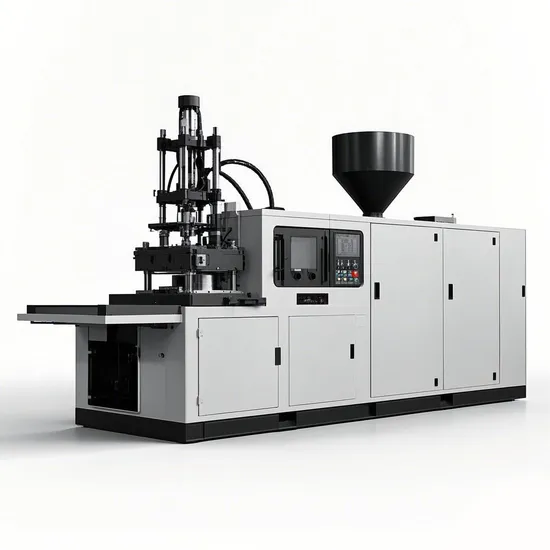

Product Description
| Basic Specifications | Unit | RB-70 | RB-80 | RB-90 |
| Maximum product volume | L | 7 | 10 | 15-20 |
| Machine dimensions | m | 3.6*2 3*2.8 | 4.2*2.6*3 | 4.8*2.8*3.6 |
| Machine weight | ton | 7.2 | 9 | 12 |
| Clamping force | KN | 220 | 360 | 380 |
| Mold spacing | mm | 230-510 | 300-680 | 300-700 |
| Mold size | mm | 480*320 | 550*420 | 650*460 |
| Maimum mold size | mm | 420*320 | 500*420 | 600*460 |
| Minimum mold thickness | mm | 240 | 300 | 325 |
| Extrusion motor power | kw | 18.5 | 22 | 37 |
| Air pressure | Mpa | 0.8 | 0.8 | 1 |
| Air displacement | Mpa | 1.2 | 1.2 | 1.2 |
| Maximum total powser | m³/min | 48 | 52 | 75 |
| Average energy consumption | KW | ≥12 | ≥18 | ≥28 |
| Screw diameter | MM | 75 | 80 | 90 |
| Screw length to diameter ratio | L/D | 25 | 25 | 25 |
| Plasticizing capacity | kg/hr | 80 | 95 | 110 |
| Screw heating power | kw | 27 | 30 | 36 |
| Hydraulic servo motor power | kw | 7.5 | 11 | 15 |
| Maximum extrusion dia meter | mm | 180 | 230 | 280 |
----------FAQ----------
Q1 :What kinds of product you supply?
A1: Blow Molding Machine, Sticker Labeling Machine, Shrink Sleeves Labeling Machine, Shrink Wrapping Machine, Injection Molding Machine, Blowing Machine, Filling Machine, PackagingMachine, Plastic Products, etc.
Q2: How to tell your enqulry?
A2. Contact us by email, phone call, fax, instant Messenger (Trade manager, Whats app, Skype) and let us know your inquiry.
03: How to choose sultable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technlcal support after we purchased your machine?
A4:-We will provide video technical support, online support.
- lf you need, we can also arrange our professional technical to go aboard to your factory, they will help and teach you how to install and maintenance the machine.
