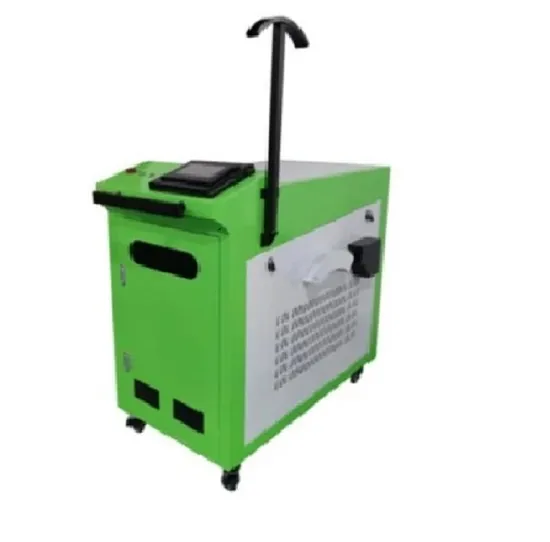

1000W/1500W/2000W Gowellde Handheld Fiber Laser Welding Machine Equipment

Product Description

Handheld Fiber Laser product description:
Advantage&Application
1 . The operation is simple, unexperienced people can also use it quickly.
2. The welding speed is super fast. A handheld laser welding machine can replace the output of 3 to 5 welders.
3 . Welding is without consumables, saving costs in production.
4 . After the welding is completed, the welding seam is smooth and white, without polishing.
5. The laser welding machine has concentrated energy, small heat reflection range, and the product is not easy to deform.
6. The laser welding machine has concentrated energy, and the welding intensity is very high.
7. The energy and power of the laser welding machine are digitally controlled, which can meet various welding requirements, such as complete penetration, penetration, spot welding, and so on.
Parameters

Model	RL-1000W
Laser Power	1000W
Laser Type	Fiber
Wavelength	1070nm
Voltage	220V±10% / 50Hz / 30A
Gross Power	<8KW
Welding Thickness	< 8mm
Welding Gap Requirements	≤0.5mm
Welding Speed	0~120 mm/s
Welding Head Configuration	Swing Welding Head + Water Cooling (optional)
Laser Operation	Continuous/Modulation
Beam Divergence Angle	≤1.2mrad/m
Welding Joint Interface	QBH
Fiber Wire Length	10m
Spot Dia	0.2-2mm Adjustable
Positioning	Red Pointer
Cooling System	Industrial Chiller
Operating Temperature	15~35 ºC

Product Details
Handheld Fiber Laser Welding Machine Sample Display
Shipment Packing
