Xiongqiu 3600mm ABC 3 Layers Co-Extrusion Inner Cooling LDPE Film Blowing Machine
| US$128,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FM3-3600S2
Maximum Folding Width of Film
3400mm
Screw Diameter
75mm X 2, 120mm X 1
Automation
Automatic
Computerized
Computerized
Machine Weight
20t
Certification
CE, ISO9001:2008
Voltage
380V 50Hz 3phase
Height
13 Meters
Transport Package
Wrap Film for Container Shipment
Trademark
Xiongqiu Plastic Machinery
Origin
Foshan, Guangdong, China
HS Code
8
Product Description
Xiongqiu 3600mm ABC 3 Layers Co-Extrusion Inner Cooling LDPE Film Blowing MachineExtruder can provide a good plastic effect and a high quality products. It is designed optimizedly in die head and the flow is designed scientificly and rationlly.
Widely used in producing composite membrane, cable film, macromolecule adhesive film, liquid film, agricultural film and shrinkable film.
| Model | FM3-1300 | FM3-1700 | FM3-2000 | FM3-2200 |
| suitable material | HDPE | |||
| thickness | 0.02--0.20mm | |||
| film width | 1200mm | 1600mm | 1900mm | 2100mm |
| max output | 80kgs/hr | 105kgs/hr | 150kgs/hr | 215kgs/hr |
Extruder
| screw diameter | Φ45mm*3 | Φ55mm*3 | Φ65mm*3 | Φ75mm*3 |
| L/D ratio | 30:1 | |||
| temp. controller | 15 zone | 15 zone | 16 zone | 16 zone |
| barrel cooling | 120w*4 | 120w*4 | 120w*6 | 120w*6 |
| driving motor | 11kw*3 | 15kw*3 | 18.5kw*3 | 30kw*3 |
Die head
| die diameter | Φ250mm | Φ350mm | Φ450mm | Φ630mm |
| air ring diameter | Φ350mm | Φ450mm | Φ550mm | Φ900mm |
| die structure | Spiral mandrel die chrome plated surface 40Cr | |||
| cooling fan | 2.2kw | 3kw | 4kw | 5.5kw |
Draging part
| take up width | 1300mm | 1700mm | 2000mm | 2200mm |
| effective width | 1200mm | 1600mm | 1900mm | 2100mm |
| take up motor | 1.5kw | 2.2kw | 2.2kw | 3.7kw |
winder
| winder width | 1300mm | 1700mm | 2000mm | 2200mm |
| effective width | 1200mm | 1600mm | 1900mm | 2100mm |
| winder motor | 1.5kw | 2.2kw | 3.7kw | 3.7kw |
| optional equipment | auto-loader device, film surface treater, air compressor, fast change net, automatic winder, double wind air ring, IBC inner cooling die head | |||

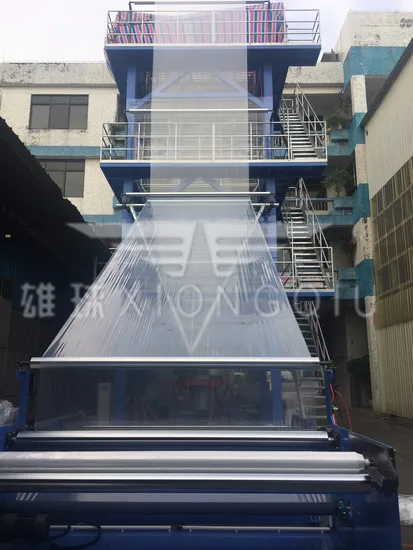

Pictures for reference:
