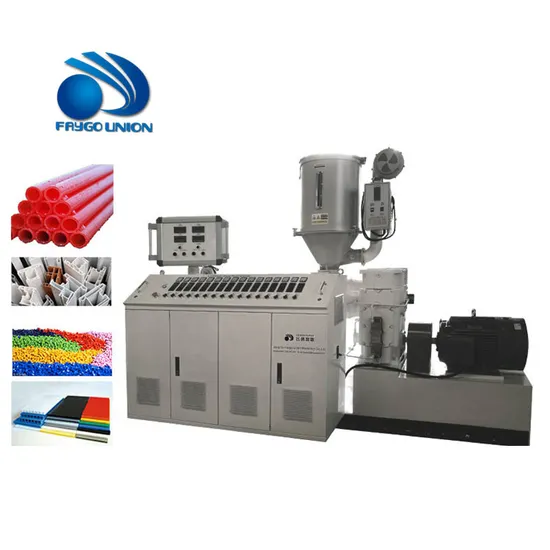

Factory Supply Plastic Single Screw Extruder for Granules Extrusion and Making HDPE PPR Pipes PVC Drainage Water Pipe WPC Profile Sheet Board Sjsz

Product Description

Product Introduction
Plastic Single Screw Extruder for Making HDPE PPR Pipes Opvc CPVC PVC Drainage Water Pipe WPC Profile Sheet Board Tube soft watering Hose
General introduction:
This Plastic PPR, PE, PVC Extruder Machine is mainly used to produce agricultural/water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. This PVC pipe extrusion line adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
PVC pipe making machine production line is consist of SJZ series conical twin screw extruder, mould, vacuum cooling tank, spray cooling tank(for big size pipe), haul-off machine, cutting machine, stacker, etc. It also need some auxiliary machinery. For example, hot&cooling mixer, crusher, milling machine, belling machine, etc. The hot&cooling mixer is necessary, others is optional
Product Parameters

Model/data	Pipe diameter	Extruder model	Speed	Max capacity
FP63	16-63mm	LSZ51/105	1-10m/min	120kg/h
FP160	75-200mm	LSZ65/132	1.5-5m/min	260kg/h
FP400	200-400mm	LSZ80/156	0.5-1.5m/min	400kg/h
FP630	400-630mm	LSZ92/188	0.1-0.8m/min	650kg/h

Product Details

Conical double-screw extruder
Feeding system: Motor Power: 1.5kw ;Force Feeder Motor Timing
Screw : Diameter of screw: 92/188mm ; Material of screw: 38CrMoAl
Barrel: Material: 38CrMoAlA; Heating mode: Cast aluminum + stainless steel covering ; Method of cooling: air blow


PVC pipe extrusion mould
Material: Made by 40Cr. Inner surface polished
Pipe Thickness Control:With 2 different pipe wall thickness
Calibration mould material:Wearable tin bronze ZQSn5-2-5
Vacuum calibration tank
Dimensions: Length: 4000mm
Vacuum pump: Hydroseal vacuum pump Power: 2.2kw x2
Water pump: Power: 3KW x 2
Tank material: Stainless steel, Limit switch; Electric cabinet with water-proof protection
Pipe Haul-off Machines
Haul-off length:1000mm
Haul-off Motor Power:0.55KW×4sets
Haul-off Speed :1.1KW×2sets Inverter
Haul-off Speed: 0.5~12 meters/min
Pipe Cutter
Cutting pipe diameter scope: 16~40mm
Saw blade Diameter: 230mm
Cutter motor power:0.75KW×2 sets
Blade Bracket Longitudinal Moving Distance: 500mm
Pipe Stacker
The length of stacker: 2 meters
Support-Board:0.8mm stainless steel board
Working Method: pneumatic, with stroke switch soleplate, to provide the fixed length cutting signal
If you have any question, please feel free to contact us
Equipment list of PVC pipe extrusion line

Compulsory devices
1		Material charge		1 set
2		Conical twin screw extruder SJ-65/132, 80/156, 92/188		1 set
3		Pipe die head		16-800mm, 1 set or several sets
4		Vacuum calibrating tank		1 set or several sets
5		Water spraying cooling tank		1 set or several sets
6		2-3-4-6-8-10-12 caterpillars hauling off machine		1 set
7		Saw cutting machine or planetary cutting machine		1 set
8		Pipe stacker-6000mm length		1 set
9		Electrical cabinet(Omron, RKC etc)		1 set
10		Spare parts		1 set
Optional Devices
1		High speed hot and cold mixer		1 set
2		Plastic crusher		1 set
3		Plastic pulverizer		1 set
4		Industrial water chiller		1 set
5		Air compressor		1 set
6		Thermocontroller for die head		1 set
7		Ink jet printer		1 set
Payment, delivery and after sales services
1	Payment terms		30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable
2	Delivery time		60 days after receipt of prepayment
3	Packing method		Wooden cases/pallets with stretching films
4	Guaranteed time		18 months for mechanical parts, 12 months for electrical parts
5	After sale service		Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable

2024 New Technology--- OPVC Pipe Production line
The PVC-O pipe making machine utilizes the latest technology to produce plastic pipes. Featuring special biaxial stretching technology, this machine significantly reduces material costs for pipe production by over 70%. As a result, it has gained increasing popularity in the market.
Performance Test: OPVC Pipe Unscathed after Car run over

Hot Sales Plastic Machine Recommend:
Automatic Pet Plastic Bottle Blow Molding Machine & PVC Sheet Extrusion Machine line & Waste Plastic PP/PE Recycling Pelletizing Line

Company Profile
Jiangsu Faygo Union Machinery is a professional manufacturer of plastic machines.
It occupied an area of 18000 square meters. With years of development,
its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person,
Faygo Plast alwasy provide customers with high quality machines.
Warmly welcome to visit our factory (next to Shanghai)!
Why choose us?
Our advantages
1.20+ years plastic machine factory and we have 20000 square meters standard workshop
2.15+ years experience engineer for the plastic machine, They can provide you with customized services
3.15+ years experience After-sales team, They have debugged and repaired 100+ production lines.
4.18 hours online sales staff, They can answer your questions within 6 hours
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
