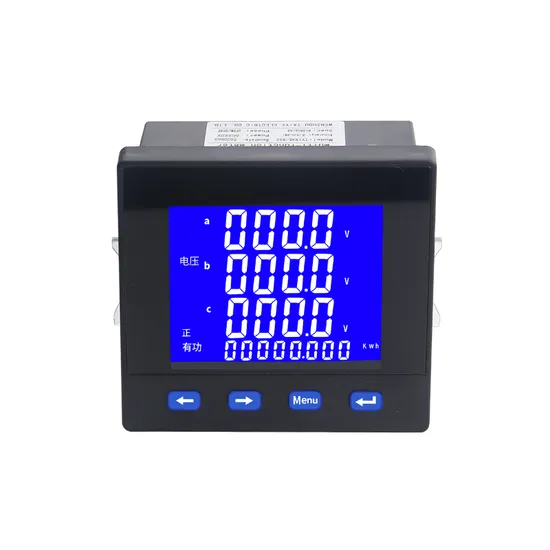

96*96 Multifunction Digital Display Energy Voltage Current Power Consumption Meter RS485 LCD Panel Energy Meter
Basic Info.
Model NO.
DB194E-9SY
Display
Digital
Installation
Direct Connected
Usage
Multi-Functional Energy Meter
Electric Equipment
Three-phase Four-wire
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Continuous Wave
Type
Energy Meter
Customized
Non-Customized
Operating Temperature
-10~50ºC
Measuring Energy Range
/
Phase
Three Phase
Display Type
Digital Only
Dimensions
96*96mm
Accuracy Class
0.5
Output Voltage
/
Current
5A 100A 150A 200A 250A 300A 400A 800A Panel Meter
Transport Package
Carton
Trademark
TAIYEDQ
Origin
Zhejiang, China
Production Capacity
5000/Month
Product Description
Product Description| Relay output, transmission output, power pulse, switch input (not included by default) If you need these functions, pay extra!!! Describe Multifunctional power meter is a kind of programmable measurement, display, digital communication Multifunctional power meters with functions such as communication and power pulse transmission and output can complete power measurement, power measurement, data display, collection and transmission, and can be widely used in substation automation, power distribution automation intelligent buildings, and internal power measurement, management, and management of enterprises. Assessment. The measurement accuracy is 0.5, realizing LED field display and remote RS-485 digital communication interface, using MODBUS-RTU communication protocol Specification Wiring: Three-phase four-wire Y34/three-phase three-wire V33 signal input Voltage Range: 400V/100V Overload: continuous: 1.2 times, instantaneous: 2 times Power consumption: <1VA Current Range: 5A/1A Overload: continuous: 1.2 times, instantaneous: 2 times Power consumption: <1VA Frequency: 40~65Hz Power supply: AC220V or AC/DC80-270V Electric energy pulse: passive optocoupler collector output, fixed pulse width 80mS±20% Communication: RS485 communication interface, physical compartment. Comply with the international standard MODBUS-RTU protocol. The communication speed is 1200~9600. Validity method N81, E81, O81 Analog output: 0/4~20mA or 0~5/30VDC transmission output, programmable setting transmission items and corresponding values Relay output: programmable remote control/alarm relay output. Capacity 5A/250VAC, 5A/250VDC. Programmable alarm power, switch input, analog input or remote control mode Telemetry switch: telemetry switch input measurement, passive dry contact input, programmable associated alarm output Measurement level: power (0.5), frequency (±0.1Hz), active energy (0.5S), reactive energy (1), analog input (0.5) Display mode: LCD Working temperature: -10~50ºC Storage temperature: -20~75ºC |
