Electric Heating Rubber Vulcanizing Autoclave Machine

Product Description

Product Description

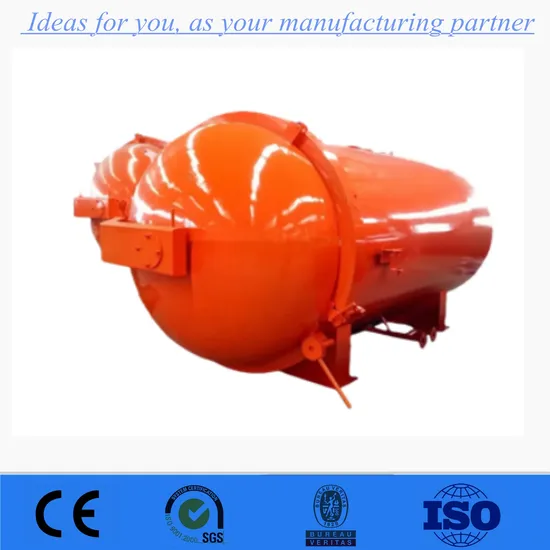

High Pressure Vulcanizer Autoclave for Rubber Vulcanization
Name : Rubber autoclave, Rubber hose autoclave,Rubber boiler, Rubber vulcanizer, Rubber vulcanizing machine.
The autoclave for tire retreading is a pressure vessel with speed open door,and openings sealed with inflatable silicone ring or internal pressure self-tight rubber pad. Mechanical or manual gearing is used to lock and open the lid, reasonable structure, convenient operation, good sealing performance, the temperature in the tank is uniform,furthermore, complete safety accessories (equipped with safety interlock device). MODEL REFERENCE

MOLD	CONTROL	DIA (mm)	LEN (mm)	MDM	PRE (Mpa)	TEM (°C)
DN1504B.3	Automatic	1500	4,000	Air	0.73~3.00	120~310
DN0206B.3		2000	6,000			120~310
DN0304B.3		3000	4,000			120~310
DN0410B.3		4000	10,000			120~310
DN0509B.3		5000	9,000			120~310
DN0610B.3		6000	10,000			120`310
1. TYPE: Electic heating , steaming for boiler , circulation oil 2. MEDIUM : air, water ,steaming, circulation oil CONTROL MANNERS : Manual ,semi-automatic and fully automatic 4. Diameter, length ,design pressure and temperature done under customers requirements .

INDUSTRY AUTOCLAVE CHARACTERS
1.Automatical MITSUBISHI control system with touch screen view panel, less workers ,
2.Insulation and steam heating automatically make low energy consumption & best power efficiency
3.Door open&close security guaranteed by chain lock system,easy operation and maintenance .
4.Detector of probes automatical control temperature,pressure and time .
5.Payment and Transportation could negotiated while business discussion .
6.Meet ASME or international standard
USAGE 1. Rubber industry vulcanization
2.Timer /wood processing for fire prevention, anti -moth,corrosion prevention, shape keeping
3.Yarn steaming for textile such as spindle heating,socks shaped
4.Modified with high pressure for bones /horns, hydrolysis of feather
5.Aluminium oxidation treatment for composite material in aircraft industry
6.Carbon fiber, laminated glass, specific rubber product
FEATURES
1. Curing the autoclave with high temperature and pressure.
2. Once the temperature and pressure be set, all operation going automatically.
3. Shell material Q345R with 50 mm aircraft grade insulation.
4. Vulcanization performance with electric heating method.
5. Air circulation with motor fans and circulation channel.
6. Evenly temperature distribution with high temperature works on the rubber terms.
7. Each group of heating tube controlled independent.
8. Voltage and frequency 380V/50Hz, or follow customer request.
PACKING&SHIPPING
Our products have standard export package, fumigated wood box, U-steel, steel frame reach to sea transportation requirement, we have our own professional shipping company, make sure the product arrived your destination safely and as soon as possible.
COMPANY INFORMATION
Qingdao Evertech Industry Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of 70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
100% Real ManufacturerMarkets:Mainly sold to Europe, America, South America, India and other countries.
Factory and certificates:
FAQ 1. What is max diameter we can do for you?
The maximum diameter which our company can make is 4.5m. And the length is up to your requirements.
2. How much capacity can you treat per tank at a time?
It is up to the diameter and length of the equipment designed by your demands.
3. Is the control system manual, semi-automatic or full-automatic?
Our basic control system is full-automatic operation system.
4. Can we install the equipment by ourselves?
Of course, we will provide you with detailed installation information.
Welcome to send me email any time.
Contact : Victoria
