Bridge Multiblade Block Stone Cutter High Efficient 9 Blade Working

Product Description

QSQ2200B, QSQ2500B, QSQ3000 Bridge Multiblades Block Cutting Machine

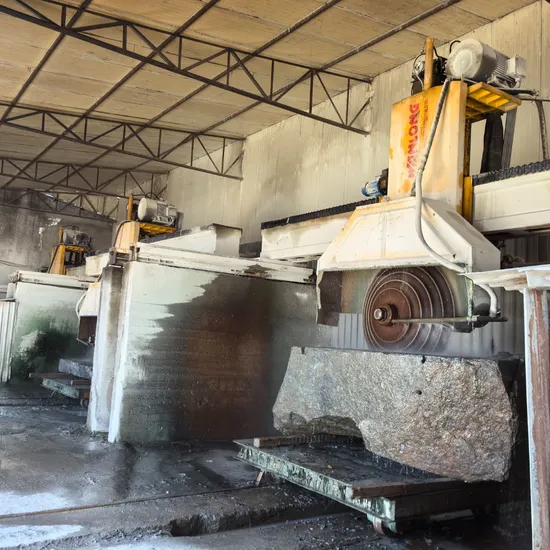

QSQ Series 4-Pillar System Bridge granite block cutting machine combines different diameters of blades working simultaneously as single column multiblade block cutter with several pcs same diameter blades. The crossbeam moves forward and backward for feeding thus the working table is not needy, but it is available upon request. Heavy duty structure, logical control system, easy operation with WANLONG blades and segments give high production, flat slabs etc. It is also flexible in modification for single blade cutting.

QSQ-2200 QSQ-2500 QSQ-3000

Max.diameter of blade	mm	2200	2500	3000
Max.No. of blades	pc	8	5	1
Recommended Blade Combination	mm	2200 2000 1800 1600 1400 1200 1000 800	2500 2000 1600 1200 800
Recommend saw blade thickness	mm	6.5	32	8.0
Main motor power	KW	45	45	37
Max.Cutting size(L x W x H)	mm	3200*1800*950	3000*1800*1100	2500*1800*1350
Overall dimensions (L x W x H)	mm	7300*3800*5500	7300*3800*5500	7300*3800*6100
Water consumption	m3/h	6	6	6
Approximate weight	Kg	10000	11000	12000

configuration
1. SIEMENS or indigenous main motor, 45KW.
2. PANASONIC PLC, PANASONIC converter, FUJI contactor
3. Encoder for X, Y, Z (left & right, up & down, and forward & backward) movement.
4. Crossbeam length 7.5 meter, Side beam length 3.7 meter
5. Equiped locking devices on side beams to avoid crossbeam shifting
6. With pulley cover for better protection
7. Adopts reductor RV130 for feeding.
8. Crossbeam size 7500x530x600mm
