SRL-Z300/600L 500/1000L 800/2000L PVC WPC Plastic Powder Hot and Cold Mixer Unit Raw Material Mixing Machine ABB Frequency Inverter
| US$1,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Structure
Vertical
Warranty
12 Months
Working Mode
Cycle Type
Usage
Heating Mixing Cooling Drying
Advantages
Long Life/High Efficiency/High Capacity
Extruder Control
by Siemens PLC Screen Touch
Electrical Components
Siemens, ABB, Omron, FUJI, etc.
Production Speed
10-15 Min Per Batch
Delivery Time
Around 40 Days
Motor Brand
Siemens
Shipment
LCL and FCL
Machine Installation
Available
Motor Drive/Inverter
Siemens/ABB Brand
Keywords
Plastic Mixer
Certification
CE, ISO9001:2008, SGS
Customized
Customized
Raw Material
PE PVC ABS PP
Transport Package
Plastic Film and Wooden Pallet
Specification
2m
Trademark
YILI
Origin
China
HS Code
84778000
Production Capacity
30 Sets/Per Month
Product Description
IntroductionHeating and cooling mixers are widely used in mixing, stirring, drying, coloring all kinds of resin plastic such as PVC,PP,PE, rubber, and chemical industries. It can also be used in dryness of ABS and polycarbonate, and mixing hydroxybenzene, aldehyde resin.
With 30 years in heating and cooling mixer industry, hot and cool mixer unit from YILI Machinery is an ideal equipment for profile and pipes with advanced design. Combined with the heating mixing technique and cooling mixing technique, the materials from hot mixer would get into cooling mixer automatically to be cooled, then the remained gas will be eliminated and agglomeration is avoid.
Technical Specification
| HEATING/COOLING MIXER UNIT (VERTICAL TYPE) | |||||||
| Model | Total Volume (L) | Effective Volume (L) | Motor power (Kw) | Main shaft speed (r/min) | Heating/Cooling method | Unload way | Weight (t) |
| SRL-Z50/100A | 50/100 | 37/70 | 7/11/7.5 | 510/1013/118 | 2KW/Water | Pneumatic | 2.8 |
| SRL-Z100/200A | 100/200 | 75/130 | 14/22/11 | 650/1300/130 | 6KW/Water | 3 | |
| SRL-Z200/500A | 200/500 | 150/320 | 30/42/11 | 484/967/110 | 6KW/Water | 3.5 | |
| SRL-Z300/600A | 300/600 | 225/384 | 40/55/11 | 480/964/100 | 9KW/Water | 3.8 | |
| SRL-Z500/1000A | 500/1000 | 375/640 | 55/75/15 | 413/830/71 | 9KW/Water | 5.8 | |
| HEATING/COOLING MIXER UNIT (HORIZONTAL TYPE) | |||||||
| Model | Total Volume (L) | Effective Volume (L) | Motor power (Kw) | Main shaft speed (r/min) | Heating/Cooling method | Unload way | Weight (t) |
| SRL-Z200/500W | 200/500 | 150/320 | 30/42/7.5 | 490/980/70 | 6KW/Water | Pneumatic | 3.5 |
| SRL-Z300/600W | 300/600 | 225/384 | 40/55/11 | 480/964/70 | 9KW/Water | 3.8 | |
| SRL-Z500/1000W | 500/1000 | 375/660 | 55/75/15 | 441/886/60 | 9KW/Water | 7.8 | |
| SRL-Z500/1600W | 500/1600 | 375/1024 | 55/75/18.5 | 441/886/51 | 9KW/Water | 8.5 | |
| SRL-Z800/2000W | 800/2000 | 560/1280 | 160/18.5 | 0-660/51 | self-frication | 9.5 | |
| SRL-Z800/2500W | 800/2500 | 560/1600 | 160/22 | 0-660/51 | 11 | ||
| SRL-Z1000/3500W | 1000/3500 | 750/2240 | 200/30 | 0-660/51 | 12 | ||
| SRL-Z800×2/4000W | 1600/4000 | 1120/2550 | 160×2/37 | 0-660/51 | 13 | ||
| SRL-Z1500/4000W | 1500/4000 | 1125/2600 | 200(280)/37 | 0-650/65 | 14 | ||
| SRL-Z2000/5000W | 2000/5000 | 1400/3250 | 315 (450)/55 | 0-850/50 | 15 | ||
| SRL-Z1500×2/6000W | 3000/6000 | 1125×2/3900 | 200×2/75 | 0-650/50 | 20 | ||
Tech Features & Advantages Absorbing advanced foreign technology and advanced PLC control system realize high automatic level and good mixing effect; Low energy consumption, excellent performance and easy maintenance; Compact structure, perfect appearance; Stainless steel material, with reasonable arrangement of pipelines; Detailed Product pictures

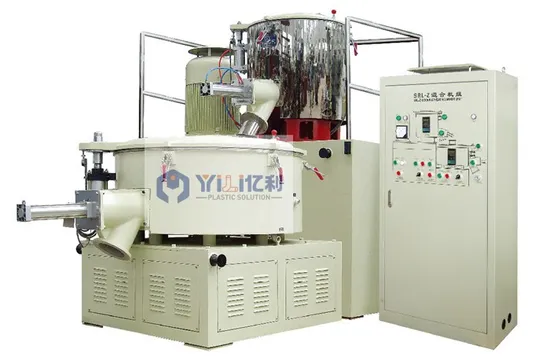

Vertical type of heating and cooling mixer unit, which normally cover from model 100/200A to 500/1000A, smaller sizes of mixer unit.
When the mixer unit comes to large capacity, the hot mixer sizes is 500L or more , the cooling mixer will choose horizontal type, which ensure larger space for better and fast cooling of material.
