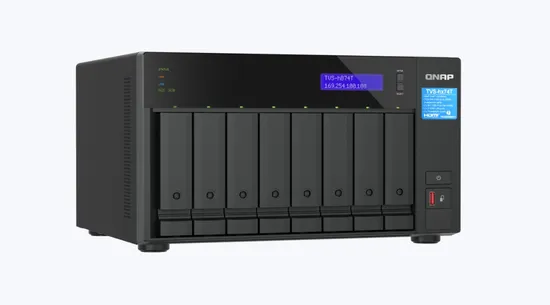

Reliable Qnap Tvs-H874t-I7-32g-Cn 8-Bay Network Attached Storage System
| US$2,500.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TVS-h874T-i7-32G-CN
Rotationl Speed
7200rpm
Installation
Internal
Interface Type
SATA
Size
Nas
Cache
64MB
SSD Cache
8GB
Interface Rate
2000MB/s
M.2 Slots
2 X M.2 2280 Pcie Gen 4 X4 Slots (Compatible with
Memory Slots
2 X SODIMM DDR4
CPU
Intel9 Sixteen-Core (8p+8e) / 24 Threads
CPU Architecture
64-Bit X86
Transport Package
320 X 230 X 28 mm
Specification
314 x 224 x 25 mm
Trademark
GETAC
Origin
China
Production Capacity
10000
Product Description
Product Parameters| Model | TVS-h874T-i7-32G |
| CPU | Intel® Core™ i7 twelve-core (8P+4E)/20 threads processor |
| CPU Architecture | 64-bit x86 |
| Graphics Processor | Intel® UHD Graphics 770 |
| Floating Point Operations | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware Accelerated Transcoding | Yes |
| System Memory | 32 GB SODIMM DDR4 (2 x 16 GB) |
| Memory Upper Limit | 64 GB (2 x 32 GB) |
| Memory Slots | 2 x SODIMM DDR4 |
| Flash | 5 GB (for dual boot operating system protection) |
| Hard Drive Bay Count | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Supported Hard Drive Types | 3.5-inch SATA hard drives, 2.5-inch SATA SSDs |
| Hot Swapping Support | Yes |
| M.2 Slots | 2 x M.2 2280 PCIe Gen 4 x4 slots (compatible with PCIe Gen 3 and above NVMe SSDs). Please check compatibility list at compatibility/. |
| SSD Cache Acceleration | Yes |
| GPU Passthrough | Yes |
| 2.5 Gigabit Ethernet Ports | 2 (2.5G/1G/100M) |
| 5 Gigabit Ethernet Ports | 1 (5G/2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card |
| Network Wake-on-LAN (WOL) | Yes |
| Jumbo Frames | Yes |
| Thunderbolt Ports | 2 (Thunderbolt™ 4) - only supports Thunderbolt connections for Windows and Mac hosts and USB storage devices. Does not support third-party Thunderbolt external storage devices. |
| PCIe Slots | Slot 1: PCIe Gen 4 x16, Slot 2: PCIe Gen 4 x4* (Slot 2 preloaded with Thunderbolt 4 AIC) |
| PCIe Card Dimensions | 185 x 131.15 x 18.76 mm / 7.28 x 5.16 x 0.74 inches |
| USB 3.2 Gen 2 (10Gbps) Ports | 1 x Type-C USB 3.2 Gen 2 10Gbps, 2 x Type-A USB 3.2 Gen 2 10Gbps |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Vertical |
| LED Indicators | HDD 1-8, Status, Network, USB ports, M.2 slots |
| LCD Display/Buttons | Yes (Power, System Reset, USB Copy) |
| Dimensions (Height x Width x Depth) | 180.2 × 329.3 × 279.6 mm |
| Dimensions Excluding Feet | (Feet height can reach up to 30mm/1.18 inches depending on model) |
| Weight (Net) | 7.34 kg |
| Weight (Total) | 8.99 kg |
| Operating Temperature | 0 - 40°C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH (non-condensing), wet bulb: 27°C (80.6°F) |
| Power Supply | 350W (PWR-PSU-350W-DT01), 100-240V |
| Power Consumption | HDD Sleep Mode: 62.668 W, Operating Mode (general): 104.35 W |
| Passed WD10EFRX Hard Drive Full Load Test | Yes |
| Fans | System Fans: 2 x 120mm, 12VDC, CPU Fan: 1 x 60mm, 12VDC |
| System Alarms | Beeper |
| Kensington Security Slot | Yes |
| Simultaneous Connections (CIFS) Limit | - |
| Memory Upper Limit | 3500 |
Packaging & Shipping
Mission-critical COTS computing thatdelivers high powered processing andreliability in operational environments.Remote Support, Asset Management,
Field Data Analysis, Workplace SafetyRailroad Management, AirportManagement, Port Management,Long-haul Delivery FleetManagement, Warehouse MaterialsHandling
FAQQ1. You are factory or trading campany?
A1: We are OEM/ODM factory specialized in all in one pc, laptop and mini pc.
Q2.What is your shipping way?
A2:We are usually ship it via DHL/UPS/Fedex//Aramex.
Q3.Can I take a sample for quality check?
A3:Of course, we support sample order for testing the quality.
Q4.Can you add logo on the products?
A4:Yes,we can. Laser print,Silk print for your choose.
Q5.Can you customize package box for us?
A5:Sure,our factory produces OEM/ODM.
Q6.How can you slove the problem if we receive the defective goods.
A6:Send us the pictures or video first time,we will send free replacement spare parts for you.
