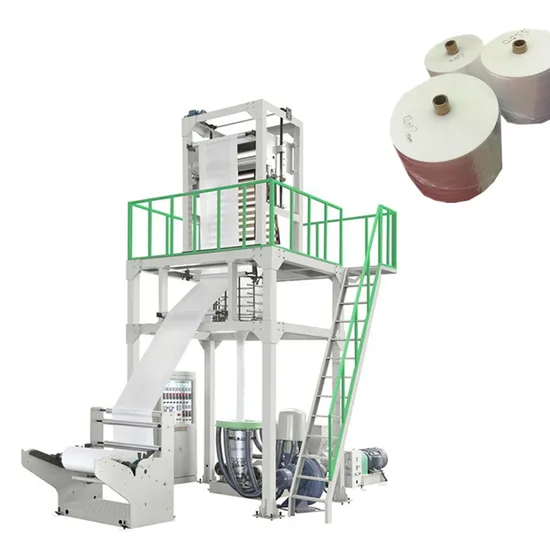

ABA Plastic HDPE LDPE Film Extruder Blowing Machine Three-Layer Extrusion Film Making Blown Machines
| US$23,000.00-32,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MD-ABA
Type
Three-Layer Co-extrusion Film Blowing Machine
Raw Material
HDPE
Maximum Folding Width of Film
1200mm
Screw Diameter
55mm
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Suitable Material
HDPE
Model
MD-ABA55
Max Film Width(mm)
1200
Film Thickness
HD:0.008-0.08mm
Max Extrusion Outputhd
120kg/Hr
Transport Package
Nude Packing
Specification
CE, ISO9001: 2008
Trademark
Mingde
Origin
China
Production Capacity
5sets/Year
Product Description
Ruian Mingde Machinery Co., Ltd. is a professional manufacture of plastic machinery company. Main products: one to three layer co-extrusion rotary die film blowing machine, P E single and double winder film blown machine, high speed biodegradable film blowing machine,printing machine and bag making machine air cooling heat cutting recycling machine.We have the right of imports and exports, work on the quality of the first faith-based service of customer focus, production according to the customers requires, highly speak by customers, have sold to more than 50 countries. have many patents, Got Provincial Science and technology S E M S and National high-tech enterprise in 2018. Next five years we will focus on researching environmental high output low consume new products, standardizing the internal structure of enterprise, Enhance Visibility Mingde brand in the world. Known in the world, reliable by the customer. Mingde machinery are willing forward to cooperation with you making brilliant future.
| Model | MD-ABA45H | MD-ABA5O | MD-ABA50/55 | MD-ABA55 | MD-ABA65 |
| Suitable Material | HDPE | HDPE | HDPE | HDPE | HDPE |
| Max Film Width(mm) | 800 | 800 | 1000 | 1200 | 1500 |
| Film Thickness(mm) | HD:0.008-0.08 | HD:0.008-0.08 | HD:0.008-0.08 | HD:0.008-0.08 | HD:0.008-0.08 |
| Max Extrusion OutputHD | 100kg/hr | 80kg/hr | 80kg/hr | 120kg/hr | 150kg/hr |
| Gear Box | 146*2 | 173*2 | 173/180 | 180*2 | 200*2 |
| Screw Diameter(mm) | φ45x2 | φ50x2 | φ50/55 | φ55x2 | φ65x2 |
| Screw's Material | 38 CRMOALA Alloy | 38 CRMOALA Alloy | 38 CRMOALA Alloy | 38 CRMOALA Alloy | 38 CRMOALA Alloy |
| Barrel's Material | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA |
| Barrel's Cooling Fan | 200Wx3x2 | 200Wx3x2 | 200Wx3x2 | 200Wx3x2 | 200Wx4x2 |
| Thermo Control (zone) | 3x2 | 3x2 | 3x2 | 3x2 | 4x2 |
| Driving Motor (kw) | 15*2 | 18.5*2 | 18.5/22 | 22*2 | 30*2 |
| Die Size (mm) | HD:80/100 | HD:80/100 | HD:φ100/120 | HD:φ120/150 | HD:φ200/220 |
| Screen Changer | Standard manual | Standard manual | Standard manual | Standard manual | Standard manual |
| Thermo Control(zone) | 3 | 3 | 3 | 3 | 3 |
| Air Ring | φ820mm Dual Air Ring | φ820mm Dual Air Ring | φ820mm Dual Air Ring | φ820mm Dual Air Ring | φ820mm Dual Air Ring |
| Cooling Blower(kw) | 5.5 | 5.5 | 5.5 | 5.5 | 7.5 |
| Center Steady Stick | 1 PCS | 1 PCS | 1 PCS | 1 PCS | 1 PCS |
| Roller Width (mm) | φ138x850 | φ138x850 | φ138x1100 | φ138x1300 | φ165x1600 |
| Embossing Roller Width | 750mm | 750mm | 950mm | 1200mm | NO |
| Take-UP Motor (kw) | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 |
| Take-UP Speed(M/min) | 10-80 | 10-80 | 10-80 | 10-60 | 10-60 |
| Height adjustable type | 700mm | 700mm | 700mm | 700mm | 700mm |
| Type of Winder | Surface Friction Winder | Surface Friction Winder | Surface Friction Winder | Surface Friction Winder | Surface Friction Winder |
| Roller Width (mm) | 900 | 900 | 1000 | 1300 | 1600 |
| Winding Motor(KW) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Winding Speed(M/min) | 10-80 | 10-80 | 10-80 | 10-60 | 10-60 |
| Voltage | 380V 50HZ, 3PHASE | 380V 50HZ, 3PHASE | 380V 50HZ, 3PHASE | 380V 50HZ, 3PHASE | 380V 50HZ, 3PHASE |
| Cover Dimensins(m) | 6.2x2.75x5.2 | 6.2x2.75x5.2 | 6.5x3x5.2 | 6.5x3.2x5.5 | 7x3.2x6.5 |
