HDPE LDPE Film Recycling Crushing Drying Line PE Film Washing Line Mulching Wash Line

Product Description

Product Description
Greenlandplast HDPE LDPE film recycling crushing drying line pe film washing line mulching wash line
The production line is mainly used for waste HDPE/LDPE/PP film, bags, woven bag crushing, washing recycling.

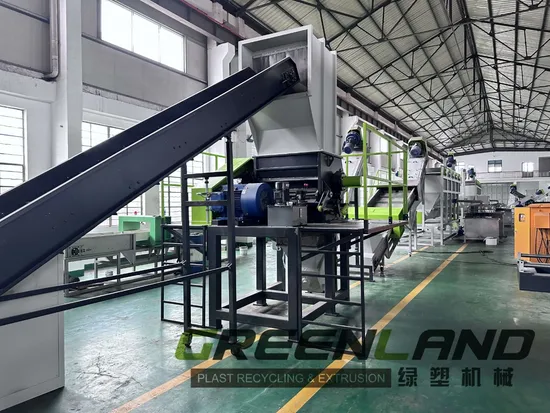

The production line includes conveyor ,crushing (with water), rinsing, high-speed friction washing, dewatering, drying, collection and packaging systems;
The drying part can also be equipped with our latest film squeezing compactor machine or film squeezing dryer , which can greatly improve the dewatering rate, due to cancel the dewater and electric heating system, it can effectively reduce power consumption and improve customer economic benefits.
Production line scheme can be specially designed according to the pollution state of customer's raw material ,the quality requirements of the finished product.
Product Parameters
Technical dates

Model	Capacity	Total power	Water supply	Labor	Area required
GLW-300	300kg/h	130KW	5-6 ton/h	1~2	38*4.5*5m (L*W*H)
GLW-500	500kg/h	145KW	6-8ton/h	1~2	38*4.5*5m (L*W*H)
GLW-1000	1000kg/h	190KW	8-10 ton/h	2~3	43*5*5m (L*W*H)

1)Plastic Crusher
2)Friction Washer
3)Floating Washer
4)Squeezing Compactor
