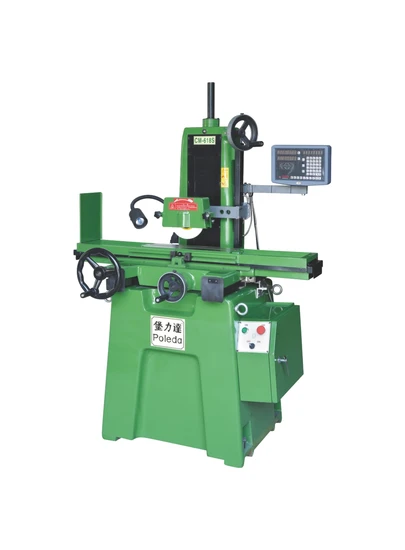

618s High Precision Vertical Shaft Surface Grinding Machine Factory Direct Sales

Product Description

Product Description
Outstanding Features of the POLEDA Surface Grinding Machine:
High Efficiency: Our surface grinder boasts a high spindle speed, enabling rapid processing to significantly boost your operational efficiency.
Extended Durability: Meticulously designed and manufactured, our surface grinding machine ensures a prolonged service life, standing the test of time.
Cost-Effective Maintenance: Enjoy the benefits of simple maintenance procedures and low upkeep costs with our surface grinding machine.
Ease of Operation: Designed for user-friendliness, our surface grinding machine minimizes training time and costs, making it accessible for all operators.
Safety and Reliability: With robust safety features, our surface grinding machine prioritizes the well-being of operators, ensuring a secure working environment.
Exceptional Structural Rigidity: Constructed primarily from cast iron, including the bed, column, workbench, grinding wheel, and grinding wheel frame, our machine offers superior shock resistance, wear resistance, and thermal stability, ensuring unmatched rigidity and stability.
Versatile Applications: These exceptional performance characteristics make our surface grinding machine an indispensable asset in industrial production, adept at grinding diverse surfaces and intricate shapes, all without the necessity of mechanical feed.

Product Parameters
Mechanical Properties
Machine Structure: Crafted from premium-grade cast iron, the main castings of our machine undergo a meticulous annealing process to eliminate internal stresses. This ensures not only unmatched precision but also exceptional rigidity and extended machine lifespan. Slide Way: The machine features a double V slide way on both the left-right and front-back axes, incorporating wear-resistant resin TI URCITE-B and precision shovel flower. This design guarantees smooth, wear-resistant sliding, making it impeccably ideal for forming and grinding tasks.
Cylindrical Straight Spindle: The machine is equipped with a P4 ultra-precision angular roller bearing, ensuring low noise and vibration-free operation. This design delivers substantial torque even at high speeds, making it perfect for heavy cutting as well as various forming grinding operations.
Automatic Lubrication System: Featuring a cutting-edge circulating automatic lubrication system, our machine ensures optimal performance. The lubricating oil cycle begins as soon as the main spindle starts, delivering forced lubrication to each screw and slide. This significantly minimizes wear on the slide. An oil mirror installed above the column allows for real-time monitoring of the lubrication condition, ensuring peak operational efficiency.

Product name	Surface grinding machine
Product model	618S
Product technical parameters
1 Table size		150*450MM(6*18'')
2 Maximum grinding length		475MM(18-3/4'')
3 Maximum grinding width		185MM(6-1/3'')
4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
5 Standard disk size		150*350MM
6 Left and right feed/manual stroke		485MM(19'')
7 Front and rear feed/manual stroke		180MM(7'')
8 Hand wheel feed (per turn)		5MM(0.2'')
9 Hand wheel feed		0.02MM(0.001'')
10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
12 Spindle speed (50/60HZ)		2800RPM
13 Spindle motor		1.5HP
14 Weight (approximate)		850kgs
15Machine size (L * W * H)		1350*1050*1850MM
Grinding machine configuration	Accessories name and specification	Quantity
Standard parts for machine tools	1,Grinding wheel and flange	1
	2,Wheel removal wrench	1
	3,Hexagonal wrench	1
	4,Leveling screws and foot pads	1
	5,Grinder guide oil	1
	6,Toolbox and adjustment tools	1
	7,Hanging rings	1
	8,Grinding wheel	1
Special parts for machine tools	9,Grating electronic ruler	1
	10,Permanent detail disk	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) is tailored to fit your specific needs for color, logo, and other customizations. For some standardized items in our inventory, the MOQ starts as low as 1 set, ensuring flexibility and convenience for your purchases.
2.How do you control the quality of the products?
A. Quality is the cornerstone of our business. We implement rigorous quality control measures to consistently uphold our high standards. Our commitment is to deliver superior quality, competitive prices, and exceptional service to our customers, ensuring their complete satisfaction.
3.What are the main products of your company?
A: Dongguan Poleda Precision Machinery Co., Ltd. specializes in the production of a diverse range of machines, including CNC Machines, Lathes, Milling Machines, Grinding Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and many more.
4. What are your trade terms?
A: We offer a variety of trade terms such as Ex-works (EXW), FOB (Free On Board),
CFR (Cost and Freight),
and CIF (Cost, Insurance, and Freight), providing flexibility to meet your logistical needs..What are your payment terms?
A: Our payment terms are straightforward: T/T (Telegraphic Transfer), with 30% due upon order placement and the remaining 70% payable before shipment, offering a transparent and secure transaction process.
6.What CNC systems do you use?
A: We supply a range of advanced CNC systems including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The selection is based on your specific preferences to best suit your operational requirements.
7.How can I choose the most suitable machines?
A: Simply provide us with the drawings and detailed specifications of your products and their applications. Our team of experts will recommend the most suitable machinery to meet your exact needs, ensuring optimal performance and efficiency.
8.What kind of packaging do you offer?
A. We use robust plywood cases to ensure your goods arrive in pristine condition. Additionally, we offer customized packaging solutions upon request to meet any special requirements.
9.Can your plant do OEM?
A: Yes, we provide both OEM and ODM services to cater to diverse customer needs, ensuring that all products meet your specific requirements and standards.
10.How about the warranty?
A: Our products come with a one-year warranty from the date of delivery. Moreover, we offer lifetime service support for our machinery, ensuring long-term reliability and customer satisfaction beyond the warranty period.
