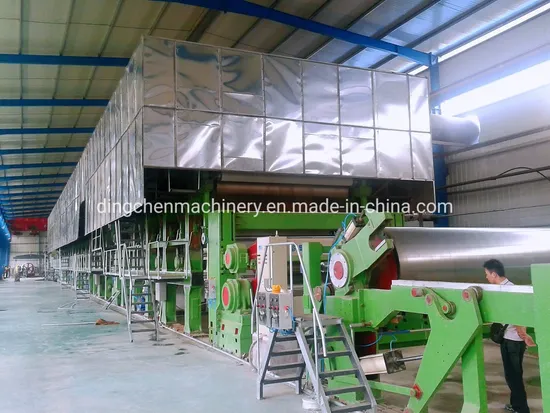

High Effect Kraft Paper Making Machine (3200mm 30tpd)

Product Description

High Effect Kraft Paper Making Machine (3200mm 30tpd)

Technical parameter:
1. Material: waste paper
2. Paper making style: Kraft paper ,corrugated paper
3. Weight of paper:100-250g
4. Net paper width:3200mm
5. width of cylinder mould:3750mm
6. rail gauge:4300mm
7.working speed:80-150m/min
8.capacity :30-35T/D
9. drive way: Alternating current frequency conversion ,section drive
Note:
Financial Analysis can be provided if customers' need to compare with cost of different Raw Materials.

Tips

Different model has different specifications
If customer want to get a quotation as soon as possible, please provide the following information for us :
1.Output paper type;
2.Capacity(tons/24hours);
3.Output paper weight(gram/m2);
4.Raw material
the main structure of equipment:
1.cylinder section: Φ1500×3750mm cylinder mould 2 pcs, Φ500×3750mm couch roll 3pcs(including round roller 1pcs);rubber hardness shore 38ºC±2.
2.compression section: Φ800×3750mm natural marble roller 1 pcs, Φ750×3750mm rubber roll 1pcs,rubber hardness shore 90ºC±2,pneumatic pressure device.
3.dryer section: Φ2500×3750mm alloy dryer 2pcs, Φ750×3750mm roller 1pcs, rubber hardness shore 90ºC±2, pneumatic pressure device;2nd dryer sectionΦ500×3750mm opposite pressurized roll 1 pcs, rubber hardness shore 90ºC±2,2nd dryer section route mesh device.
4.drive and controlling section:650 speed reduction machine 1 set,500 speed reduction machine 2set,adopt alternating current frequency conversion ,closed digital signal controller.
All equipment

NO.	Name of equipment	Quantity(set)
1	3200mm paper machine	1
2	dryer exhaust hood	1
3	exhaust blower	1
4	3200mm winding machine	1
5	3200mm calendar	1
6	3200mm rewinding machine	1
7	15 type vacuum pump	2
8	suction box	4
9	UY100 up-flow pressure screen	1
10	2m2 high frequency vibrating screen	2
11	606 disander	12pcs
12	ZSC 1.6 m3centrifugal screen	1
13	380 type double-disc refiner	3
14	20m3 gravitation Decker	1
15	8m3 high consistency hydrapulper	1
16	15m conveyor	1
17	Φ700 propeller	4
18	biphase flow pump-100	5
19	biphase flow pump-150	4
20	frequency exchange control cabinet	1
21	air pump cabinet	1
22	pulp consistency testing and controlling apparatus	1
23	all the working board	1
24	4ton coal boiler	1

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage 1.Experienced producing team2.Advanced technological strengthProduct Advantage 1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage 1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
