36'' Extra-heavy-duty disc harrow Product description
Lishi910 extra-heavy-duty disc harrow is a new-type extra-heavy-duty wide disc harrow recently developed by our
company.Its main body is made of high-strength alloy steel,with sturdy structure and good designing, equipped with

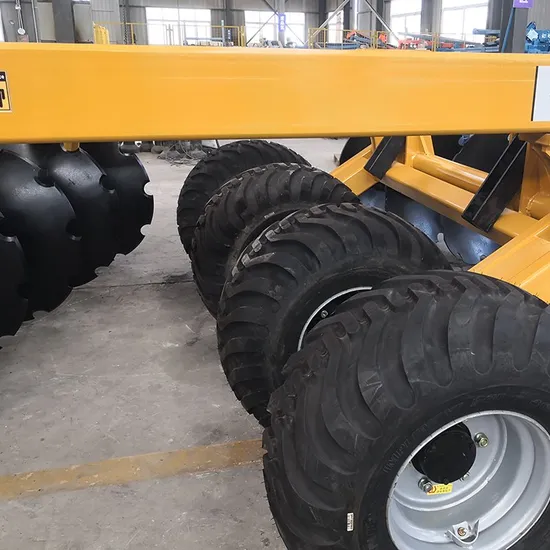

four sets of 10-15 tires for transport.The φ910*12mm heavy duty blade is used on this procuct for the first time in
china,which makes the maxium working depth up to 30cm.This product is mainly used for land plowing and
preparation before seeding and stubble cleaning after harvest in the sugar cane fields.
Product characteristics
Matching power:200-300 horsepower tractor,working width 3m-5m
It is used for stubble cleaning and land prepatation before seeding in higher stub lands such as sugar cane fields.
With the maximum working depth up to 30cm, it can replace the plough to perfrm the first cultivation on the light
soil and cultivated land.
Two-row notched blades,with the diameter of 910mm, thickness of 12mm
High-strength steel with sturdy structure.
Double-row tapered roller bearing with four seals utilizedmakes the service life 4-5times longer than that of the
ordinary agricultural bearings.
Technical parameter

Item	unit
Mode		910-5.0
Disc No.	pcs	20
Working wideth	mm	5000
Space	mm	495
Disc Size	mm	36''χ12
Approx. net wetgth	kg	6750
Matched power	hp	>300
