CNC Turning Slant Bed CNC Lathe Machine (BL-S40/40M)

Product Description

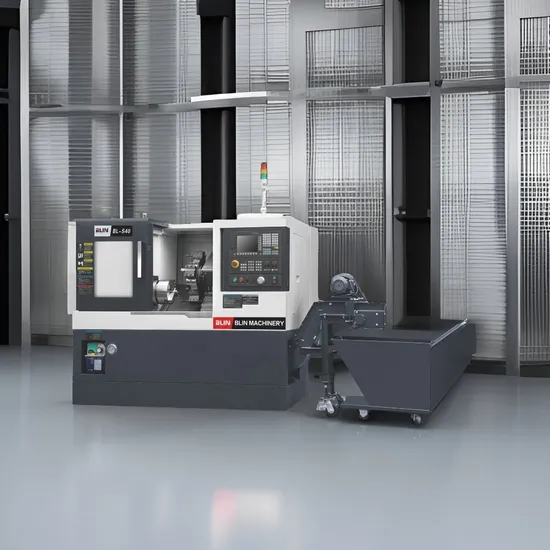

CNC turning slant bed cnc lathe machine(BL-S40/40M)
- Super compact structure, big inside space, modern appearance
- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand.
- Adopt 30°integral slant bed design(structure similar as JAPAN TAKISAWA 106), high rigidity, good machining flexibility,easy for chip conveying.
- Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, parts catcher, robot etc.
- Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability.
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Frame adopt oil-coolant separation design, adopt independent coolant tank
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity, can realize μ class precise turning.
- Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for heavy loading and precise machining
- mount energy-storage tank,reduce pressure fluctuation during tool change
- Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity
- S40: 8T/12T Hydraulic-servo tool turret
- S40M: 12T VDI30 Servo powered tool turret and CS axes
Details:

Item	Specification	Unit	BL-S40		BL-S40M
Capacity	Chuck size	/	8''		6''
	Max. swing dia. over bed	mm	Φ500
	Max. swing dia. over slide	mm	Φ270
	Max. turning length	mm	320	290	280
	Max. turning dia.	mm	Φ360		Φ340
Spindle	Spindle bore	mm	Φ56	Φ62	Φ56
	Spindle end type	/	A2-5	A2-6	A2-5
	Spindle speed	rpm	5000	4000	5000
	Max. bar through dia.	mm	44	51	44
	Spindle motor power	kw	7.5	11	7.5
	CS axes division accuracy	Deg	/		0.001°
X/Z axes	X axes travel	mm	180+20		160+20
	Z axes effective travel	mm	360		290
	X/Z axes rapid moving speed	m/min	30
Tool turret	Tool turret type	/	HYDRAULIC-SERVO		SERVO POWERED
	Tool qty	/	8/12*		12
	Vicinal tool changing time	s	0.4
	Farthest tool changing time	s	0.57
	Toolshank size	mm	25×25(SAUTER 8T)/20×20(SAUTER 12T*), Φ40(SAUTER 8T)/Φ32(SAUTER 12T*)		20×20,Φ32
	Live tool driven motor	kw	/		3.3(SIEMENS 828D)
	Live tool driven motor torque	N.m	/		16(SIEMENS 828D)
	Live tool max. speed	rpm	/		4500
	Live tool type	/	/		VDI30
Tailstock	Tailstock quill taper	/	MT4#
	Tailstock quill dia./travel	mm	Φ70/90
Accuracy	Ex-circle finish turning accuracy	/	IT6
	Finish turning roughness	mm	Ra0.4~1.6
	Finish turning roundness	mm	≤0.003
	Positioning accuracy(X/Z)	mm	0.005/0.008
	Repeat positioning accuracy(X/Z)	mm	0.002/0.004
Others	Coolant pump power	w	580
	Coolant flow	m³/h	2.5
	Overall size	mm	1900×1500×1600/2700×1500×1600(exclude/include chip conveyor)
	N.W.	kg	2700	2800	2900

Main parts list:

Item	Brand
CNC controller	GERMANY-SIEMENS/JAPAN-FANUC
Servo driver&motor	GERMANY-SIEMENS/JAPAN-FANUC
Spindle unit	TAIWAN-VOLIS/KENTURN
Hydraulic-servo tool turret(S40)	GERMANY-SAUTER/INDIA PRAGATI
Powered tool turret(S40M)	GERMANY-SAUTER
Ball screw	TAIWAN-PMI/HIWIN
Ball screw bearing	JAPAN-NSK/NTN
Linear guideway	TAIWAN PMI/HIWIN
Lubrication system	TAIWAN-ISHAN
Rotary oil cylinder&chuck	TAIWAN-AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
MPG	USA-HEDSS
Tri-color indication lamp	KOREA-QLIGHT
Breaker&AC contactor	FRANCE-SCHNEIDER
Relay	JAPAN-OMRON
DC switch power supply	TAIWAN-MEANWELL
Terminal block	GERMANY-WEIDMULLER
Synchronous belt	USA-GATES
Synchronous belt wheel	TAIWAN-PTP
Nuts	TAIWAN-YINSH
Shaft coulping	GERMANY-KTR/R+W
Scrapping plate&Extensible cover	TAIWAN-WANHE
Chip conveyor&chip bucket	TAIWAN-WANHE
Coolant pipe	TAIWAN-WEIDING

Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-S40: Hydraulic-servo tool turret
S40M: 12T VDI30 servo powered tool turret
-Hydraulic tailstock
Optional configuration:
-SIEMENS 828D/FANUC 0i TF CNC controller
-Automatic chip conveyor
-Tool setting probe
