Bjz High-Speed Stainless-Steel Wire Braiding Machine for Rubber Hose

Product Description

BJZ High speed stainless steel wire braiding machine for rubber hose Product Description High speed wire braiding machine
This series steel wire braiding machine is a high-speed steel wire braiding machine developed and designed by our company; this machine has a high speed and improves the work efficiency by more than 1 times compared with ordinary steel wire braiding machines. It is easy to operate and has high precision; all the machines adopt automatic control, PLC+ Man-machine dialogue interface and servo drive motor. The braiding accuracy is greatly improved, and the operation difficulty for the workers is reduced; the fully enclosed structure reduces the noise of the equipment and improves the safety performance of the workers; thelarge-capacity spool saves the waste of steel wires and reduces the frequency of wire replacement, and improves the work efficiency; Glue stop alarm function, disconnection stop alarm function; fixed-length braiding function; fault detection function; three-color alarm display;
1. Control form: automatic digital control (plc+ man-machine interface)2. Drive motor: frequency conversion + servo motor (variable frequency control of braidingpart, haul off servo drive)3. . Spool capacity : 7~7.5KG

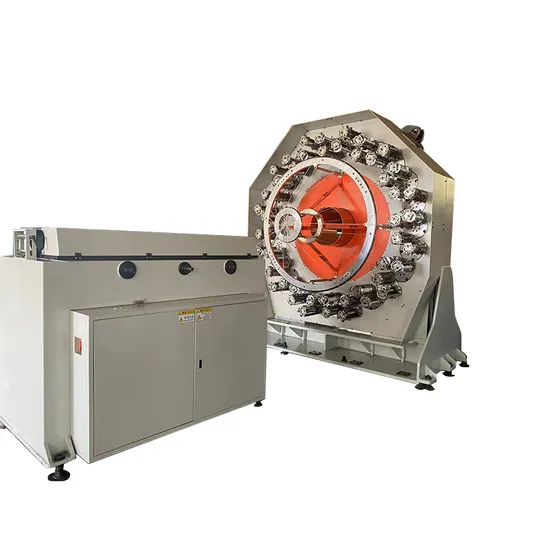

Super high speed wire braiding machine
This product is a new type of wire braiding machine manufactured by our company based on the US RB-TWO wire weaving machine.This machine adopts the principle of controlled rotation; the spindle is performed by circular track; it breaks through the principle of 8 word handover machines at home and abroad; this machine is a new type of steel wire braiding machine with high technology advanced technology.
1. Working principle: rotary type2.Control form: automatic digital control (plc+ man-machine interface)3. Drive motor: full servo motor drive4. Bobbincapacity : 13KG

Product model	Spindle largest revolution(r/min	Waving pitch(mm)	Max braided hose diameter(mm)	The central height(mm)	Mortor power(kw)	Bobbin capacity(kg)	Overall diamensions(mm)
ZGB16-2S	90	15-70	10	1311	18	11.4	6433*2744*2598
ZGB20-2S	80	15-75	13	1311	24	13.3	6433*2744*2598
ZGB24-2S	68	15-90	25	1311	24	13.3	6433*2744*2598
ZGB36-2S	45	15-130	32	1311	24	13.3	6433*3055*2598

Related product High speed wire bobbin winder
technical specification
1. Motor power: 5.5kw
2. Wire take-up speed: The wire take-up speed is 5m/s during the 15-day running-in period, and it runs normally after the running-in period (maximum) 10m/s
3. Take-up speed form: constant linear speed
4. Working pressure: 0.3-0.5mpa
5. Number of ply: (Maximum) 12
6. Take-up control mode: PLC+human-machine interface digital control
7. Pay-off control form: brake motor + numerical control program control
8. Adapt to the wire diameter: (Maximum) 0.3mm
9. Dimensions (length * width * height): 3658*1160*1840
Main functions of wire bobbin rewinde 1. The take-up part adopts digital automatic control (PLC + man-machine interface)
2. Automatic pay-off tension adjustment (automatically control pay-off tension function)
3. Automatic stop function when disconnected
4. Fixed-length take-up function
5. Three-color alarm function
6. Fault prompt function Application High speed / super high speed wire braiding machine are good for metal hose and rubber hose
Customer's factory
Our braiding machine is the best choice for rubber/hydraulic hose
Packaging & Shipping
After Sales Service Service
After service for high speed wire braiding machine Company Profile
FAQ
FAQ for high speed wire braiding machine
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
1) Stainless steel wire
2) Copper lad steel wire
3) Copper wire 3. What application of your braiding machine? Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2.Wire diameter
3. braiding products
