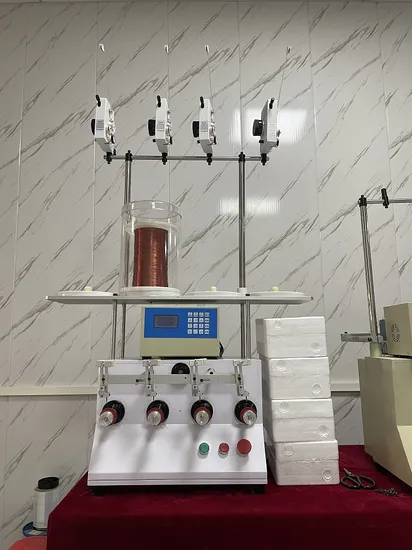

Protect Enameled Wire Four Spindles Coil Winding Machine for Signal Transformers

Product Description

Specificaton
GWP9-04 Protect enameled wire four Spindles Coil Winding Machine

Spindles	4	Spread Motor	Two Phase hybrid stepping motor, static torque 2N.M
Wire diameter	0.04-0.6mm	Max Speed	6000rpm
Spread Pitch	0-9.999mm	Memory	999 Sequences
Wire distance	100mm (Max)	Power Source	Single-Phase 220V ± 10%,50HZ
Wire speed	0-30mm/s	Rotation diameter	0-80mm
Main Motor	550W three-phase AC motor +750w frequency converter	Power	700W

FEATURES:
1. Using 32-bit ARM control chip and Sailingsi CPLD, the calculation speed is faster and the error is effectively reduced.
2. Input and output are all photoelectrically isolated and work stably. 3.Chinese LCD display, simple and convenient to operate.
4. Intelligently input the starting point and the wire width.
5. The winding displacement and reverse can decelerate intelligently, which can ensure faster winding displacement and greater torque at the same time.
6. The spindle climbing time can be set, the spindle speed can be changed in real time, and over speed tracking can be carried out.
7. Save the winding data in the situation of power failure, so as to effectively avoid the scrapping of coils caused by sudden power failure.
8. The position of the cable rack can be adjusted manually during the winding process.
9. The bearing belt (which is imported from Japan), Taiwan ball
screw and cast iron box are used to ensure stable performance. Detailed Photos
Application
1. Ordinary transformer
2. High frequency transformer
3. Solenoid valve coil
4. Multi-tap coil
5. Layer wrapped tape coil
6. The coils of precision parallel winding machine
7. Coils with larger diameter
SCOPE OF APPLICATION:
Company Profile
Founded in 1993, Grewin has provided cost-effective, high-quality manufacturing solutions to a variety of industries. Whether it is the production of high-frequency transformers winding, low-frequency transformers winding, inductors winding and other coils winding , or other vital components, our winding machines have been relied upon by countless manufacturers around the world.
Our Team with Customers

Certifications

Packaging & Shipping

After Sales Service
PRE-SALE:
1. Strong and professional team of engineers, rich experience
2. Able to provide innovative solutions and quotes in one day
IN SALE:
1. Delivery time: 5-10 days(standard machine), 30 days(custom )
2. Free consulting service: in-depth understanding of customer needs
3. Provide professional advice: including the choice of parts type and consumable parts of the machine.
AFTER-SALE:
1.24 hours free remote service: video guide and telephone
2. Warranty:1 year after-sales service
