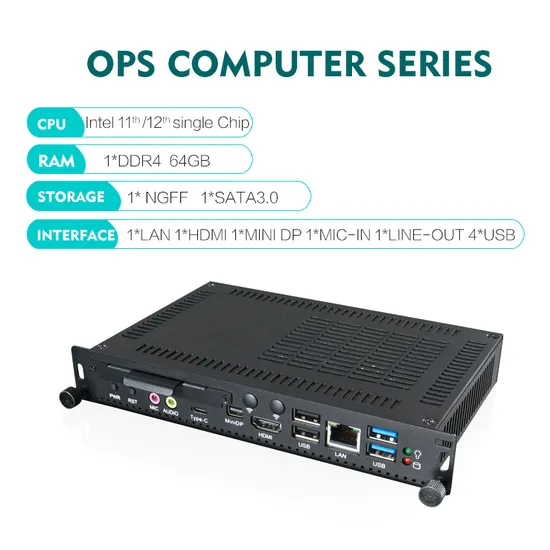

12th Gen Core I3 I5 I7 80 Pin OPS Computer DDR5 Interactive Device OPS Mini PC

Product Description

Product DescriptionProduct Feature:Onboard Intel Core 12th Alder Lake-U/-P/13th Raptor lake Series processor1*DDR5 SO-DIMM,Onboard Ram optional,max support 48GBTPM2.0 optionalDisplay Output:HDMI2.0/MiniDP/Type-C2*USB3.2,2*USB2.0DC 12-19V; Size: 120x180x30mm

Processor	Onboard Intel 12th Alder Lake-U/-P/13th Raptor lake Series processor
	EFI BIOS
TPM2.0	CPU built-in, optional external TPM2.0
Ram	1*DDR5 SO-DIMM,Onboard Ram optional,max support 48GB
Storage	1*M.2 M-Key 2280,NVMe PCIe 4.0 x4 protocol,SATA3.0 protocol optional
	1*2.5inch HDD port (with SATA3.0 choose one of two)
	1* SATA3.0 interface, 2Pin 5V (alternative to 2.5-inch HDD)
Display	1*HDMI2.0 interface supporting 4096x2160@60Hz.
	1*Mini DP, supporting 4096x2160@60Hz.
	1*Type-C, supporting double-sided USB3.1 and DP 4K and 5V 3A outputs.
	Support synchronous or asynchronous display
I/O interface	1*Mini DP, 1 HDMI2.0, 2 USB3.0, 2 USB2.0.
	1*LAN(RTL8111 network, optional Intel i219)
	1*power indicator, 1 hard disk indicator, 1 switch button, 1 reset button.
	1*Type-C
	1*Mic-in, 1 Line-out
	1*DC JACK power interface
Extended interface/function	1*M.2 E-Key(PCIe 3.0+USB2.0 protocol, supporting WIFI/BT module)
	1*M.2 B-Key(USB2.0+USB3.0 protocol, supporting 4G/5G modules)
	1*set of 8-bit GPIO pins, 2x5Pin, with a spacing of 2.0mm
	1*set of RS232 stitches, 2x5Pin, with a spacing of 2.0mm
	1*4Pin SYS FAN, 1 4Pin CPU FAN
Power Supply	DC 12-19V,90W
JAE 80Pin interface extension	HDMI2.0+DP1.4 output, automatic detection and identification.
	2*USB2.0,1*USB3.0,1*TTL
Operating system support	Windows10,Windows11,Linux
measure	120x180x30mm
