ASME-Approved Liquid CO2 Storage Tank Pressure Vessel for High-Pressure

Product Description

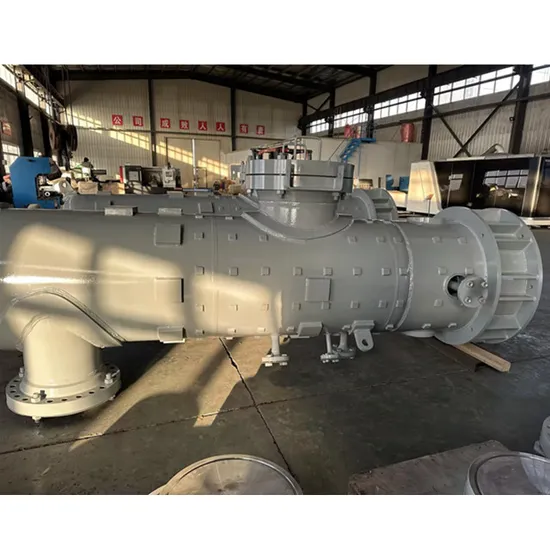

ASME standard oil field supply 3 phase gas liquid separator
Mingyi can produce various of separators, pressure vessels, supercritical CO2 extraction machine, Gelatin equipment and aerogel equipment and other customized industrial product, including gas liquid separator, gelatin votator, band dryer, multi-effect evaporator, storage tank, pressure vessel, etc. Product Description A high-pressure separator is a kind of equipment widely used in industrial production processes such as chemical and petroleum industries. It is mainly used to separate multiphase mixtures (usually gas-liquid mixtures or liquid-liquid mixtures) under high pressure. Based on the differences in physical properties such as density and solubility of each component in the mixture, each phase of substances is separated and led out respectively, so as to achieve the purposes of recovery, purification or further processing in the subsequent steps.
Working Principle
1. Gravity Settling Principle: Under high-pressure conditions, taking advantage of the different densities of each phase in the mixture, the heavier liquid phase settles to the bottom of the separator under the action of gravity, while the lighter gas phase accumulates at the top. For example, in the petroleum refining process, when the mixture of crude oil and natural gas enters the high-pressure separator, the crude oil, with a relatively high density, will gather at the bottom, and the natural gas will rise to the top. 2. Centrifugal Force Separation Principle: For some gas-liquid mixtures containing tiny droplets, by making the mixture rotate at a high speed inside the separator, centrifugal force is generated. Under the action of the centrifugal force, the droplets are thrown towards the wall of the separator and converge into a liquid flow, while the gas remains in the central area, thus realizing separation
We offer a range of tank sizes from 5000 liters to 200,000 liters and in both horizontal and vertical vessels.

Colour	White
Size	Customized
Texture	Inner SS304 Outer Q245R
Logo	Accept Customized Logo
Standard	GB150/ASME
Design Pressure(MPa):	0.8/1.6
Condition	New
Brand name	SHD
Service life	20years
Place of Origin	China
Application	Food freezing/fish pond/metal/gas cylinder filling

Application Petrochemical Industry: In processes such as crude oil distillation and hydrotreating, high-pressure separators are used to separate components such as oil, gas, and water in crude oil. For example, in a hydrocracking unit, the high-pressure mixture (including unreacted hydrogen, generated oil and gas, etc.) after the reaction is separated by a high-pressure separator, hydrogen is recovered, and the oil and gas are transported to the subsequent fractionation unit. Natural Gas Processing: In the process of natural gas exploration and purification, high-pressure separators are used to remove impurities such as liquid hydrocarbons and water from natural gas. The natural gas extracted from the wellhead is under high pressure and mixed with condensate oil and formation water. Through the high-pressure separator, these impurities can be effectively separated to obtain relatively pure natural gas. Our Services 1.Pre-sales Service
Offering comprehensive technical and business consultation services; Proposing the most suitable scheme and equipment for our clients; Designing and fabricating targeted products according to the special requirements of clients; Training periodically high qualified service technician. 2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first; Fast & Safe Delivery; Assisting our clients for foundation construction of equipments; Dispatching engineers to install and debug equipments; Training the first-line operators on site; Regularly visit clients to solve production problems; Providing life-long maintenance service; Providing technical exchanging. Company Profile Mingyi Intelligent Equipment ( Tianjin) Co., Ltd. is a leading producer that integrates the research, design and customized development, production and sales services of tank . We has been manufactured and exported in tank for more than 20 years, various types of products are made in different materials grades like Carbon Steel,Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium.Our company is located in Tianjin, we have no limitation in transporting our finished product (even large items) to Tianjin sea port from where we can ship to our customers all over the world. Our team has good knowledge and expertise in forming all type of materials into different shapes, our hard working and flexible craftsmanship is ready non-stop to execute the orders within the shortest possible lead time and to maintain our commitments with our clients. We always provide the most economical and efficient solutions for clients to maintain a sustainable business for the long-term.
Our Advantages
With well-equipped professional engineers and strong technical ability, our company has been in machinery filed more than 20 years.
We cooperate with superior material suppliers to ensure the quality. We do lots of tests on machine to ensure the high quality of the equipment before packing. Engineers are always available to service for machinery commissioning overseas, which is not only after sales service support, but also technology support. " Keep Improving, Pursuing Excellence" is always kept forever. Lots of our products,such as vibrating screen, paper pulper, gas liquid separator and other papermaking machines have obtained patent certificates and they have been sold to Europe, Southeast Asia, Australia , USA, Chile, Russia and other countries.
Our products have good impression on all of customers, it helps client to save lots of manpower, improve efficiency. With good product quality and business reputation, we are deeply supported and loved by customers! Exhibition
Packaging & Shipping
FAQ 1. Is your company a factory or trading company?Mingyi is a highly professional manufacturing entity focusing on fabricating pressure vessel and tanks, integrated bioengineeringfermentation systems, cell culture systems, large infusion systems, fluid handling system, CIP/SIP systems.2. Can you product as specific size?Definitely we can. Our products are customized as per your requirements.3. Can I have samples to test? Yes, we are pleased to supply samples test report issued by renowned authority and ensure quality. Our products are fabricatedstringently in compliant with ISO, ASME BPE, cGMP international codes.4. Do you have any MQQ limitation?Our MQQ is 1 PC to supply new customers.5. How long is the lead time?Normally it takes 5-6 weeks for stainless steel tank, 7-10 weeks for integrate modular systems. 6. Do you provide after-sales service?Yes, we are committed to offering highly professional and real-time after-sales service. We have many professional and dedicatedengineers available ensuring a holistic service to our highly-respected customers.Contact us, let's discuss more!
