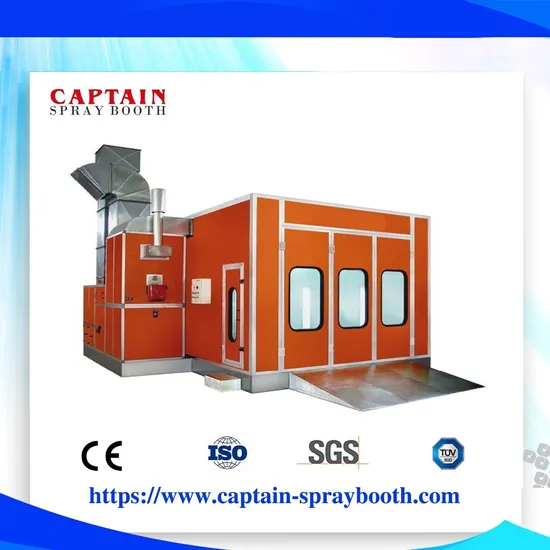

Customized Combination Booth / Spray Booth / Preparation Bay / Mixing Room
| US$5,500.00-23,600.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
combination booth
Type
Spray Booth
Certification
CE
Substrate
Sandwich Panel
Brand
Captain
Coating
Painting
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Outside Size(mm)
7000X5350X3300
Inside Size(mm)
6900X3900X2650
Front Door(mm)
3000X2600(Wxh)
Total Power
16kw
Basement
3 Rows Diamond Plate, 2 Rows Grids
Cabin System
50mm EPS Panel
Ventilation System
2X4kw for Intaking, 1X5.5kw for Exhausting
Lights
LED Type
Heating System
Italy Riello G20 Diesel Burner
Certificate
Ce
Transport Package
Export Container /Pallet /Disassembly with Carton
Specification
SGS, ISO
Trademark
OEM/Captain
Origin
Jiangsu, China.
HS Code
8424899990
Production Capacity
300sets/Month
Packaging & Delivery
Package Size
11000.00cm * 2350.00cm * 2600.00cm
Package Gross Weight
7980.000kg
Product Description
We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
This is our real photos of customized conbinetion booths : 2 sets spray booth and 2 sets preparation bay
If you have any requirements , please feel free to contact me .
This model is our luxury model for 4S repair shop,it's popular for Australia and Europe,please check the details,aslo we can design the booth according to your needs,so just tell me your requirements,we will give you the best solution.
| Items | Specifications |
| Outside Dimension | 7000×5350×3400mm(L×W×H) |
| Inside Dimension | 6900×3900×2700mm(L×W×H) |
| Main Door | 3-folds: 3000×2600mm (W×H), aluminium alloy door frame |
| Personal Door | 1-fold: 750×2000mm (W×H),aluminium alloy door frame |
| Wall panel | EPS colorful steel skin panel,50mm thick,steel 0.4mm thick,tongue groove style,compound construction,anti-flame and heat-insulation, aluminium roof panel. |
| Basement & Floor | Complete steel assemble, height is 300mm, 5 rows grilles on the metal basement, 2 Pcs ramps: 630×1800mm (W×L)/pc |
| Lighting System | Ceiling Lights: 8Units×4Pcs=24Pcs×40W, with electronic ballasts,power-coated light box. Optional : Side Lights: 10Units×2Pcs=20Pcs×36W, with electronic ballasts, vertically set,power-coated light box. |
| Generator Setting | Intake air from side back direction, quadrate steel frame, colourful coated steel plate |
| Intake Fan | 2 sets of double-intake centrifugal fans for intake air, direct drive,4kw each,air capacity 12500m3/h in total. |
| Extract Fan | 1 set of double-intake centrifugal fan for exhaust air, direct drive,5.5kw, air flow 15000m3/h in . |
| Number Of Air Changes (times/hour) | 290 |
| Wind Velocity At Full Load Inside The Room(M/S) | 0.3m/s |
| Heating System | 1set Riello G20 brand diesel oil burner, maximum heat productivity is 200,000Kcal/h, stainless steel heat exchanger, highest temperature is 80oC, electric damper executes from spraying to baking cycle . |
| Maximum Working Temperature | 80 |
| Heating Rate(/min 20--60) | 4-6 |
| Filtering System | Pre-filter,600G high efficiency filter(ceiling filter),floor filter(fiberglass filter),activated carbon filter. |
| Control Panel | Spraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch |
| Filter Efficiency | ≥98% |
| Noise(db) | ≤75 |
| Colour | Blue,red,white,Orange, Grey |
| Total power(Kw) | 16KW |
| Delivery time : after received you payment ,we will produce , for this standard model , the delivery time is 2-3 weeks . |
| Payment term: 50% TT IN ADVANCE , 50 % before delivery |
| After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included) |
| when your workers unloading the goods, If they find something damaged during transit by sea, please take the pictures of the damage in the container and we will reissue you or give you some compensation. (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record) |
Real photos :
Production
Package and Delivery
Installation
Workshop
Factory View
Also we can design the spray booth according to your need,so just tell me your needs,we can give you the best solution.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
