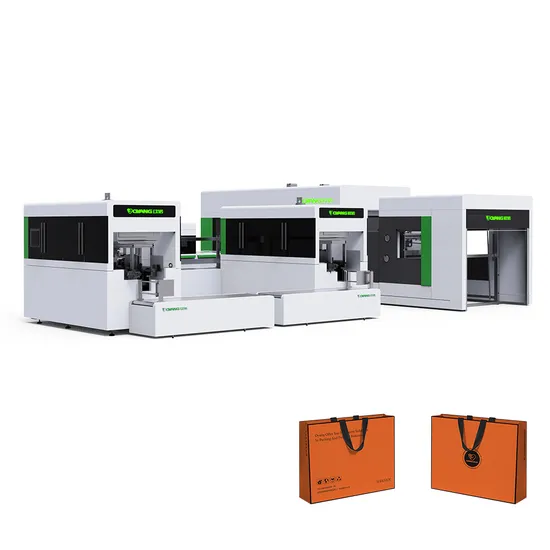

Sheet Fed Paper Box Bag Machine with Handle Automatic Inline

Product Description

Feature & Characteristics
Leader Box Bag Machine is a world first set 3D one time forming machine, which start to developed since 2009 and successfully coming at October 2013 year, Youtube and Facebook have all records!
Till now, it has obtained 12 invention patents and more than 30+ new-use patents. More than 1000+ customers have been using our equipment in China domestic market, and exported to more than 120+ countries, accounting for more than 90% of the market sales share of this equipment.
This machine one time forming white cardboard and gold and silver cardboard square bottom paper box bag, with a fast mold change time of 20 minutes, the equipment runs efficiently and stably, and is widely used in high-quality gift bags, advertising packaging, and other packaging applications!
Equipment adopts full-servo bus control
Automatic flat rope threading device
Quick mold change function
Feeding of 2,000-meter rolled flat rope
Hot melt pressure sensitive adhesive
M bottom bag folding device
The bag mouth is fixed with glue on the inside after the bag mouth is closed.
Product Parameters

Item	Specification
Roller width	620-1150mm
Bag making speed	30-50pcs/min
Bag Width	220-500mm
Bag Height	220-430mm
Gusset	100-200mm
Power supply	380V
Total power	50KW
Rated power	30KW
Overall size	L 10000* W 6500* H 2700mm
Weight of Machine	11000KGS
Material Thickness	180-300g
Sheet Material Width	620-1150mm
Sheet Material Length	340-720mm
Suitable Material	White Cardboard/ Gold and Silver Cardboard

Product Description
Highlights Of New Technology Solve The Problems With The Existing Paper Bag Manufacturing Processes
-We offer a "fully automated U-shaped bag-making process with center sealing on both sides of the package". The threading of flat ropes and the bag-making are completed in an integrated and automated manner.

Solve The Problem Of Bottom Degumming
-Form a U shape with the bottom as the center. Seal at the center along the fold lines on both sides. The bottom is a whole flat bottom.

Solve The Problem Regarding The Aesthetics Of The Bag Surface
-The front is neat and generous, and there is only one fold line on the side, which will not damage the printed pattern. The folding method is the bottom M bottom inner fold The inner fold of the bag mouth is glued into a whole, no rebound, and easy to use.

Solve the problem of the aesthetics of the bag surface
-The inner folds at the bag opening are glued together as a whole, without springing back, which is convenient for use.

Comparison Of Finished Paper Bag Of New And Old Technology Old Technology New Technology Folded State Of Old & New Technology Company Profile
Zhejiang Ounuo Machinery Co.,Ltd.is located in Pingyang County Wenzhou City,Zhejiang Province, covering an area of 130000 square metres, 15 years deep ploughing in packaging equipment industry. Invest 200 million imported of Japan stability of the whole machine. MAZAK, OKUMA, Taiwan WELLE etc, the high-precision CNC Machine, to ensure the precision of the components and we offer complete solutions to customer in the eco-friendly bag making project,including paper bag making solutions, nonwoven bag making solutions,nonwoven fabric production line, paper cutlery/moulding machine, pouch making machine and printing machine etc..
Ounuo's Misson: Industry Change Because of Us
Ounuo's Vision (10-15 Years):Responsibility to Promotion Solution of Top Quality and Intelligent Bag Making Industry. Keep in mind the mission and vision and strive to provide world-class quality products and services to customers. Oyang brand is deeply loved by the global market,products in Mexico,Argentina, the United States,
Romania,,Poland,Vietnam,Brazil,the United Arab Emirates,India,Turkey,Egypt,Algeria,Kenya,South Africa etc and more than 168 countries and regions,The market shares for 85%+.
FAQ Q: Are you manufacturer or trading company?
A: We are the professional machinery manufacturer in packaging and printing industry for 17+ years covering an area of 130,000 square meters,have more than 400 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city, Zhejiang Province, China.
Q: What is the advantages of your factory compared with other suppliers?
A: 1. Technical strength: We are the leaders of the Chinese packaging machinery industry. We have strong technical strength and can develop and produce high -quality and efficient packaging machines. Mastering advanced technology and technology, we currently have 9 successful packaging and printing projects. We can provide you with a full set of solutions to meet the packaging needs of different industries.
2. Product quality: We pay attention to product quality, and invested 200 million US dollars to introduce Japanese high-level processing equipment MAZAK. From accessories to finished products, we have strict quality control and detection processes to ensure the stability and reliability of the product.
3. Product customization: We can customize design and production according to the needs of customers to meet the special requirements of different customers. Provide personalized solutions to help customers improve production efficiency and reduce costs.
4. After -sales service: After -sales service is one of our biggest advantages. We provide timely and professional technical support and maintenance services to ensure that we can quickly respond to the needs of customers, solve problems, and ensure the normal operation of the equipment.
5. Innovation ability: We continue to carry out technological innovation and product upgrade to meet the changes in the market and customer needs. Continuously improve the performance and functions of products and provide customers with better solutions.
Q: What information should I provide if I want to get a quotation?
A: First, paper type which you wanna make, second, the size of paper bag, third, the thickness of paper bag, after collect the basic information, then we will suggest the right machine model to you!
Q: How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q: How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
