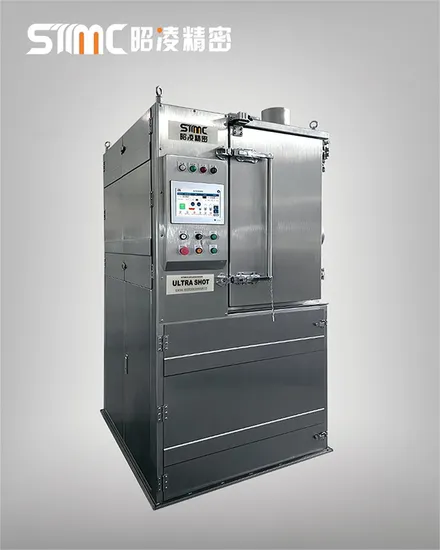

Automatic Rubber Nitrogen Deburring Machine Ultra Shot NS-60T

Product Description

Product Description The Ultra Shot 60 Series Cryogenic Deflashing/Deburring Machine is equipped with a spacious 60L basket and durable φ250 aluminum alloy shot blasting wheels. With an astonishing maximum projectile velocity of 109m/s, this model is specially designed to meet the needs of ultra-high precision products. It excels at handling multiple products, even small quantities per batch, while accommodating variable processing parameters. This unparalleled flexibility ensures that each product is precisely processed to meet the highest quality standards. The Ultra Shot® 60 Series Cryogenic deflashing/deburring machine is an exceptional deflashing & deburring solution for products made of rubber, silicone, peek, plastic, die-casting & injection moulded, magnesium, zinc, aluminium alloy.
Efficiency
Taking the deburring & deflashing of rubber O-rings as example, one set of Ultra Shot 60 series cryogenic deflashing/deburring machine is able to process 60kg of products per hour, and about 1.5kg per hour can be processed manually.

Detailed Photos
Product Introduction Advanced technology
1. Full stainless steel frame ensures longer working life of the machine.
2. High efficient designed basket with the OBD system fully reflects high efficiency, energy conservation, environmental protection.
3. Multiple safety control to ensure safe and reliable operation.
Dynamical system
1. The power system uses high-strength metal projectile wheel and Japanese imported high-frequency motor working with the 60/45 degree inclined cylindrical basket.
2. Power output and product processing capacity reach a stable ratio of 1:1.
3. The optimal power ratio produces extraordinary processing accuracy.
Sorting system
1. The machine adopts Sato type anti-plugging, adjustable 3D variable linear waveform vibrating screen.
2. Excellent thermal insulation performance to prevent external icing.
3. Fast and easy disassembly and maintenance, improve production efficiency.
4. Long performance life with high stability.

Application The cryogenic deflashing machine provides users with a solution to efficiently deal with product flash, which is very suitable for large quantity production, parts with various sizes, structures, or materials that require high accuracy for product surface treatment.1. Rubber and plastic parts.2. Exceptional ideal for 'O' rings.3. Flash removal of elastic material products.4. Electronic components.5. Medical supplies.Cryogenic deflashing method is commonly used in the automotive, aerospace, medical, electronics and general rubber industry.

Parameter

MODE	SIZE	WEIGHT	POWER	BARRAEL CAPACITY	USEFUL CAPACITY
NS-60T	1160*1100*1955mm	800kg	5Kw*3Ph	60L	20~30L
