China Continuous Handheld Laser Welding Machine for Stainless Sheet

Product Description

Product Description

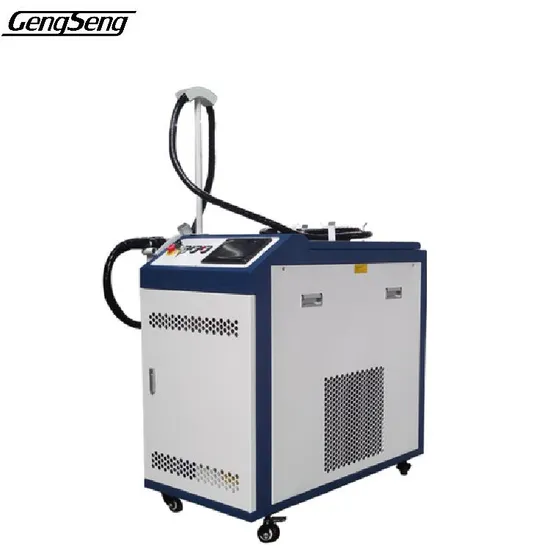

HANDHELD FIBER LASER WELDING MACHINE
Handheld laser welding machine is generally composed of laser, chiller, control software, laser welding head, optical fiber and other components. The advantages are simple structure, fast start-up, flexible welding, strong welding penetration, and can beat welding of various complex angles.
It is suitable for stainless steel, carbon steel, aluminum alloy plates, etc., and also for welding between various materials, and it has optional cleaning and cutting functions for your choice.
Handheld laser welding machine can replace traditional argon arc welding, electric welding and other processes in the field of welding with its advantages of high speed, simple operation and high welding strength.
ADVANTAGE Smaller Size, Flexible And Convenient: Integrated design, laser, water chiller and control part are integrated together, occupying a smaller area, low requirements for the site; welding torch transmission fiber is equipped with 10 meters, breaking through the limitations of the worktable, can reach a wider welding range, suitable for all kinds of complex welding seams, can weld any part of the workpiece and the desired angle.
Good Welding Quality And Firm Welding Seam:Constant laser mode, smooth welding seam, no fish scales, strong and firm welding seam; Small heat affected area, small yellowing and blackening areas on both sides of welding seam, small overall deformation of workpiece; Small pile height of welding seam, no need to proceed secondary sanding treatment.

Simple operation no need training:English operation interface, the working status is clear status; the operation panel is concise and easy to understand. The monitor support contact touch, expands the tolerance range of the machined parts and the width of the weld, which solves the disadvantage of small spot size and better weld formation. With multiple safety alarms, it automatically stops after removing the workpiece (with a loop), which brings safety.
Product Parameters

Model	GS-HW1500	GS-HW2000	GS-HW3000
Laser power source	1500w	2000w	3000w
Fiber length	10m/15m	10m/15m	10m/15m
Optical fiber core diameter	50um	50um	50um
Fiber wavelength	1080nm	1080nm	1080nm
Red light signal	0.5mw	0.5mw	0.5mw
Welding thickness of iron	4-6mm	5-8mm	8-10mm
Welding thickness of stainless steel	4-6mm	5-8mm	8-10mm
Welding thickness if aluminum	2-3mm	3-4mm	4-8mm
Voltage/frequency	AC220V 50HZ/3P	AC380V 50HZ/3P	AC380V 50HZ/3P
The engine power	7.2KW	12KW	15KW
Weight	240KGS	250KGS	280KGS
Size(cm)	L120*W60*170	L120*W60*170	L130*W68*180
Welding head	SUP20S	SUP20S	SUP20S
Output head interface	QBH	QBH	QBH
Output power range	<2%	<2%	<2%
Operation mode	CW/Modulate	CW/Modulate	CW/Modulate
Type of cooling	water cooling	water cooling	water cooling
Operating temperature	<70ºC	<70ºC	<70ºC

Main Parts
Special laser source for welding application:
Laser welding uses a high energy density laser beam as a heat source for efficient precision welding. Since laser welding requires high precision for workpiece pre-machining, the position of the beam on the workpiece is not significantly offset.
Wobble type head special for welding application:
In response to the limitations of laser welding technology, the market has gradually introduced a laser welding method with double wedge laser vibration, which is realized by disposing a special wobble vibration module on the welding head. The application of wobble welding technology can make laser welding more widely used, and it can achieve high-efficiency laser precision welding for larger or wider welds workpieces.
Auto wire feeder
It is an automatic drive mechanized wire feeder. Light in shape and easy to operate. The system is controlled by microcomputer and driven by stepping reduction motor, with high wire feeding accuracy and good repeatability.
Welding Sample

Application Areas
Mainly used for complex and irregular welding processes in kitchen cabinets, kitchens, stairs, elevators, door and window guardrails, stainless steel home furnishing and other industries.
