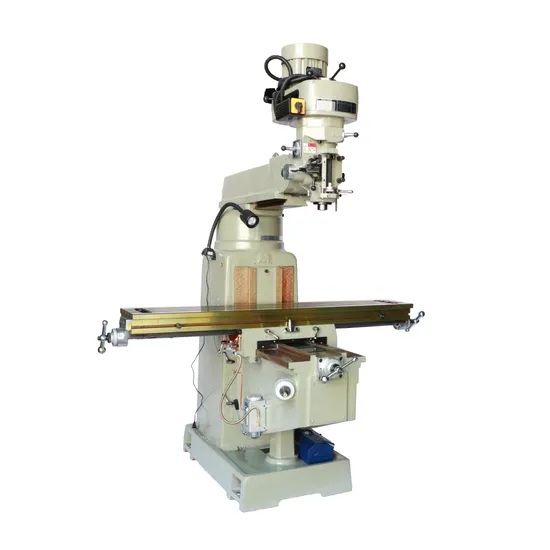

Poleda 5m/5s Universal Vertical Rocker Turret Milling Machine for Workshop Use, China

Product Description

Experience unparalleled precision with our 5M Vertical Metal Turret Milling Machine - the epitome of universal milling technology from China. As industry leaders, we continually strive for excellence, ensuring you always achieve superior results. Discover the exceptional capabilities of our 5M Vertical Metal Turret Milling Machine, engineered for ultimate performance and reliability.
Proudly presenting our China Universal Milling Machine. With unmatched expertise, we are the most professional in the field.
In our pursuit of excellence, we believe in constant improvement. For us, there is no best, only better.
Product Description
Product Parameters
Product Introduction
The Turret Milling Machine, also known as the Rocker Arm Milling Machine or Universal Milling Machine, boasts a compact structure, small footprint, and exceptional versatility. Its milling head can swivel 90 degrees, both left and right, and rotate 45 degrees front and back. Additionally, the extendable rocker arm can pivot 360 degrees horizontally, significantly expanding the machine's effective working range.
Construction
Crafted from premium-grade cast iron, the universal radial milling machine's body is built for precision and durability, enhanced through artificial aging treatment. The lifting platform features rectangular guide rails with numerous contact surfaces and robust feet. High-frequency treatment and fine grinding ensure the slide's motion accuracy and longevity, further enhanced by plastination. The spindle, made from chrome-molybdenum alloy, incorporates precision angular contact bearings and undergoes tempering and fine grinding for superior cutting force and high precision.
Applications
The Turret Milling Machine is a versatile, lightweight metal cutting machine capable of both vertical and horizontal milling. It can efficiently mill flat surfaces, inclines, grooves, and splines of medium and small parts. Its broad applicability extends to machining, mold making, instrumentation, and various other industries.
Mechanical Characteristics of the Turret Milling Machine
Constructed from m Mihanna cast iron, the machine offers excellent rigidity, stability, and resistance to deformation.
The main spindle, crafted from chrome-molybdenum alloy, undergoes tempering, heat treatment, and grinding. Combined with precision bearings, it delivers powerful cutting force and exceptional precision.
The milling head gearbox, made of cast iron, provides excellent rigidity and low deformation, ensuring accurate cutting and enhanced durability.
The screw cap on the three-axis screw is fabricated from advanced phosphor bronze, offering superior wear resistance and extended service life.
The XY-axis slide, treated with high-wave heat treatment, exhibits good wear resistance and increased service life. The imported wear-resistant plates on the XY-axis interface ensure ease of operation, minimal wear rate, and durability.
Equipped with a lubrication system that ensures uniform oil distribution, the machine guarantees smooth slide operation.
The machine weighs 100 kg more than similar products, providing added stability.
Powered by a robust 5hp motor, the machine features a high-rigidity and precision NT40 spindle, making it ideal for large parts and heavy-duty cutting.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
FAQ
1.What is the MOQ for your production?
A. The MOQ depends on your requirements for color, logo, and other specifications. For some standard items we have in stock, the MOQ is just 1 set.
2.How to control the quality of the products?
A. We have always placed great emphasis on maintaining a high quality level. The principle we always uphold is to providecustomers with better quality, better prices, and better service.
3.What's your main products of your company?
A: We specialize in various machines such as CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What are your trade terms?
A: Ex-works, FOB, CFR, and CIF are all acceptable.
5.What's the Payment Terms?
A: T/T, 30% initial payment when the order is placed, and 70% balance payment before shipment.
6.What CNC system do you use?
A: FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN. The choice depends on your preference.
7.How can I choose the most suitable machines?
A: Send us the product drawings and applications, and we will recommend the most suitable machines for you.
8.What kind of package do you offer?
A. Normally, we use a plywood case to ensure all goods are in good condition. Customized packages are also acceptable.
9.Can your plant do OEM?
A:Yes, it is no problem. We can do OEM and ODM for any customer. 10.How about the warranty?
A: The warranty period is one year after delivery. Even beyond that, we provide lifetime service for our machines.
