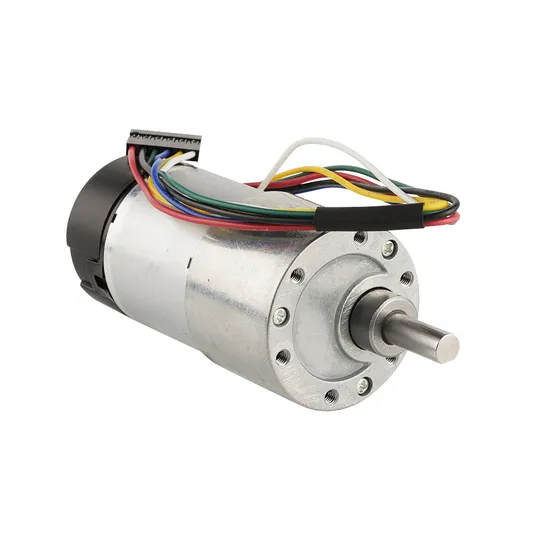

6V 12V High Torque 37mm AC DC Electric Worm Gear Motor Gearmotor Reducer Electricial Geared Motor with 64CPR Encoder for Robot
Basic Info.
Model NO.
37D
Excitation Mode
Excited
Function
Driving
Casing Protection
Open Type
Number of Poles
2
Structure and Working Principle
Brush
Type
Z2
Certification
RoHS
Brand
Xinhe Motor
Gear Motor
Spur Gear Motor
Brush
Metal Brush
Diameter
37mm
Voltage
6V 12V 24V
Speed
5rpm~3000rpm
Gear Ratio
10~830:1
Encoder
64CPR Encoder
Rosh
Yes
CE
Pass CE
Noise
Less Than 40dB
Power
20W
Weight
0.3kg
Packing
Carton
Lead Time
15days
Payment
Tt & Paypal
Transport Package
Cartons
Trademark
XINHE MOTOR
Origin
China
HS Code
8501109990
Production Capacity
20000/Month
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.200kg
Product Description
Product Description High Power version with 5A stall current:5AWith 64CPR encoder or not 64CPR ;
With back shaft or not.
With metal brush or carbon brush.
| Model | Voltage Unit: VDC | No load speed Unit: rpm | Noload current Unit: mA | Stall torque Unit: kg.cm | Gear ratio |
| 37D306-EN | 12V | 1760 rpm | 250mA | 3.9 kg.cm | 6.25:1 |
| 37D3010-EN | 12V | 1100 rpm | 250mA | 5.5 kg.cm | 10:1 |
| 37D3019-EN | 12V | 585 rpm | 250mA | 9 kg.cm | 18.75:1 |
| 37D3030-EN | 12V | 365 rpm | 250mA | 15 kg.cm | 30:1 |
| 37D3050-EN | 12V | 220 rpm | 250mA | 21 kg.cm | 50:1 |
| 37D3070-EN | 12V | 157 rpm | 250mA | 31 kg.cm | 70:1 |
| 37D30100-EN | 12V | 107 rpm | 250mA | 45 kg.cm | 102:1 |
| 37D30131-EN | 12V | 83 rpm | 250mA | 55 kg.cm | 131.25:1 |
| 37D30168-EN | 12V | 65 rpm | 250mA | 70 kg.cm | 168.75:1 |
| 37D30270-EN | 12V | 40 rpm | 250mA | 70 kg.cm | 270:1 |
| 37D30506-EN | 12V | 21 rpm | 250mA | 70 kg.cm | 506.25:1 |
| 37D30810-EN | 12V | 13 rpm | 250mA | 70 kg.cm | 810:1 |
