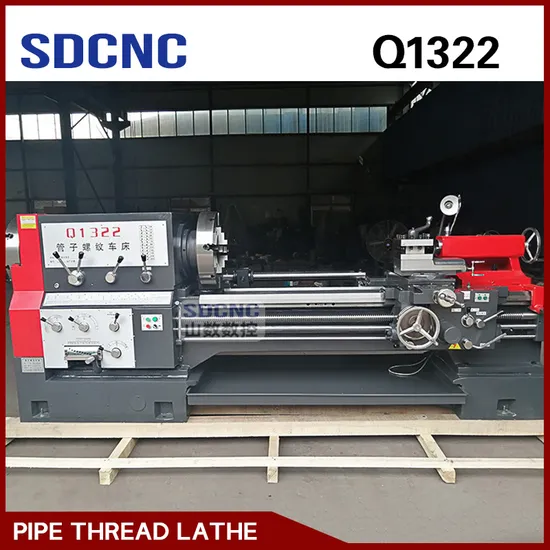

High Precision Pipe Threading Q1322 Horizontal Metal Lathe Machine

Product Description

The main performance characteristics:Big spindle bore and double chuck allows clamp and process big diameter pipes;Integral machine bed adopts high strength iron to relize high rigidity and precision;Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;Equiped with taper guide bar device this enables the machine to process taper threads.Application:Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.Standard accessories:Tool post,Tailstock,Chuck,taper guide bar,Lighting lamp,Coolant pump,Rear support bracket,Pad iron etc.Optional accessories:Digital readout,Chuck,Faceplate,Chasing dial,Center rest,Signal light,Protective cover(lead-screw,chuck,tool post),and Grinding attachment etc.

Product Parameters
Product main technical parameters:

Specifications		UNIT	Q1313	Q1319	Q1322
Capacity	Swing over bed	mm	630/800	630/800	630/800
	Swing over cross slide	mm	340/540	340/540	340/540
	Distance between centers	mm	1500/3000	340/540	340/540
	Pipe threading range	mm	Ø30-126	Ø50-193	Ø50-220
	Width of bed way	mm	550	550	550
	Max.load capacity	T	3	3	3
Spindle	Spindle bore	mm	Ø130	Ø200	Ø225
	Spindle speed steps	-	FWD. 18/REV. 9	FWD. 12/REV. 6	FWD. 12/REV. 6
	Spindle speed range	rpm	12-642/19-800	24-300/38-384	24-300/38-384
	Chuck size	mm	400	520	520
	Chuck type	-	3-jaw manual	4-jaw manual	4-jaw manual
Turret	Turret type	-	Manual 4 position	Manual 4 position	Manual 4 position
	Tool shank size	mm	32x32	32x32	32x32
	Turret travel	mm	200	200	200
Carriage	X axis feed grade/range	mm/r	22/0.02-0.45	22/0.02-0.45	22/0.02-0.45
	Z axis feed grade/range	mm/r	26/0.07-1.33	26/0.07-1.33	26/0.07-1.33
	X axis rapid traverse speed	mm/min	2300	2300	2300
	Z axis rapid traverse speed	mm/min	4000	4000	4000
	X axis travel	mm	320	320	320
	Z axis travel	mm	1310/2810	1310/2810	1310/2810
Tailstock	Tailstock quill diameter	mm	100	100	100
	Tailstock quill taper	-	MT#5	MT#5	MT#5
	Tailstock quill travel	mm	250	250	250
Motors	Main spindle motor	kW	7.5	7.5	7.5
	Rapid traverse motor	kW	0.3	0.3	0.3
	Coolant pump motor	kW	0.125	0.125	0.125
Thread	Metric thread grade/range	mm	52/1-24	24/1-14	24/1-14
	Inch thread grade/range	T.P.I.	40/2-28	40/2-28	40/2-28
Dimensions	Width x Height	mm	1360X1480	1360X1555	1360X1555
	Length	mm	3657/5157	3657/5157	3657/5157
Weight	N.W./G.W.	T	3.8/4.6	4.2/5.05	4.3/5.15
