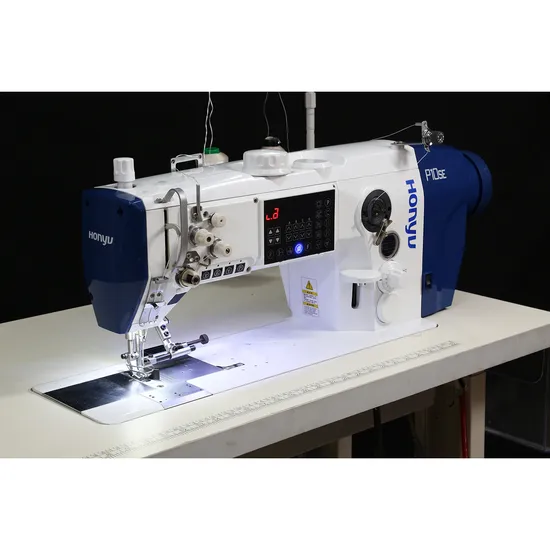

P10SE-130742 Direct drive,car seats sofa leather compound feed digital sewing machine

P10SE-130742 Direct drive,car seats sofa leather compound feed digital sewing machine

US$1.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
P10SE-130742
Condition
New
Certification
CE
Application Place
CE
Applicable Thickness
Thick Material
Drive
Direct drive
Thread Number
Single Thread
Needle Number
Single Needle
Stitch Type
Lock Type
Transport Package
Normal Carton
Specification
1CBM
Trademark
HONYU
Origin
Zhongshan
HS Code
8452211000
Production Capacity
1000pieces/Year

Product Description

Walking foot leather industrial sewing machine, flat bed sewing machine
P10SE-130742 Direct drive, single needle binding compound feed sewing machine
Model No. P10SE-130742
Feeding system Alternating presser foot, feed dog and needle feeding
Max sewing speed 3000 s.p.m
Shuttle diameter Ф32mm
Applied needle DP×17 #18-#23
Needle quantity 1
Thread size Maximum thread 12 strands nylon
Max stitch length 9mm
Max alternating presser foot 9mm
Max presser foot lifting height 20mm
Auto trimming
Auto back tacking
Presser foot lifting height by air
Auto oil system
HP function
Halving positioning device -
Operation space 351×125mm
Multi-grade adjustable LED light
Electronic handwheel
LED touchscreen 5.1 inch
Halving positioning device -
Function related can be set
Double stitch length switch quickly
Pneumatic compensation thread clamp

Product Description
1.Single needle platform compound feeding sewing machine.
2.Equipped with XXL hook(Ф32mm),standard automatic thread trimming device,the remaining thread tail length after thread trimming is about 15mm,with functions such as automatic back tacking and automatic foot lifting.
3.Typical application areas:Abutted seam and decorative topstitch in the automotive industry.
Needle gauge can be set
P10SE double needle series adopts metric needle gauge group,6mm, 8mm, 10mm and 12mm various specifications are available.
Larger operation space
351*125mm, the larger operation space facilitated the handling of large-area workpiece.
Pneumatic presser foot lifting
The lifting height of the presser foot can be up to 20mm,which is convenient and quick to place the sewing material.
XXL large hook
P10SE series is equipped with XXL large hook as standard.The diameter of bobbin is 32mm.Compared with the first generation of HONYU,the capacity of thread is increased by 47%,the frequency of bobbin changing is effectively reduced.
HP function
1.Transform the maximum presser foot alternating amount 9mm by one-click.
2.When the sewing reaches the position between up and down step,pressing the DL switch can transform instantaneously maximum internal and external presser foot alternating amount,it will form a perfect stitch.
Typical Field of Application
It's applied in normal sewing for car seat interiors and soft furniture like sofa.
