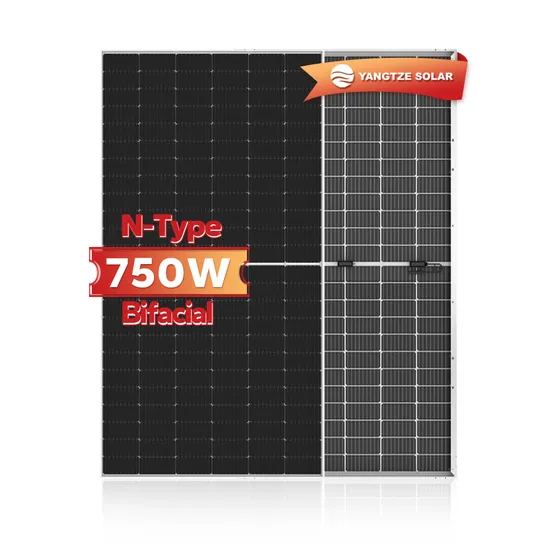

700W 750W Bifacial N-Type PV Solar Panel with Half Cell and Hjt Topcon Double Glass Technology
| US$60.00-105.00 | 30 Pieces (MOQ) |
Basic Info.
Model NO.
YS750M-132
Number of Cells
132PCS
Application
Industrial
Condition
New
Certification
ISO, CE, TUV, Cec, IEC61215, IEC61730
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP67 Waterproof
Solar Cell
Mono 210*210mm Cell
Front Cover
3.2mm High Transmission Low Iron Tempered Glass
Connector
Mc4 Compatible Connector
Backsheet Color
White or Black or Transparent
OEM Order
Acceptable
Frame Color
Silvery or Black
Weight
35kg
Transport Package
by Carton & Pallet
Specification
2400*1303*35mm
Trademark
Yangtze Solar
Origin
China
HS Code
8507200000
Production Capacity
500000 Piece/ Years
Product Description
Details
| Model Type | YS710M-132 | YS720M-132 | YS730M-132 | YS740M-132 | YS750M-132 |
| Rated Maximum Power at STC | 710W | 720W | 730W | 740W | 750W |
| Maximum Power Voltage (Vmp) | 40.48V | 40.86V | 41.04V | 41.34V | 41.52V |
| Maximum Power Current (Imp) | 17.54A | 17.62A | 17.78A | 17.9A | 18.06A |
| Open Circuit Voltage ( Voc) | 45.55V | 45.85V | 46.15V | 46.45V | 46.75V |
| Short Circuit Current (Isc) | 18.45A | 18.54A | 18.66A | 18.79A | 18.92A |
| Module Efficiency | 22.85% | 23.17% | 23.5% | 23.82% | 24.14% |
| Working Conditions&Working Conditions | |||||
| Operating Temperature | -40°c~+85°c | ||||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) | ||||
| Maximum Series Fuse | 25A | ||||
| Power Tolerance | 0~+5W | ||||
| Temperature Coefficient of Pmax | -0.35%/°c | ||||
| Temperature Coefficient of Voc | -0.29%/°c | ||||
| Temperature Coefficient of Isc | +0.048%/°c | ||||
| STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5 | |||||
| NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S | |||||
Factory
***** Factory Introduction *****
♦ Founded in 1994 , 300MW solar panel production capacity ,solar panel power range 3watt to 510watt for both polycrystalline and monocrystalline solar panel
♦ 10 years total workmanship and materials warranty , 10 years for at least 90% and 25 years for 80% linear power output warranty
♦ 100% EL test before package and shipping
♦ Two factories , solar panel factory , battery factory
♦ Cooperated with world famous big companies like Jinko Solar , SMA ,Tesla , HUAWEI
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
Packages
Certificate
Visiting and Exhibition
feedback
