Universal Automatic Feed Radial Arm Drilling Machine Ctyb32

Product Description

MODEL	CTYB32
Maximum drilling diameter	Casting 32mm Steel 25mm
Distance from spindle centerline to column busbar	330~830mm
Spindle travel	140mm
Spindle hole taper	MT4
Distance from spindle end face to base work surface	20~820mm
Spindle box rotation angle	360°
Spindle rotation angle around column	360°
The rotation angle of the main axis around the horizontal line perpendicular to the column	360°
Spindle speed	175 425 687 960r/min
Spindle feed speed and number of stages	0.07 0.15 0.24mm/r (Level 3)
Cross arm motorized lifting speed	1.3m/min
Workbench area	600×520mm
Main motor	1.5KW
Lift motor	550W
Machine tool dimensions (length × width × height)	1770×815×2130mm
Machine tool net weight	950kg

Features
This machine tool can drill, ream, countersink and tap workpieces in any direction. It is suitable for small batch production and processing of large and heavy parts in assembly and repair workshops. There are four adjustable supports and four rollers installed under the base for easy movement. The cross arm can be raised and lowered quickly, and the operation is light and flexible.
Size/Weight
The appearance/package size of the product is measured manually, and there is a small error. It is normal, and the specific object shall prevail.
CTYB32 machine size 1770×815×2130mm
CTYB32 machine net weight 950kg
Hydraulic forklifts or cranes are recommended for handling

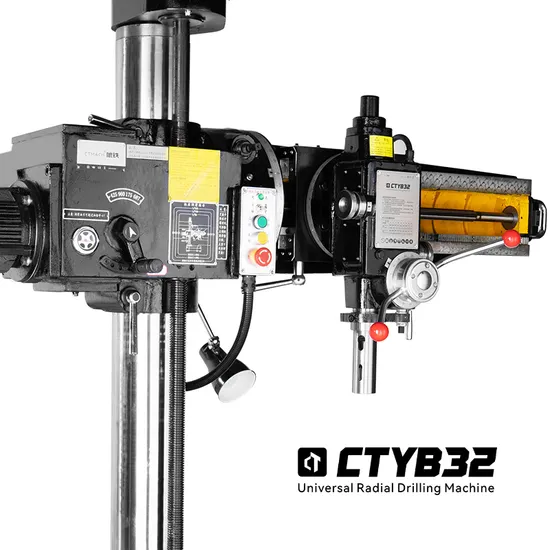

Product display
Details introduce
Standard Accessories(Attached in Machine)
