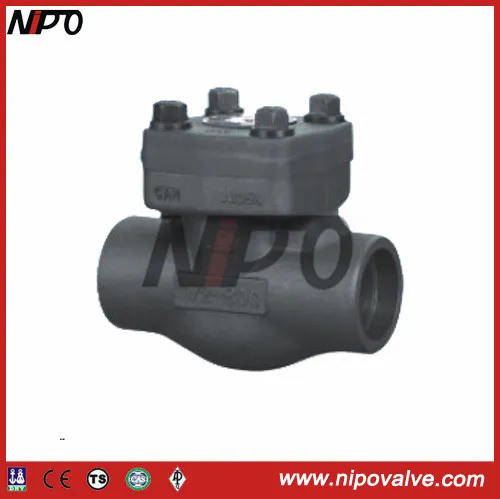

Forged Steel Socket Weld Lift Check Valve

Product Description

Forged Steel Socket Weld Lift Check Valve
Product DescriptionStandards:
1. Full Open Swing Check Valve or Lift/Piston Check Valve
2. Body structure in forged steel body, cast steel body, cast iron bo
3. Standard availabe in API 6D, BS1868, JIS, DIN, Testing Standard API 598/API 6D, Pressure & Temperature: ASME B16.34
4. Fitted available: With Counter Weight, Hammer, external lever
5. Sealing: Soft/Resilient Seated, Metal to metal seat
6. Flange RF,FF/BW/NPT/Screwed/Threaded: ASME B16.5, ASME B16.25, EN 1092, AS 2129 T/D, AS 2129 T/E, BS10, ASME B1.20.1, B16.11

Applications:
1.Chemical, Refinery Plant
2.Gas Purification Plant
3.Power Station, Shipbuilding
4.Recycling Facilities

Product Name	Forged Steel Lift Check Valve
1. Material	A105, F304, F316, F11, F22, F5,F304L,F316L
2. Size	1/2''~3'' ( DN15~DN80)
3.Certificate	ISO9001 & CE
4. Port	Full Port
5. Working Pressure	800LB~1500LB
6. Connection Ends	Thread, Socket Welded
7. Working Temp.	-20~450ºC
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Seal	Metal or NBR
10. Operated	Automatic
11. Inspection & Testing	According to API598
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Warranty	18 Months after leaving factory
Advantage	OEM/ODM is applicable
Others	We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer

PRODUCT :
WORKSHOP
INSPECTION
FAQ:
Q:Why choose us ?
A: we are a manufacturer, we have been manufacturing check valve more than 20 years.
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.

Q:Can we print our logo on your products?
A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.

Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.
