Twin Shaft Js1000 1m3 Volume Cement Mixer
| US$11,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JS500-3000
Type
Concrete Mixer
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Steel Structure
Productivity
60m²/h
Feeding Height
3800mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Discharge Way
Hydraulic
Mixing Power
37kw
Reclaiming Capacity
1000L
Mixing Star* Mixing Blade (Qty)
2*4
Transport Package
Nude
Specification
standard size
Trademark
XINTU
Origin
China
HS Code
847431
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
8000.000kg
Product Description

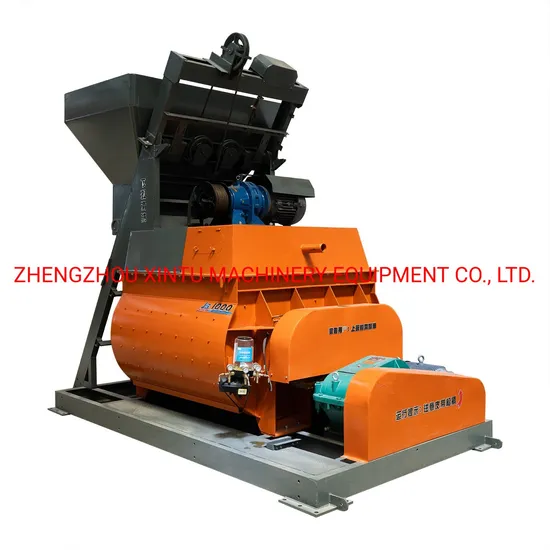

Brief Introduction of Twin Shaft Concrete Mixer:This JS series twin shaft concrete mixer is compulsory type with main components of feeding system(skip hopper), mixing bowl, discharging system, water supply system and electrical system. It is widely used for small or medium scale concrete batching plant to produce commodity concrete.
Features & Benefits of Twin Shaft Concrete Mixer: 1.The high hardness Mn-steel makes the liner and blade have long working time.
2.With the new designed mixing system, it can work more steady and efficiency.
3. Easy for operating & maintaining, saving more cost.
4. Discharge height can us special designed.
parameters of bucket type twin shaft Concrete Mixer:
| Parameter Model | JS500 | JS750 | JS1000 | JS1500 | |
| Item | |||||
| Discharge volume | 500L | 750L | 1000L | 1500L | |
| Charging volume | 800L | 1200L | 1600L | 2400L | |
| Theoretical capacity | ≥25m3 | ≥35m3 | ≥50m3 | ≥75m3 | |
| Aggregate sizes | ≤60/80mm | ≤60/80m | ≤60/80mm | ≤60/80mm | |
| Working circle | 60s | 60s | 60s | 60s | |
| Mixing blade | Speed | 35r/min | 30.5r/min | 25.5r/min | 23r/min |
| Quantity | 2×7 | 2×8 | 2×8 | 2×9 | |
| Mixing motor | Model | Y180M-4 | Y200L-4 | Y225S-4 | Y225M-4 |
| Power | 18.5 kw | 30 kw | 37 kw | 45 kw | |
| Lifting motor | Model | YEZ132S-4 | YEZ132M-4 | YEZ160L-4 | YZE180M-4 |
| Power | 5.5 kw | 7.5 kw | 11 kw | 18.5 kw | |
| Pump motor | Model | 50DWB20-8A | 65DWB35-5 | KQW65-100 | KQW65-100 |
| Power | 0.75 kw | 1.1 kw | 3 kw | 3 kw | |
| Weight | 1500kg | 6150kg | 9880kg | 10960kg | |
| Dimensions (L x W x H) | 3030x2300x2680 mm | 4550x2250x2450 mm | 4640x2250x2250 mm | 5058x2250x2440 mm | |
This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.
