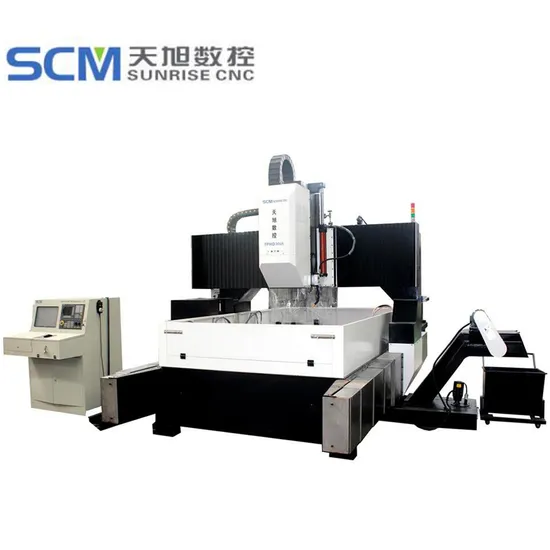

China Top Manufacturer for High Speed Drilling Milling Machine for Flange and Steel Plates

Product Description

Product Description

Applicable Industry: Mainly used for drilling tube plate, clapboard, flange and large plate in petrochemical, boiler, wind power, flange industries and also for connection plates in building, bridge, heat exchange, iron tower industries.
Product feature:
1. The machine consists of work table, gantry, slide carriage, power head, CNC system, cooling chips discharge system etc.
2. The machine works in mode of work table being fixed and gantry moving.
3. The gantry and work table are weld assembly, which was high temperature annealed before processing, was annealed again after half finished machining to remove stress, then finished machining so that ensure stable precision.
4. The machine has 3 numeric control axes; The gantry can make longitudinal movement along the guide(X axis); the power head can make lateral movement along the guide (Y axis).
5. The power head spindle is precision spindle of Taiwan KENTURN , which is driven by special frequency conversion motor and can make stepless speed regulation according to needs. The spindle is BT50 taper hole. The drilling head, reamer or milling cutter can be installed by splice bar. The spindle box has a loose cutter cylinder (air and hydraulic pressure) for easily changing cutters. It also can equip with cutter inter-cooled splice bar to realize high speed cutting.
6. The chip cleaner equipped beside of work table can discharge chips automatically. The drilling use water cooling with the system of cooling liquid providing, recycling, circulating and filtrating.
7. Numerical control uses FAGOR8055 system, with RS232 connector and LED monitor.
8. Protective covers are equipped for X/Y axis guides and lead screw of the lathe. Iron sheet cover is for X axis, and organ-protective cover for Y axis.
9. For ensuring the reliability of the machine, the key components use high quality imported products. See the main spare parts list for details.
Specification

Parameter Name	Item	Parameter Value
Max. size	L X W	3000X3000mm
Max thickness		250mm
Work table	Width of T slot	28/500mm
Vertical slide type drill head	Quantity	2
	Main spindle taper hole	BT50
	Max drill diameter(common carbon steel)	φ40mm(carbide drill)
		φ50mm(high speed twist drill)
	Main spindle speed	30-3000r/min
	Motor power of spindle	22kW
	Distance between spindle tip to work table	300-800mm
(X axis) Gantry longitudinal move	Max. stroke	3000mm
	Moving speed of X axis	0-8m/min
	Servo motor power of X axis/torque	3kW/28.4Nm
(Y axis) Power head transversal move	Max stroke	3000mm
	Moving speed of Y axis	0-8m/min
	Servo motor power of Y axis/torque	3kW/28.4Nm
(Z axis) Vertical slider feeding	Stroke of Z axis	500mm
	Feeding speed of Z axis	0-5m/min
	Servo motor power of Z axis/torque	3kW/28.4Nm
Positioning accuracy	X/Y axis	≤0.10mm/ Full length
Repositioning accuracy	X/Y axis	≤0.05mm
Hydraulic system	Hydraulic pump pressure/flow rate	6.5MPa /25L/min
	Hydraulic pump motor power	3kW
Pneumatic system	Compressed air pressure	≥0.4MPa
Chip cleaning and cooling	Chip cleaner type	Plate chain type
	Chip cleaner no.	1
	Chip cleaning speed	1m/min
	Chip cleaner motor power	0.75kW
	Motor power of inner cooling water pump	3kW
	Motor power of Outer cooling water pump	0.75kW
Automatic lubricating system	Lubrication pressure	2MPa
	Lubrication point oil injecting amount	0.1mL
	Lubrication period	6-10min
Electric system	CNC system	FAGOR8055
	CNC axis NO.	6
Whole power of motors		Approx. 75kW
Overall size	LxWxH	Approx. 6200X6100X3600mm
Weight	Approx. 40t

Detailed Photos

After Sales Service
Installation:
The seller shall send one engineer to the buyer's country for installation, commissioning and training. The buyer is responsible to provide all necessary equipments for handling and lifting the machine parts before seller's engineers go to the buyer's plant. In addition, the buyer should provide workers to support in installation activities, under supervision from the seller's engineers.

Commission:
The Supplier should give drawings and other details of material/preparation required for installation of machinery which the buyer has to prepare and keep ready before the machine arrives at the buyer's factory. Installation and commissioning can be finished within 5-10 days for above machine generally.

Training:
Training will include training on computer programming, machine operation and troubleshooting. The training time is at most 5 days for this machine.
The buyer should arrange no less than two people for accepting training. After training, the buyer should sign the "Receiving & Inspection Report" supplied by the seller to demonstrate the successful finish of commissioning and acceptance of the buyer.
