X6332 3 Axis Dro Manual Variable Speed Auto Feeding Powerful Turret Head Metal Milling Machine for Sale

Product Description

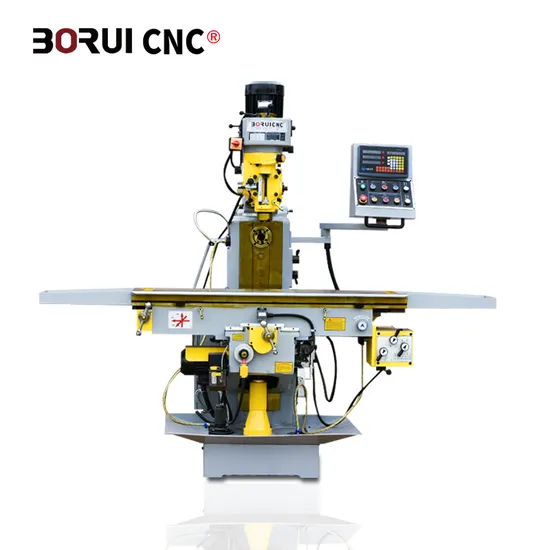

X6332 Hobby Universal Vertical Turret Milling Machine Variable Speed
Product Description
The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360°on the machine bed, for the processing range can be greater than the table size.
The speed of milling head is rather high and it makes the machine especailly good working with small cutters.
This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing. The main feature :
2.Hardening treatment,rectangular guide way
3.Optional High speed turret milling head, high precision
4.The structure of rectangular guide rail, the machine itself is more stable, more accurate.
5. X6332C milling machine with turret milling head

The main specification :

Specification	X6332B	X6332C
Spindle taper	7:24 ISO40 Vertical	NT40 Vertical
	NT 40 Horizontal	NT 40 Horizontal
Milling head tilt (left/right)	90°	90°
Spindle travel (mm)	127	127
Spindle speeds range (r.p.m)	115-1750	66-4540(vertical 16 step)
	40-1300 (horizontal 12 step)	40-1300 (horizontal 12 step)
Distance from spindle to column(mm)	180-630	180-630
Distance from spindle to work table (mm)	130-550	130-550
Arm travel (mm)	450	450
Rotary arm	360°	360°
Table size (mm)	1500x320	1250x320
Max. travel of table (mm)	600x300x420	800x300X420
T-slot number width distance (mm)	3/14/70	3/14/70
Max load weight (kg)	350	350
Main motor power (kw)	2.2 Vertical	2.2 Vertical (optional:3.7)
	2.2 Horizontal	2.2 Horizontal
Motor of table power feed (w)	750	750
Up/down motor of head stock(Kw)	1.1	1.1
Cool ant pump motor (w)	40	40
Packing size(mm)	1550x1650x2200	1600x1650x2200
N.W/G.W(kg)	1500/1700	1700/1900

Standard accessories: Optional Accessories:
1.Drill chuck 1.DRO on X, Y, Z--AXIS
2.Mill chuck 2.Clamping kit
3.Inner hexagon spanner 3.Universal dividing head
4.Work light 4.Rotary work table.
5.Reduction sleeve
6.Draw bar
7.Spindle arbor
8.wrench
9.Machine vice
10.Horizontal milling arbor
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
