OEM Custom Medical Diagnosis Equipment Bt-200 Fully Automatic Biochemical Analyzer

Product Description

Product Description

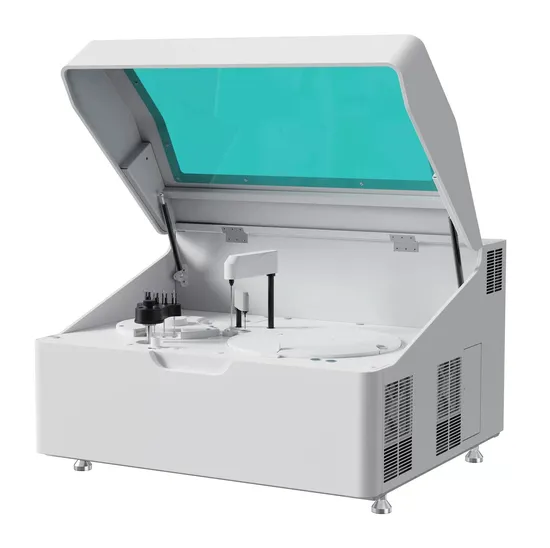

BT-200 AUTOMATIC BIOCHEMICAL ANALYZER
The fully automatic biochemical analyzer developed, produced, and integrated by Shandong Lifei Biological Group, is an instrument used for detecting and analyzing biochemical substances in hospitals. It is mainly used to measure specific chemical components in body fluids. It is widely applied in various hospitals, epidemic prevention stations, family planning service stations, and other places for routine biochemical tests. With a fast measurement speed, high accuracy,y and low consumption of reagents, its combined use can greatly improve the efficiency of routine biochemical tests.
Product Parameters

BT-200 AUTOMATIC BIOCHEMICAL ANALYZER
System Type	Desktop	Sample Type	Serum, Urine, Gastric Juice, Cerebrospinal Fluid, Pleural Effusion, Etc.
Test Speed	Constant Speed 200T/H	Sample Size	2μL-35μL, 0.1μL Step
Reagent Position	40 Reagent Positions	Colorimetric Cup	UV Plastic Cups, 56 Pcs
Reagent Volume	20~350μL, 0.5μL Step	Reaction Plate Temperature System	Solid Direct Heating, Air Bath, 37ºC±0.1ºC
Light Source	Long-Life Halogen Lamp, Clustered Spotlight	Test Wavelength	340~800Nm, 12 Wavelengths Simultaneous Photometric Acquisition And Processing
Reagent Storage Temperature	4~12ºC, Real-Time Display By Software	Light Source Cooling Method	Air Cooling
Liquid Level Sensor	Digital Liquid Level Sensing, Volume Tracking, Anti-Collision Function	Spectroscopic System	Holographic Concave Flat Field Grating, Post-Spectral
Sample Position	40 Sample Positions	Absorbance Range	0~3.3Abs

Index		Parameter
Basic info	Wavelength Range	12 Wavelength can be tested simultaneously by the concave-holographic image flattening-grating optical system
	Reaction Temp	37ºC. Solid direct-heating method
	Temp Accuracy	±0.1ºC. Precise control with the PID technology.
	Testing Projects	Up to 80 colorimetry projects, and 3 ion testing projects
	Testing Method	One-point/two-point terminal method, two-point rate method, rate A method
	Testing Speed	200 regular tests per hour, and 300 ion tests per hour (Na/K/Cl)
Sample &Reagent System	Sample&Reagent Plate	Using the same plate for both sample and reagent
	Reagent Site	80
	Reagent Volume	10~300μL, 0.5μL per step
	Reagent Bottle volume	20mL, 35mL, 70mL
	Storage Temp	2~12ºC, also be customizable
	Sample Site	40 All sites can be set as regular, emergency, calibration and QC
	Sample Container	Suitable for φ13 sample tube and 2mL standard tube
	Sample Type	Serum, whole blood, urine, gastric juice, cerebrospinal fluid, hydrothorax and ascite
	Sample Volume	2~30μL, 0.1μL per step
	Liquid Level Sensor	Digital sensor with anti-collision function
	Barcode Recognition System	Optional equipping built-in barcode recognition module
Data System	Interface	RJ45 Ethernet interface
	Computer	Optional equipping the computer and monitor
	LIS System	Available for LIS/HIS connection
Diagnostic System	Cuvette Type	Quartz
	Cuvette Light Path	5mm
	Reaction Cuvette Sites	56
	Reaction Volume	100~360μL
	Light Source	20W/12V Long lived quartz halogen tungsten lamp with air cooling system
	Absorbance linear range	0~3.6Abs
	ontamination Rate	<0.1%
	Quality Control	Manual and automatic processing the linear and nonlinear calibration; two-concentration method for the real-time QC, intra-day QC, cross-day
	Auto Flushing	Automatically washing the reaction cuvette
	Mixture System	Separately mixture after adding the reagent
Instrument Parameters	Weight	≈100Kg
	Dimension	820*716*506mm (L×W×H)
	TDP	500VA

Recommend For You
BT-200 AUTOMATIC BIOCHEMICAL ANALYZER
System Type: Desktop
Sample Type: Serum, Urine, Gastric Juice, Cerebrospinal Fluid, Pleural Effusion, Etc.
Test Speed: Constant Speed 200T/H
Sample Size: 2μL-35μL, 0.1μL Step
Reagent Position: 40 Reagent Positions
Colorimetric Cup: UV Plastic Cups, 56 Pcs
Reagent Volume: 20~350μL, 0.5μL Step
Reaction Plate Temperature System: Solid Direct Heating, Air Bath, 37ºC±0.1ºCBT-600 AUTOMATIC BIOCHEMICAL ANALYZER
System Type: Fully Automatic Discrete, Emergency Automatic Priority Testing
Sample System Level Sensor: Digital Liquid Level Sensing, Volume Tracking, Intelligent Needle Blockage Detection And Anti-Collision Function
Test Speed: Constant Speed 600T/H
Colorimetric Cup: 6mm Optical Diameter, 6 Groups, 120 Pieces In Total
Reagent Position: Double Reagent Tray, 45 Reagent Positions Per Reagent TrayBT-800 AUTOMATIC BIOCHEMICAL ANALYZER
System Type: Fully Automatic Discrete, Emergency Automatic Priority Testing
Sample System Level Sensor: Digital Liquid Level Sensing, Volume Tracking, Intelligent Needle Blockage Detection And Anti-Collision Function
Test Speed: Constant Speed 800T/H
Colorimetric Cup: 5Mm Optical Diameter, 8 Groups, 160 Pieces In Total
Reagent Position: Double Reagent Tray, 45 Reagent Positions Per Reagent Tray
Colorimetric Cup: UV Plastic Cups, 160 PcsBT-1000 AUTOMATIC BIOCHEMICAL ANALYZER
System Type: Vertical, orbital injection
Sample Type: Serum, urine, gastric juice, cerebrospinal fluid, pleural effusion, etc.
Test Speed: 1000T/h
Sample Size: 1.5μl-35μl, 0.1μl step
Reagent Position: Double reagent tray, 45 reagent positions per reagent tray
Colorimetric Cup: UV plastic cups, 160 pcs
Reagent Volume: 10~350μl, 1μl step
Reaction Plate Temperature System: Water bath, 37ºC±0.1ºCEMERGENCY BIOCHEMICAL IMMUNE INTEGRATED MACHINE
The biochemical immune integrated machine includes an automatic sampling module, a biochemical module, and an immune module, with an optimized design, compact structure, and small footprint.
Injection Module:
Can hold 4 sample baskets, and 100 samples can be tested at the same time.
Biochemical Module:
400-600 tests/hour, 90 reagent positions, special sample injection needle design, supports rapid plasma testing and supports urine biochemical projects.FULLY AUTOMATIC PHOTOEXCITED CHEMILUMINESCENCE IMMUNOASSAY ANALYZER
The photoluminescence method is used for detection. This method is free of separation, and the whole machine has a liquid-free design, fast reaction and detection speed, and low failure rate.
The whole machine includes functions such as sample addition, reagent addition, incubation, and detection, realizing fully automatic sample addition and detection.200 SPEED SPECIFIC PROTEIN ANALYZER
* Immunoscattering turbidimetry technology can quickly and accurately detect specific protein content
* Intelligent cloud platform, which can realize remote operation, intelligent management, convenient and fast
* Support multiple sample types, one-click operation, fully automatic detectionQ-120 AUTOMATIC BLOOD CULTURE INSTRUMENT
Specimen Collection: Negative pressure quantitative blood sampling
Training Method: Constant temperature shaking culture
Inspection Methods: Both fluorescence (instrument detection) and bottle bottom color development (liquid emulsion sensing technology) are used
Detection Time: The photoelectric element of the detection hole receives and feeds back to the PC system. The system reads once per minute (gets 1 value), and 10 values form 1 point.Our Advantages
