Horizontal Corrugated Roof Transverse Press Arc Molding Aluminium Roofing Sheet Making Machine

Product Description

Product Description

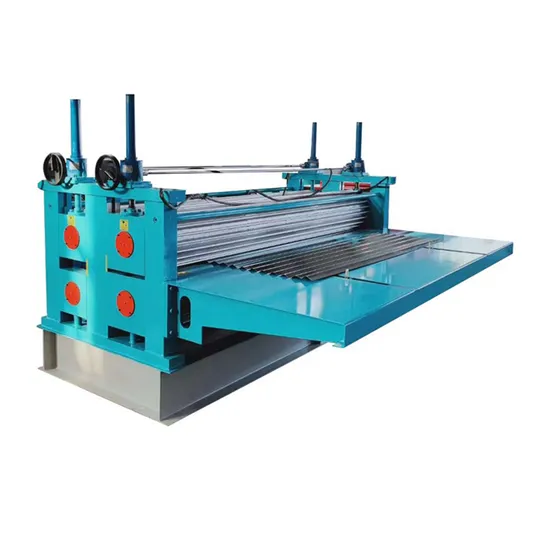

Metal thin barrel corrugating machine
Metal thin barrel corrugating machine is a kind of metal sheet roll forming machine that specialized to roll forming thin corrugated sheet .
It's thickness range about 0.13-0.5 mm and will have a little difference due to the material hardness .
Machine speed about 10-15 pcs / min.On the one side of the machine,have button to control the speed.
To feeding material , there has a feeding table can running,and have two stopper to push the material automatically.
The material width range is 750-1200 mm , the machine usually have 3.6 m ,5 m ,6m standard type ( horizontal distance ).
Other size can be customized . To make a accurate quotation , you need to provide material hardness and exact profile drawing . If you don't have profile drawing , we can give you suitable suggestions !
Product Parameters

Machine Dimension	1400mm×950mm×750mm
Power	1.5kw
Number of forming rows	5 rows
Spacing	210mm
Depth	23mm
Effective Width	840mm
Sheet thickness	Below 1.0mm
Roll material of bending machine	45# steel , hardness hr 55°- 57°
Weight	About 550Kg
Shaft diameter	¢70 solid shaft
Rectifying deviation	Rubber shaft control at feeding port to prevent deviation
Bending arch	Adjustable as required

Detailed Photos


Other product links

Company Profile

Certifications

Packaging & Shipping

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
